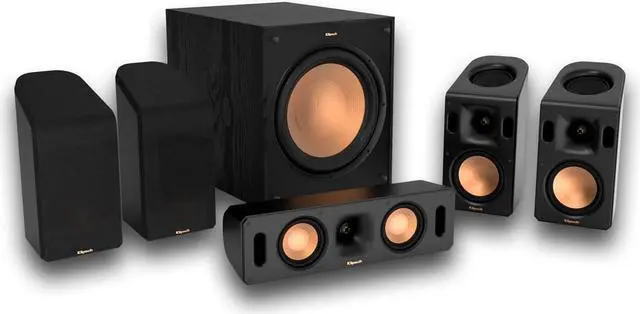

Klipsch Reference Cinema System, Black with TX-NR7100 9.2-Channel AV Receiver
- The Klipsch Reference Cinema System 5.1.4 with Dolby Atmos combines Reference Series acoustics with Dolby Atmos technology
- Featuring four satellite speakers outfitted with Dolby Atmos technology
- Connecting easily to your A/V receiver, this compact system is perfectly tuned for maximum impact
- Ideal for movies, music, and gaming, Dolby Atmos brings sound to life from all directions, including overhead
- Our exclusive Tractrix horn technology delivers an impressive high-end response and greater extension, enhanced imaging and powerful dynamics
- Aluminum tweeters with Linear Travel Suspension (LTS) minimize distortion for enhanced, detailed sound and have long been a hallmark of our Reference Series product lines.
- Injection Molded Graphite (IMG) woofers are exceptionally light and extremely rigid
- The dual port design provides improved cabinet tuning and low frequency response for impactful bass performance
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Frequency Response 90Hz-20kHz (+/- 3dB)
Sensitivity 92 dB @ 2.83V / 1M
Power Handling (Cont/Peak) 75W/300W
Nominal Impedance 8 ohms compatible
Crossover Frequency 2000Hz
High Frequency Driver 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix Horn
Low Frequency Driver 5.25" Spun-Copper IMG Woofer
Inputs Single Gold Plated Binding Posts
Enclosure Type Bass-Reflex via dual front-firing ports
Mounting 1/4" x 20 Threaded Insert
Dimensions (H x W x D) 13.47 x 6.47 x 7.45" ( 342.1 x 164.3 x 189.2 mm)
Weight 8.2 lbs ( 3.72 kg)
Satellite
Frequency Response 80Hz-20kHz (+/- 3dB)
Sensitivity 91 dB @ 2.83V /1M
Power Handling (Cont/Peak) 75W/300W
Nominal Impedance 8 ohms compatible
Crossover Frequency 1800Hz
High Frequency Driver 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix Horn
Low Frequency Driver Dual 4" Spun-Copper IMG Woofers
Inputs Single Gold Plated Binding Posts
Enclosure Type Bass-Reflex via dual front-firing ports
Mounting Dual 1/4" x 20 Threaded Insert
Dimensions (H x W x D) 5.16 x 17.70 x 6.07" ( 131.1 x 447 x 154.2 mm)
Weight 7.4 lbs ( 3.36 kg)
Center
Power Handling (Cont/Peak) 40W/160W
Nominal Impedance 8 ohms compatible
Driver 4" Polyfiber Woofer
Enclosure Type Acoustic Suspension
Inputs Single Gold Plated Binding Posts
Height Channel
Frequency Response 32Hz - 120Hz +/- 3dB
Maximum Acoustic Output 112 dB
Amplifier All Digital
Amplifier Power (Cont/Peak) 150W/300W
Amplifier Features Volume, Low-pass, 0/180 phase, Auto Power On
Driver Components 10" high excursion spun-copper IMG woofer
Enclosure Material MDF
Enclosure Type Bass-Reflex via rear-firing port
Inputs Line level/LFE RCA jacks
Dimensions (H x W x D) 14.5 x 12.5 x 16.4" (368 x 318 x 417mm)
Weight 24 lbs ( 10.9 kg)
Sensitivity 92 dB @ 2.83V / 1M
Power Handling (Cont/Peak) 75W/300W
Nominal Impedance 8 ohms compatible
Crossover Frequency 2000Hz
High Frequency Driver 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix Horn
Low Frequency Driver 5.25" Spun-Copper IMG Woofer
Inputs Single Gold Plated Binding Posts
Enclosure Type Bass-Reflex via dual front-firing ports
Mounting 1/4" x 20 Threaded Insert
Dimensions (H x W x D) 13.47 x 6.47 x 7.45" ( 342.1 x 164.3 x 189.2 mm)
Weight 8.2 lbs ( 3.72 kg)
Satellite
Frequency Response 80Hz-20kHz (+/- 3dB)
Sensitivity 91 dB @ 2.83V /1M
Power Handling (Cont/Peak) 75W/300W
Nominal Impedance 8 ohms compatible
Crossover Frequency 1800Hz
High Frequency Driver 1" Aluminum LTS Tweeter Mated to a 90x90 Tractrix Horn
Low Frequency Driver Dual 4" Spun-Copper IMG Woofers
Inputs Single Gold Plated Binding Posts
Enclosure Type Bass-Reflex via dual front-firing ports
Mounting Dual 1/4" x 20 Threaded Insert
Dimensions (H x W x D) 5.16 x 17.70 x 6.07" ( 131.1 x 447 x 154.2 mm)
Weight 7.4 lbs ( 3.36 kg)
Center
Power Handling (Cont/Peak) 40W/160W
Nominal Impedance 8 ohms compatible
Driver 4" Polyfiber Woofer
Enclosure Type Acoustic Suspension
Inputs Single Gold Plated Binding Posts
Height Channel
Frequency Response 32Hz - 120Hz +/- 3dB
Maximum Acoustic Output 112 dB
Amplifier All Digital
Amplifier Power (Cont/Peak) 150W/300W
Amplifier Features Volume, Low-pass, 0/180 phase, Auto Power On
Driver Components 10" high excursion spun-copper IMG woofer
Enclosure Material MDF
Enclosure Type Bass-Reflex via rear-firing port
Inputs Line level/LFE RCA jacks
Dimensions (H x W x D) 14.5 x 12.5 x 16.4" (368 x 318 x 417mm)
Weight 24 lbs ( 10.9 kg)
