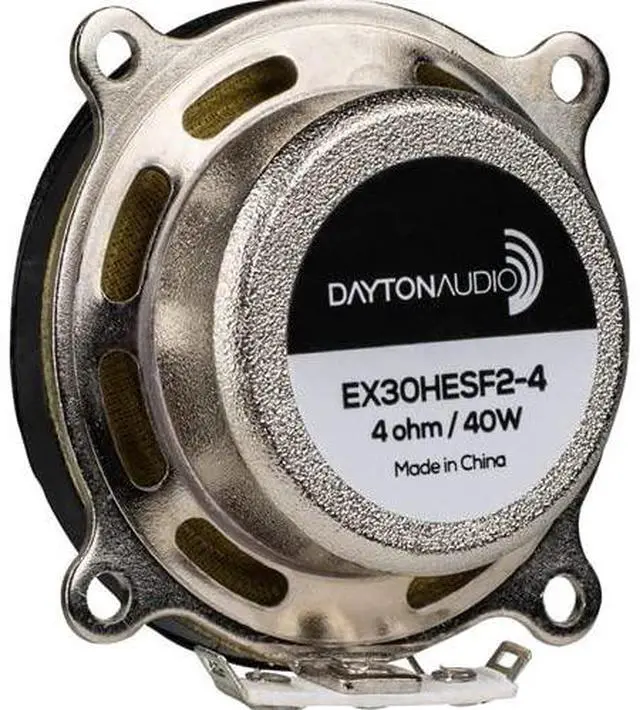

EX30HESF2-4 High Efficiency Steered Flux 2-Hole Exciter 30mm 40W 4 Ohm

Quick Overview The EX30HESF2-4 30 mm steered high flux exciter is one of the most powerful in the line of exciters, capable of handling up to 40 watts. A pre-attached 3M VHB adhesive ring and 2-hole mounting system combines with four screw-down mounting tabs for maximum energy transfer. Product Highlights - Small size; just under 2" diameter - Interchangeable mount allows you to A/B test different exciters - Rare-earth neodymium motor and a proprietary voice coil - High output exciter design handles up to 40 watts RMS - Easily swap non-functional units out in the field - 4-ohm impedance for use with small, Class D amplifiers - Pre-applied 3M VHB adhesive for quick, durable installation EX30HESF2-4 High Efficiency Steered Flux Interchangeable Hardware Mount Exciter 30mm 40W 4 Ohm Test the limits of your imagination and turn any surface into a great sounding speaker system.

Surface exciter technology provides a universal, cost-effective alternative to loudspeakers, allowing for sound reproduction virtually anywhere it is desired. Issues such as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter. Interchangeable Mount exciters may be used in a host of DIY executions to easily add sound to an existing non-audio specific project or create a portable speaker system. The unique mounting system allows you to try out the assortment of exciters offered.
Key Specs: -
Power Handling (RMS): 40 Watts -
Power Handling (MAX): 80
Watts - Impedance: 4 Aural Excitement The DAEX30HESF-4 steered high flux exciter is one of the most powerful. For use with medium sized amplifiers, this steered high flux exciter incorporates a 4 ohm voice coil to extract maximum power. A wide frequency response is permitted due to this exciter's low inductance of only 0.3 mH. A neodymium magnet is employed to create maximum magnetic flux around the proprietary voice coil for increased sensitivity when compared to similar-sized exciters. In turn, this reduces power requirements and makes it possible to use very small audio amplifiers, without sacrificing total output. Exclusive Interchangeable Mounting System With the exclusive interchangeable mounting system, you can try out many different configurations, placements, and exciters to find the best combination for your project. Each exciter comes with a threaded mounting pad that can be permanently installed anywhere.
Installation is easy: simply remove the pad from the exciter assembly, mount the pad to your project with 2 screws or with the 3M Adhesive, and screw the exciter assembly back onto the pad! The non-destructive nature of the interchangeable mount allows you to A/B different exciters or swap non-functional units out in the field without risking damage to your project or exciters. Easily Test Different Exciters Without Re-Mounting With an exclusive mounting design, the Interchangeable Mount Exciters make it easy to swap out and test different exciters. All interchangeable mount exciters take advantage of the same mount to provide an easily swappable configuration. The included mounting hardware fits any of the models in the exciter line, which means that you only have to attach one mount to a surface and swap out different exciters to test performance. Airload (Mms) -- Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) -- Surface Area Of Cone (Sd) -- Volume of Displacement (Vd) -- BL Product (BL) -- Compliance Equivalent Volume (Vas) -- Maximum Linear Excursion (Xmax) -- Drivers Mechanical Losses (Rms) -- Entry / Exit Diameter -- Surround Material -- Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material -- Magnet Material -- Overall Outside Diameter -- Overall Depth -- Baffle Cutout Diameter -- Mounting Hole Diameter -- Bolt Circle Diameter -- Product Weight, as weather, space constraints, vandalism or visibility can be avoided or minimized with the use of a sound exciter
