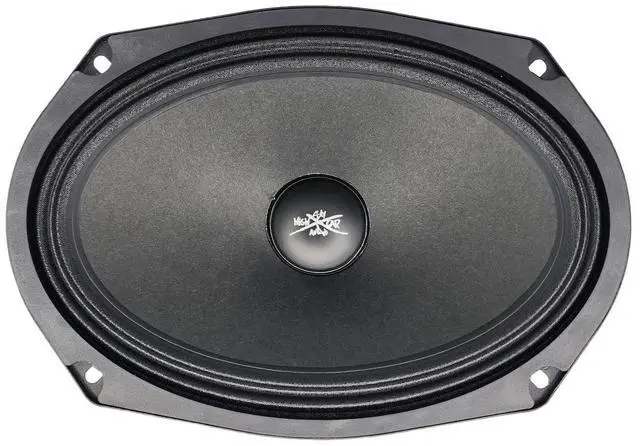

Main image of SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

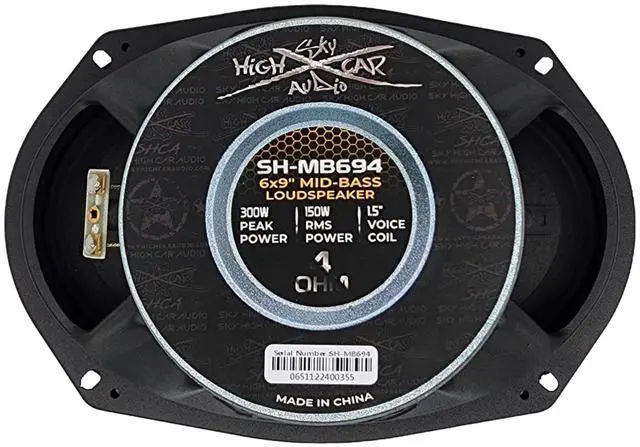

Alt view image 2 of 6 - SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

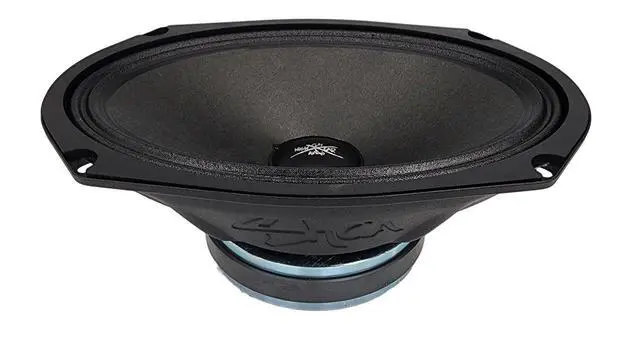

Alt view image 3 of 6 - SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Alt view image 4 of 6 - SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

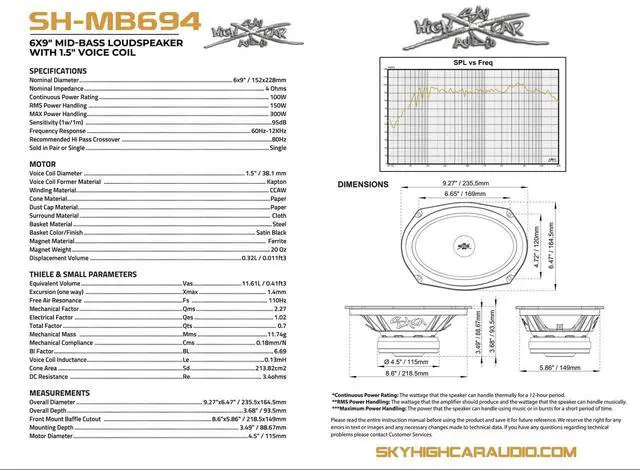

Alt view image 5 of 6 - SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Alt view image 6 of 6 - SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Shop All Generic Logic, Inc. Products | Visit HeYuan Shop Store

SHCA Pro Audio MB694 6x9 Mid-Bass Loudspeaker with 1.5" Voice Coil (Single)

Be the first to review this product...

Ferrite Motor Design: The MB694 features a 20 oz ferrite magnet, delivering a steady magnetic field for precise cone control. The satin black steel basket offers a solid foundation, preserving structural integrity while reducing resonance. Its displacement volume of 0.32L (0.011ft³) makes it a flexible choice for various installation setups. Dimensions and Mounting: Engineered to suit a variety of vehicle applications, the MB694 measures: Overall Diameter: 9.27 x 6.47 / 235.5 x 164.5mm Mounting Depth: 3.49 / 88.67mm Overall Depth: 3.68 / 93.5mm Front Mount Baffle Cutout: 8.6 x 5.86 / 218.5 x 149mm Motor Diameter: 4.5 / 115mm Impedance: 4 Ohms Frequency Response: 60Hz-12KHz RMS Power: 150W *Sold individually*

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Ferrite Motor Design: The MB694 features a 20 oz ferrite magnet, delivering a steady magnetic field for precise cone control. The satin black steel basket offers a solid foundation, preserving structural integrity while reducing resonance. Its displacement volume of 0.32L ( 0.011 ft³) makes it a flexible choice for various installation setups.
Dimensions and Mounting: Engineered to suit a variety of vehicle applications, the
MB694 measures: Overall
Diameter: 9.27 x 6.47 / 235.5 x 164.5 mm
Mounting Depth: 3.49 / 88.67 mm
Overall Depth: 3.68 / 93.5 mm Front
Mount Baffle Cutout: 8.6 x 5.86 / 218.5 x 149mm
Motor Diameter: 4.5 / 115mm
Impedance: 4 Ohms
Frequency Response: 60Hz-12KHz
RMS Power: 150W *Sold individually*
