5MDN38 5-inch Mid Bass Midrange LF Drivers Woofer Cone WP Waterproof Front Side 1.5 in Aluminium Voice Coil 90 Wrms 180 Watts Peak 8 Ohm

FEATURES: This speaker is optimized for mid-to-high frequency clarity, delivering 180W of continuous power through a 38 mm aluminum voice coil. With a wide 175 Hz to 10, 000 Hz range and 97 dB sensitivity, it ensures dynamic sound output. A shorting copper cap improves high-frequency performance by minimizing distortion, making it ideal for precise and articulate audio reproduction.
SPECIFICATIONS: This 5-inch speaker driver delivers efficient mid-to-high frequency performance with 180W power handling, 97 dB sensitivity, and an 8-ohm impedance. It features a 1.5 -inch aluminum voice coil on a glass fibre former, supported by a 0.24 -inch magnetic gap and 1.25 T flux density for accurate control. A waterproof-treated cone enhances durability, making it ideal for rugged audio setups.
PARAMETERS: This speaker driver delivers precise midrange performance with a 175 Hz resonant frequency and a 95 cm² piston area. Its 3.5 mm Xmax and 4 mm Xvar allow for controlled excursion, while the lightweight 8 g moving mass and 11.1 Tm BL factor ensure strong motor force. With a Qts of 0.31 and an EBP of 486 Hz, it's ideal for vented enclosures. Its 2% efficiency, 5.5 -ohm resistance, and 0.4 mH inductance support accurate and responsive electrical behavior.
DESIGN: This speaker features a Triple Roll surround and Exponential cone shape for enhanced excursion and sound dispersion. It uses a Neodymium ring magnet with a Straight Pole design for efficient magnetic control. A Single spider supports cone stability, while the front-side waterproof treatment adds durability for use in challenging environments.

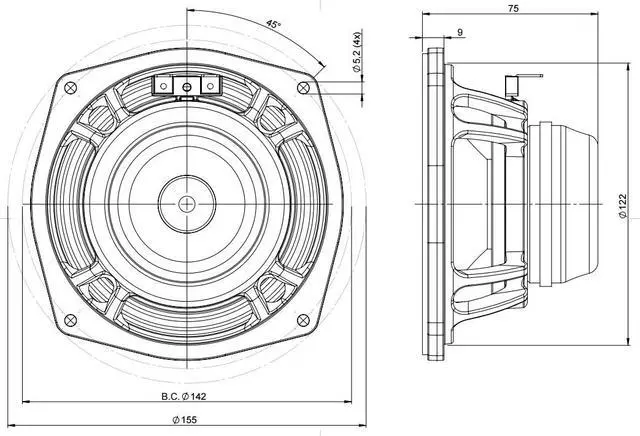

MOUNTING AND SHIPPING INFO: This compact speaker driver measures 6.1 inches in overall diameter with a 4.8 -inch baffle cutout and a 5.6 -inch bolt circle, making it suitable for tight mounting spaces. It has a depth of 2.95 inches and occupies 0.35 dm³ ( 0.01 ft³) of internal air volume. Weighing 2.07 lbs, it ships in a 8.27 × 8.27 × 4.92 -inch box with a total shipping weight of 2.51 lbs, and features a 0.35 -inch flange and gasket thickness for secure installation
