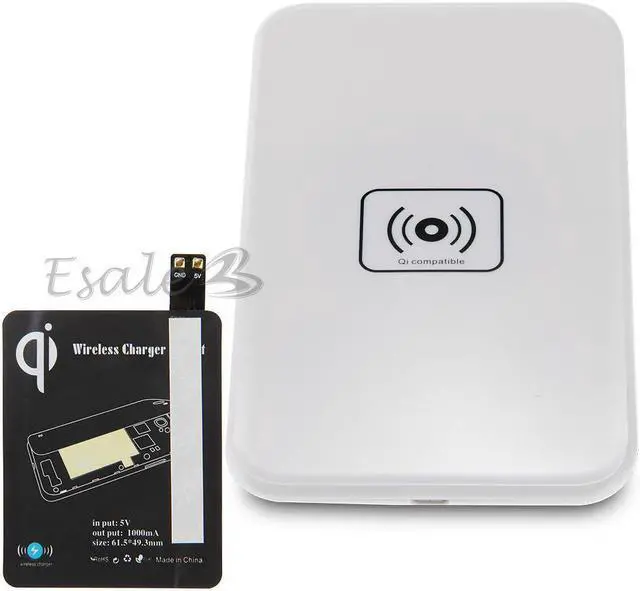

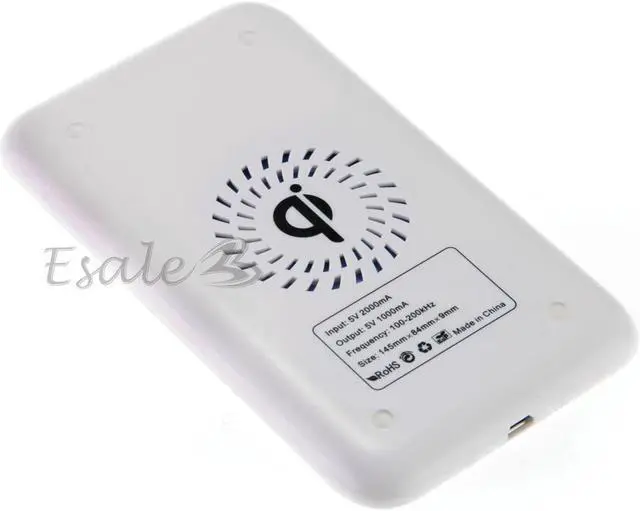

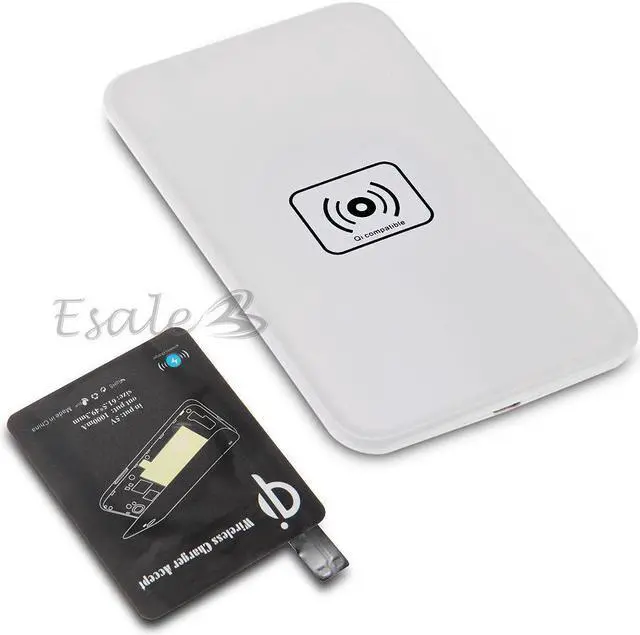

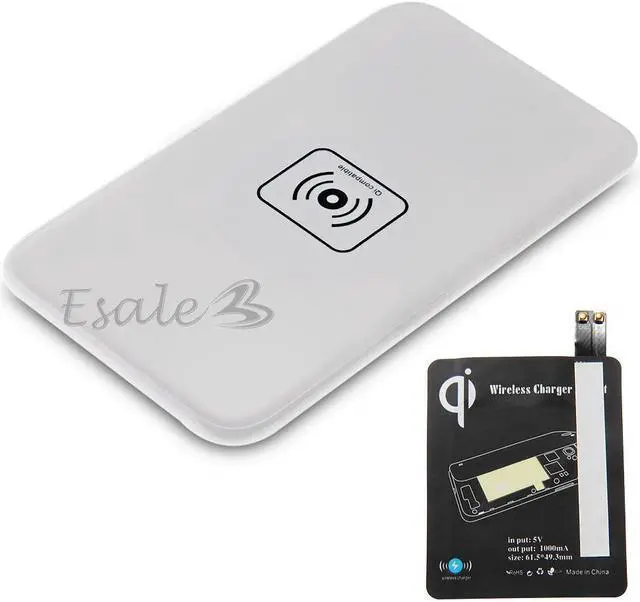

1. Name: Wireless transmitter
- Mode: X5
- Color: white
- Product size: about 145 x 84 x 9 mm
Package size: about 191 x 100 x 51 mm
- Product parameters:
Input: 5V/2A
Output: 5V/1A
Transmission frequency: 10W
Charging current: 5V/500-1000mA
Transmission distance: 10mm
Charging efficiency: =75%
Operation standard: QI wireless charging standard
Main chip: Sunplus
2. Name: S4 receiver (black)
- Size: about 61 x 49 mm
- Product parameters:
Input: 5V
Receiving frequency: 5W
Charging current: 600-1000mA
Receiving distance: 5mm
Charging efficiency: =70%
Operation standard: QI wireless charging standard
Main chip: TI
Compatible models: for Samsung GALAXY S4 (I9500)
Note:
1. Open the back cover of cellphone, and check whether there is wireless contact near the SIM card slot or the battery before the first use. Otherwise, the device can not work normally.
2. The device can only work when it is powered on, for the device itself can not store electricity. It is supposed to choose an adapter above 5V/1.5A
3. Cellphone version can be divided into two types including custom made ones and non-custom made ones according to network frequency band (Telecom, Unicom, China Mobile). Some cellphones do not support wireless charging function. Open the back cover and check, if there is no metal contact or solenoid coil, then it can not be charged wirelessly.

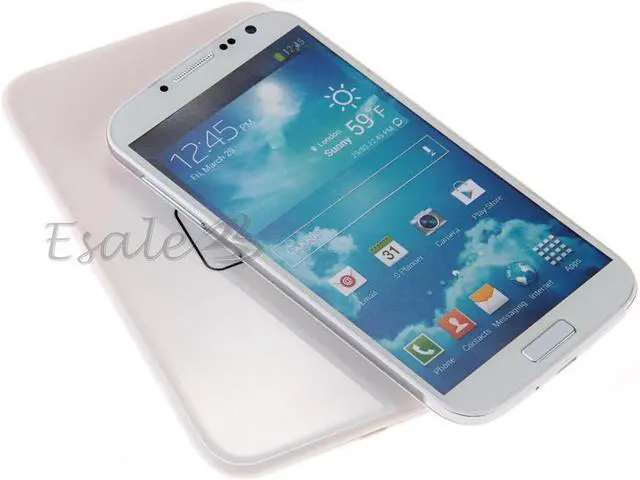

4. The solenoid coil of cellphone should be aimed properly at the electromagnetic induction area of the transmitter and it had better to be center to center. Otherwise, it will have impact on matching efficiency or lead to recognition and charging failure. The space between the transmitter and the receiver should be 5mm.
