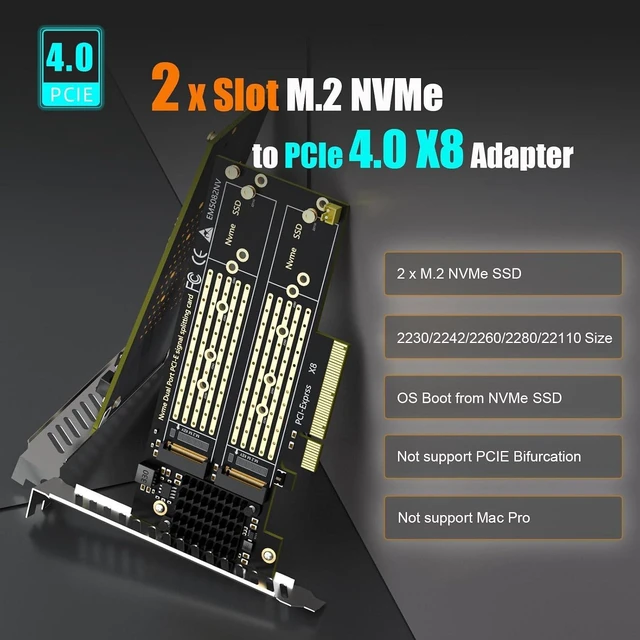

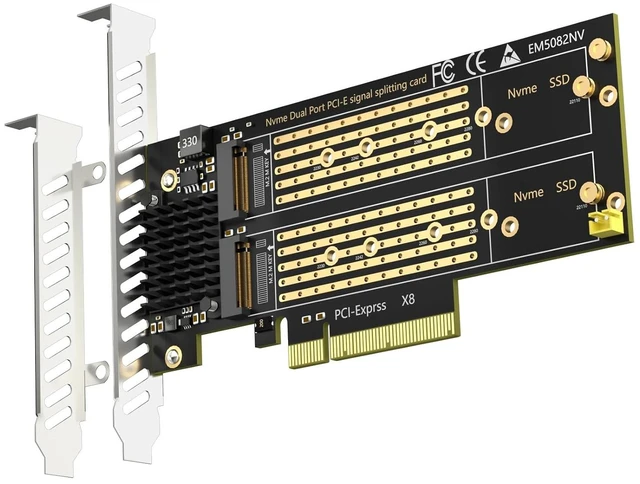

PA21 Dual M.2 NVMe SSD to PCIe 4.0 X8, Bifurcation Required
- Dual M.2 NVMe on one PCIe X8 slot: run two M.2 NVMe SSDs at the same time from a single PCIe x8/x16 slot. Fits 22110/2280/2260/2242/2230 M.2 NVMe SSDs.; Check your motherboard first: this is a passive adapter with no bifurcation chip. Your motherboard must support PCIe bifurcation (X4X4X4X4, X4X4X8 or Hyper M.2 X16 mode) and it must be enabled in BIOS. Without bifurcation, only the NVMe-1 port is recognized. Not compatible with X8X4X4 mode; not for Mac Pro 5.1.; Up to 64Gbps per drive: each SSD gets a dedicated PCIe 4.0 x4 link. Full PCIe 4.0 speed requires a PCIe 4.0 CPU (Intel 11th gen or newer), a PCIe 4.0 slot and a PCIe 4.0 SSD. Backward compatible with PCIe 3.0/2.0 at their own speeds.; Soft RAID via OS tools: no onboard RAID controller, so RAID 0/1 is built with Windows Disk Management, Storage Spaces or Linux mdadm on Intel and AMD platforms. Intel VROC requires a separate license.; Bootable OS drive: reinstall the OS and set BIOS/UEFI to boot from the SSDs on this adapter (some older boards only support storage mode). Includes regular and low-profile brackets.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Dual M. 2 NVMe on one

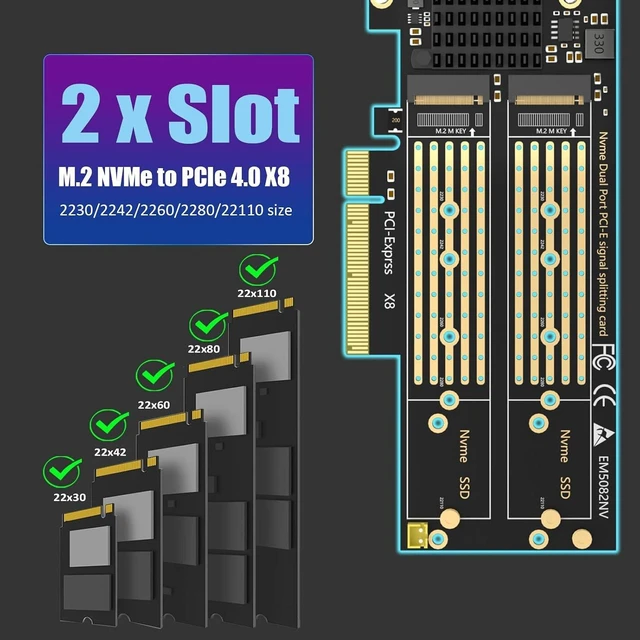

PCIe X8 slot: run two M. 2 NVMe SSDs at the same time from a single PCIe x8/x16 slot. Fits 22110/2280/2260/2242/2230 M. 2 NVMe SSDs.;

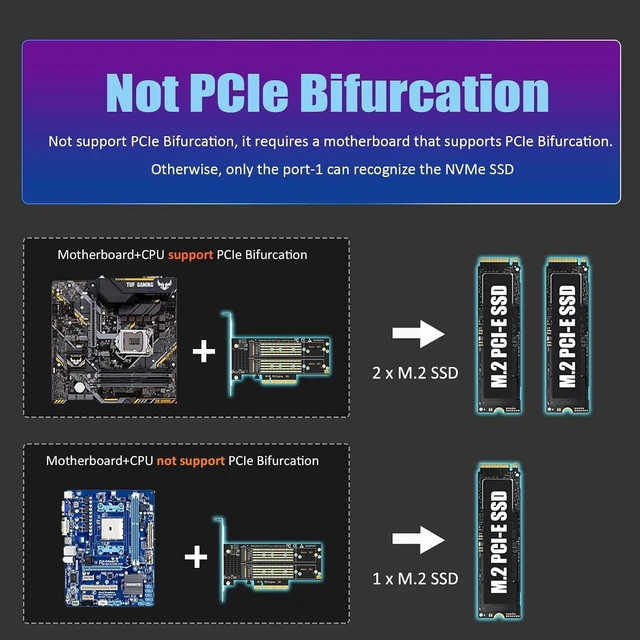

Check your motherboard first: this is a passive adapter with no bifurcation chip. Your motherboard must support PCIe bifurcation (X4X4X4X4, X4X4X8 or Hyper M. 2 X16 mode) and it must be enabled in BIOS. Without bifurcation, only the NVMe-1 port is recognized. Not compatible with X8X4X4 mode; not for Mac Pro 5.1.;

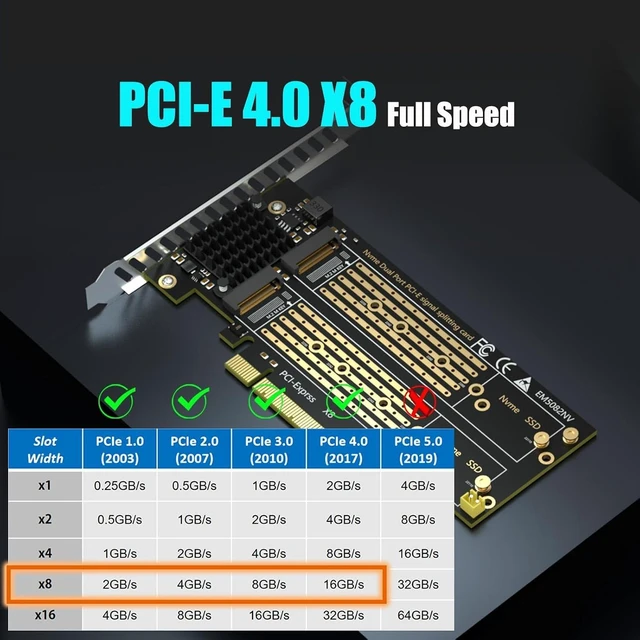

Up to 64Gbps per drive: each SSD gets a dedicated PCIe 4.0 x4 link. Full PCIe 4.0 speed requires a PCIe 4.0 CPU (Intel 11th gen or newer), a PCIe 4.0 slot and a PCIe 4.0 SSD. Backward compatible with PCIe 3.0 / 2.0 at their own speeds.; Soft RAID via
OS tools: no onboard RAID controller, so RAID 0/1 is built with Windows Disk Management, Storage Spaces or Linux mdadm on Intel and AMD platforms. Intel VROC requires a separate license.;

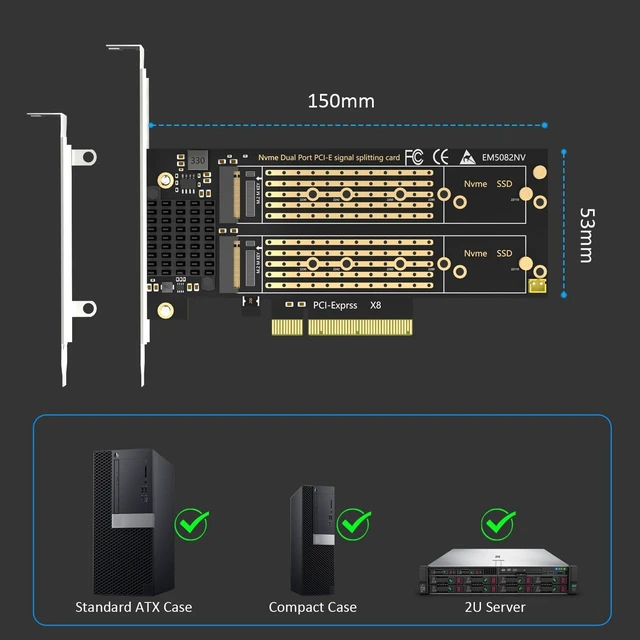

Bootable OS drive: reinstall the OS and set BIOS/UEFI to boot from the SSDs on this adapter (some older boards only support storage mode). Includes regular and low-profile brackets.
PCIe X8 slot: run two M. 2 NVMe SSDs at the same time from a single PCIe x8/x16 slot. Fits 22110/2280/2260/2242/2230 M. 2 NVMe SSDs.;
Check your motherboard first: this is a passive adapter with no bifurcation chip. Your motherboard must support PCIe bifurcation (X4X4X4X4, X4X4X8 or Hyper M. 2 X16 mode) and it must be enabled in BIOS. Without bifurcation, only the NVMe-1 port is recognized. Not compatible with X8X4X4 mode; not for Mac Pro 5.1.;
Up to 64Gbps per drive: each SSD gets a dedicated PCIe 4.0 x4 link. Full PCIe 4.0 speed requires a PCIe 4.0 CPU (Intel 11th gen or newer), a PCIe 4.0 slot and a PCIe 4.0 SSD. Backward compatible with PCIe 3.0 / 2.0 at their own speeds.; Soft RAID via
OS tools: no onboard RAID controller, so RAID 0/1 is built with Windows Disk Management, Storage Spaces or Linux mdadm on Intel and AMD platforms. Intel VROC requires a separate license.;
Bootable OS drive: reinstall the OS and set BIOS/UEFI to boot from the SSDs on this adapter (some older boards only support storage mode). Includes regular and low-profile brackets.
