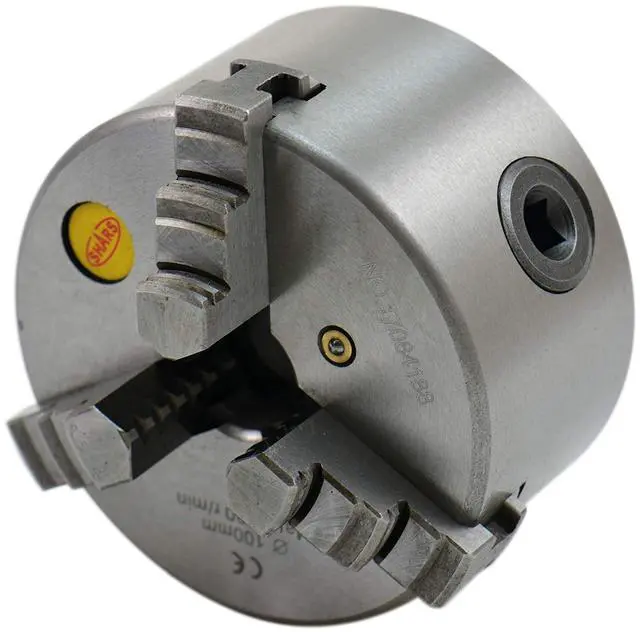

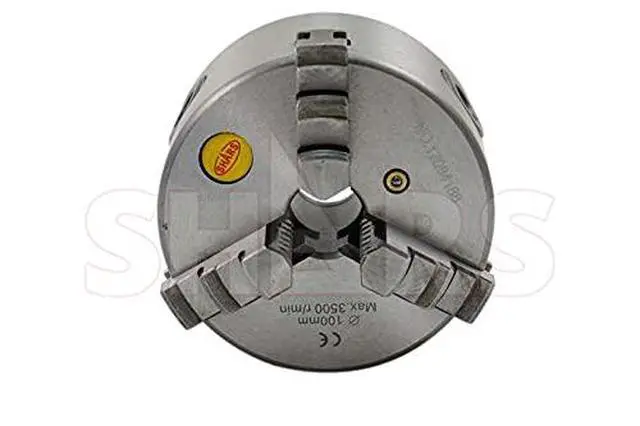

4" 3 jaw Self Centering Scroll Lathe Chucks 202-5410 L[
Limited time offer, ends 08/26 By Yara Official Flagship
- SKU# 202-5410 A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck; for detailed information, please refer to the back plate machining guide. Chuck Diameter: 4"; Through Hole Size: 0.866"; Bolt Circle Diameter: 3.307"; Chuck Thickness: 2.165"; TIR: 0.003"; Maximum Speed RPM: 3500; Maximum Torque NM: 60; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracy Before assembling the jaw to its designated chuck the jaw's finishing machining operation are done on closed tolerance CNC machine
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
SKU# 202-5410 A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck; for detailed information, please refer to the back plate machining guide. Chuck Diameter: 4"; Through Hole Size: 0.866"; Bolt Circle Diameter: 3.307"; Chuck Thickness: 2.165"; TIR: 0.003"; Maximum Speed RPM: 3500; Maximum Torque NM: 60; Mounting: plain back; Reversible Jaws: No; Number of Jaws: 3 A serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracy Before assembling the jaw to its designated chuck the jaw's finishing machining operation are done on closed tolerance CNC machine
