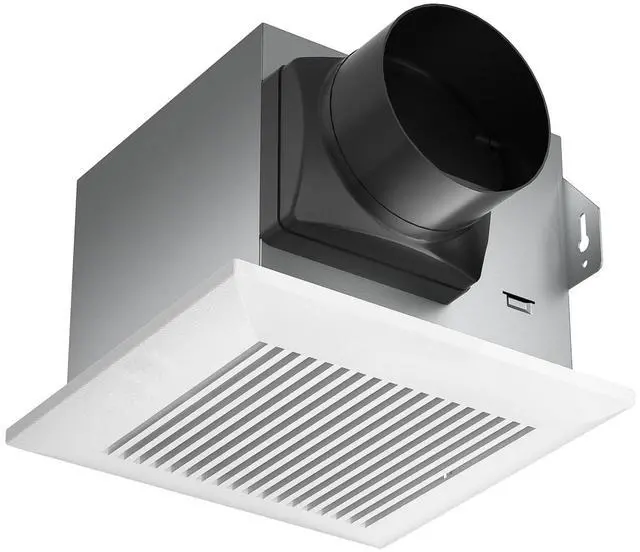

Very Quiet Bathroom Exhaust Fan - 80 CFM, 1.5 Sone, No Attic Access Needed, Energy Star Certified, Easy to Install,4-Inch Duct, Ceiling Mounted for Bathrooms Up to 85 Sq. Ft
- Ultra Quiet 1.5 Sone Bathroom Fan with 80 CFM Power Quickly removes moisture from bathrooms up to 85 Sq. Ft, keeping air fresh. When replacing the old fan, please check whether the grille size can cover the original ceiling opening.

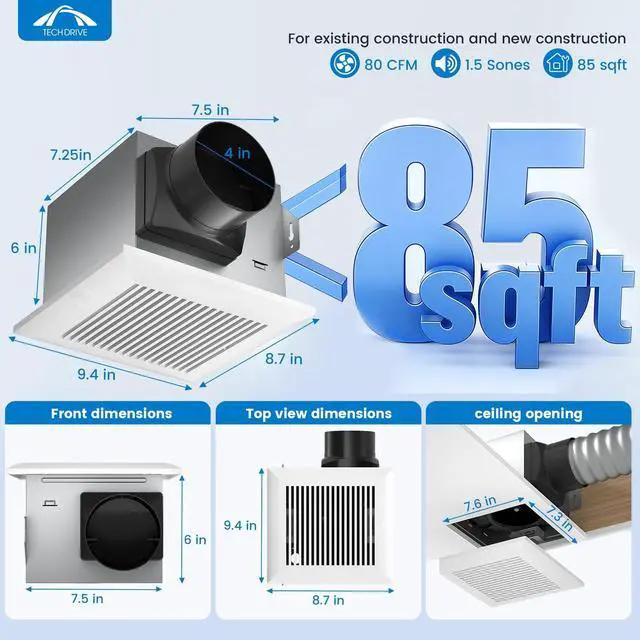

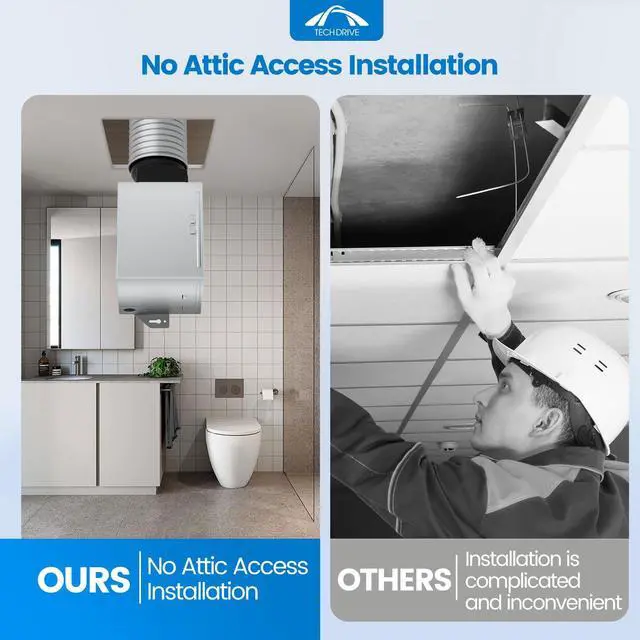

- No Attic Access Needed Easy Installation for Roomside Install ! No-cut housing design, install entirely from ceiling side, fits most standard bathroom openings (7.6in x 7.3in). Housing Dimensions: 7.5 in x 7.25 in x 6 in (4-inch duct included). Ceiling Mounting Opening: 7.6 in x 7.3 in.
- Easy-to-Install: No cut housing with no attic access installation and replaces most small bathroom standard fans using existing opening. Installation can be done entirely from the ceiling side. Note: Housing height is 6 inches ensure sufficient ceiling depth if replacing 4-inch housing old fans.
- Galvanized steel housing resists corrosion, and it features a low-profile white grill cover. Efficient and quiet operation with excellent motor performance and operates for at least 25,000 hours.
- Energy Star qualified, UL and HVI certified for performance assurance. Suitable for use over bathtubs or showers when installed on a GFCI-protected branch circuit.
+
+
Overview
Specs
Reviews
How to choose your Bathroom Fan?
What is a sone rating?
Sones, or the sone rating, is a term used to describe sound levels. Lower sone ratings are found on quieter fans. Higher sone ratings indicate a louder bathroom fan.
What is CFM?
CFM (Cubic Feet per Minute) measures fan air movement. CFM increases as air movement increases. A higher CFM is best for a larger bathroom; a lower CFM may be adequate for smaller spaces.
TD-BF-01 110CFM/1.0Sones. Ventilating for bathroom up to 110 Sq. Ft
TD-BF-02 90CFM/0.8Sones. Ventilating for bathroom up to 90 Sq. Ft
TD-BF-03 70CFM/2.0Sones. Ventilating for bathroom up to 75 Sq. Ft
TD-BF-04 80CFM/1.5Sones Ventilating for bathroom up to 85 Sq.FT
TD-BF-05-L with LED light ventilating for bathroom up to 75 Sq.FT.
TD-BF-06 70CFM 0.3Sones ventilating for bathroom up to 75 Sq.Ft
TD-BF-07 with Humidity sensor ventilating up to 110 Sq.Ft
TD-BF-08-L with LED light ventilation for bathroom up to 85 Sq.FT
Product information
| Size | 80CFM |
| Brand Name | Tech Drive |
| Color | White |
| Style | Modern |
| Voltage | 120 volts |
| Wattage | 19 watts |
| Material | Galvanized sheet |
| Room Type | Bathroom |
| Model Name | bathroom fan with led light |
| Unit Count Type | Count |
| Unit Count | 1 |
| Finish Type | Aluminum |
| Is Product Cordless | false |
| Item Weight | 2.749 kilograms |
| Noise Level | 1.5 sones |
| Manufacturer | XIANGYU ELECTRICAL APPLIANCES LIMITED |
| Model Number | TD-BF-04 |
| Mounting Type | Ceiling Mount |
| Control Method | touch |
| Controller Type | Wall Switch |
| Number of Boxes | 1 |
| Number of Items | 1 |
| Number of Packs | 1 |
| Special Features | Quiet Operation |
| Number of Speeds | 1 |
| Air Flow Capacity | 80 cubic_feet_per_minute |
| Installation Type | Ceiling Mount |
| Power Source | Corded Electric |
| Specification Met / 0 | UL |
| Specification Met / 1 | HVI |
| Specification Met / 2 | Energy Star |
| Are batteries included? | false |
| Are batteries required? | false |
| Electric Fan Design | exhaust_fan |
| Included Components | Screws, Fan housing,user manual |
| Item Package Weight | 2.7868 kilograms |
| Indoor Outdoor Usage | indoor |
| Required Assembly | false |
| Automatic Shutoff | false |
| Item Package Quantity | 1 |
| Number of Power Levels | 1 |
| Item Depth Front To Back | 6 inches |
| Item Width Side To Side | 7.25 inches |
| Item Height Base to Top | 7.5 inches |
| Item Package Dimensions | 20 L x |
