Specifications:
1. Dielectric Antenna
- Center Frequency: 1575.42MHz ±3MHz
- V.S.W.R: 2:01
- Bandwidth: ±5 MHz
- Impedance: 50
- Peak Gain: > 3dBic based on 7x7cm ground plane
- Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
- Polarization: RHCP
2. LNA/Filter
- LNA Gain Without cable: 28dB Typical
- Noise Figure: 2.0dB
- Filter Out Band Attenuation: (f0=1575.42MHz)
- 7dB Min f0+/-20MHz;
- 20dB Min f0+/-50MHz;
- 30dB Min f0+/-100MHz
- V.S.W.R: < 2.0
- DC Voltage: 3V to 5V
- DC current: 7-10MA
3. Overall
- Frequency Range: 1575/1609MHz
- V.S.W.R: 2.0
- Gain: 30±3dBic
- Impedance: 50 Ohm
4. Mechanical
- Weight: 60 gram

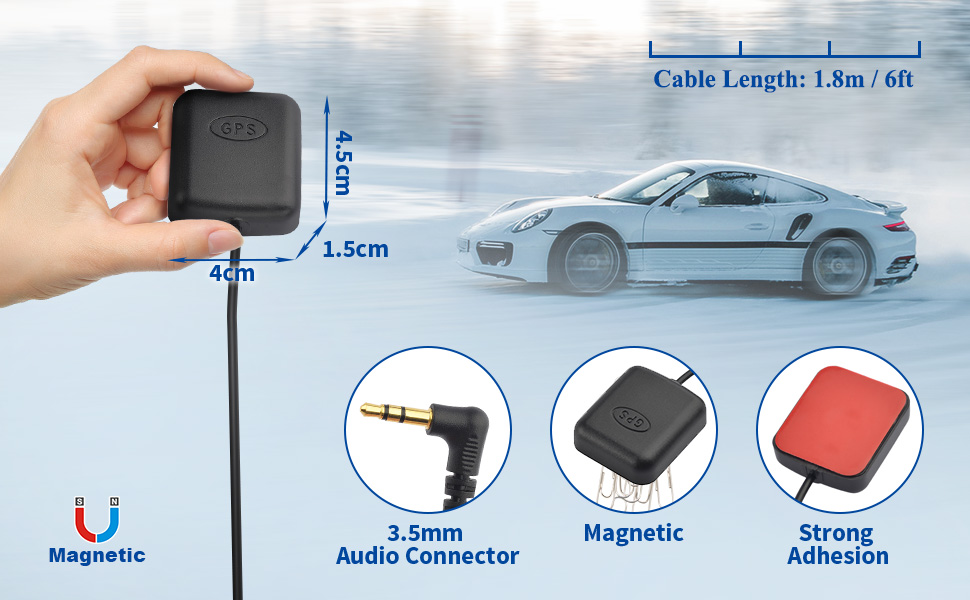

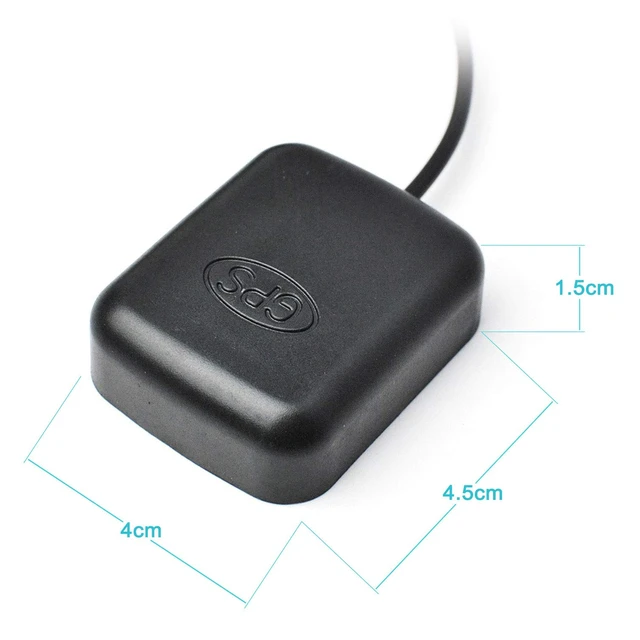

- Size: 45x38x15mm
- Cable: RG174
- Length: 6 feet
- Connector: 3.5mm Audio Plug Connector;

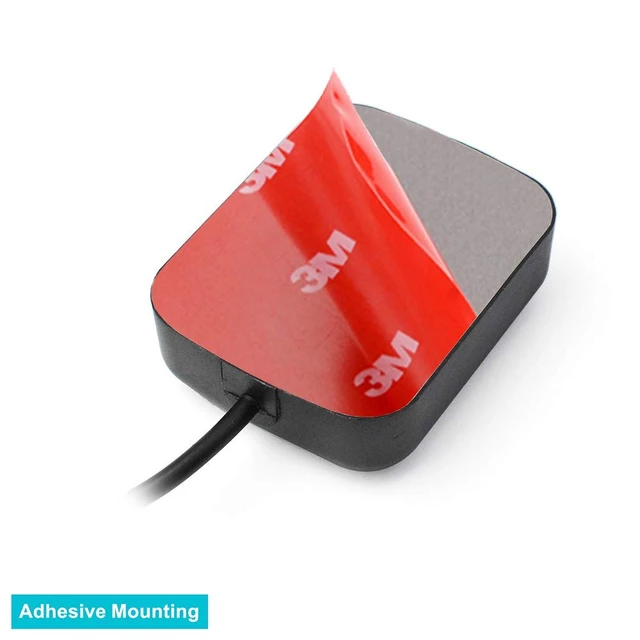

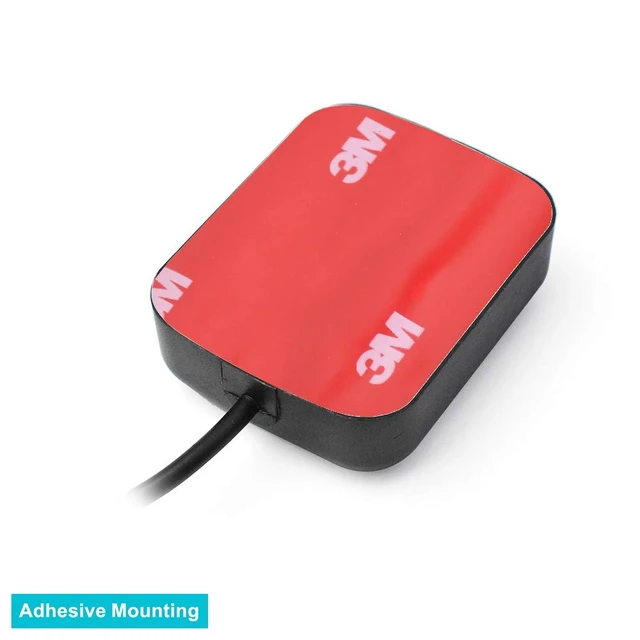

- Mounting: Adhesive Mounting;
- Housing: Black
5. Environmental
- Working Temp: -40 to 85?
- Waterproof test: 4 hours under the tap, let the water rush over the housing;
- Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
- Humidity: 95% ~ 100% R
- Package List: 1 x Antenna (As the Picture Shown)
Specifications:
1. Dielectric Antenna
- Center Frequency: 1575.42MHz ±3MHz
- V.S.W.R: 2:01
- Bandwidth: ±5 MHz
- Impedance: 50
- Peak Gain: > 3dBic based on 7x7cm ground plane
- Gain Coverage: > -4dBic at -90 < 0 < 90 (over 75 volume)
- Polarization: RHCP
2. LNA/Filter
- LNA Gain Without cable: 28dB Typical
- Noise Figure: 2.0dB
- Filter Out Band Attenuation: (f0=1575.42MHz)
- 7dB Min f0+/-20MHz;
- 20dB Min f0+/-50MHz;
- 30dB Min f0+/-100MHz
- V.S.W.R: < 2.0
- DC Voltage: 3V to 5V
- DC current: 7-10MA
3. Overall
- Frequency Range: 1575/1609MHz
- V.S.W.R: 2.0
- Gain: 30±3dBic
- Impedance: 50 Ohm
4. Mechanical
- Weight: 60 gram
- Size: 45x38x15mm
- Cable: RG174
- Length: 6 feet
- Connector: 3.5mm Audio Plug Connector;
- Mounting: Adhesive Mounting;
- Housing: Black
5. Environmental
- Working Temp: -40 to 85?
- Waterproof test: 4 hours under the tap, let the water rush over the housing;
- Vibration: Sine sweep 1g (0-p) 10 ~ 50 ~ 10Hz each axis
- Humidity: 95% ~ 100% R
- Package List: 1 x Antenna (As the Picture Shown)
