10 Pairs 8MP/4K HD BNC Video Balun Transceiver for AHD/TVI/CVI/CVBS Cameras Transmit 720P/960P/1080P/3MP/5MP/8MP via UTP RJ45 Cable for CCTV Security Systems

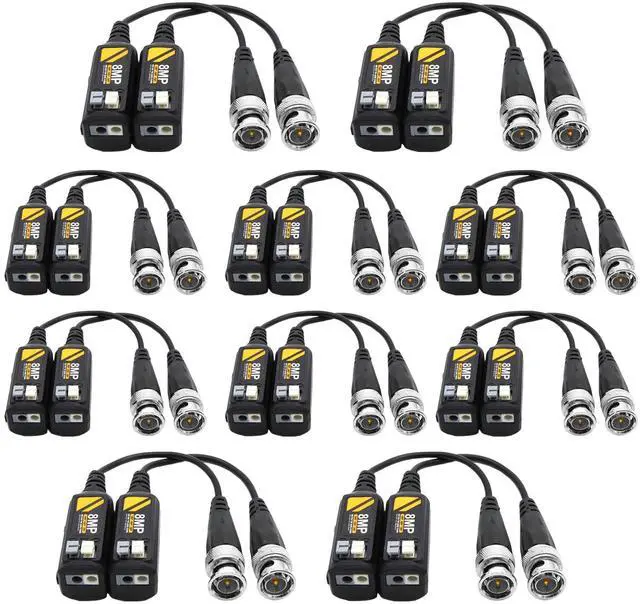

10 Pairs (20pcs) 8MP HD Video Balun Transceiver for AHD/TVI/CVI/CVBS Cameras - Transmit up to 1312 ft (400m) via UTP CAT5/5E/6 Cable, Supports 720P/1080P/3MP/5MP/8MP, Anti-Interference, DC Power & Video Signal Transmission, Screw-Free BNC Connector for CCTV Security Systems

--8MP/4K Pixel Numbers 3840*2160 or 4096*2160

--Transmission signal : 1 channel

--Transmission distance: AHD/CVI up to 400m (1312 ft )

TVI/CVBS up to 300m (984 ft )

--Category Type: Only compatible with UTP CAT5/CAT5E/CAT6 cable

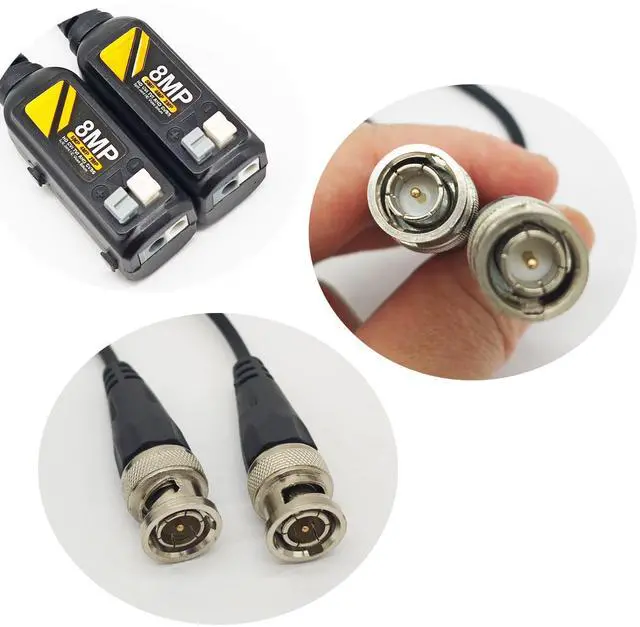

--Coaxial video connector: BNC - M

--Twisted-pair video connector: push-terminal ( press type)

--Compatible Format : CVI/TVI/AHD/CVBS

--Compatible video Pixel Resolution : 8MP/5MP/4MP/3MP/720P/960P/1080P (1080P is 2 MP)

--Anti-interference >60db

Protection :

--ESD: 1a contract discharge electricity level 3 ; 1b air discharge electricity level 3 Per: IEC61000-4-2

--Coaxial Cable Connector: 2KV (common-code) Per: IE 61000-4-5

--UTP Cable Connector : 2KV (different-code), 4KV (common-code), Per: IE 61000-4-5

Impedance BNC Male is 75 ohms; UTP Cable us 100 ohms

Note:

--Because of the press type, the wire does need to be stripped.

--Please make sure that the same colors you use in one end are the same colors on the other end.

--Don't use one with any other type of baluns. Both baluns must be a pair , otherwise don't work.
