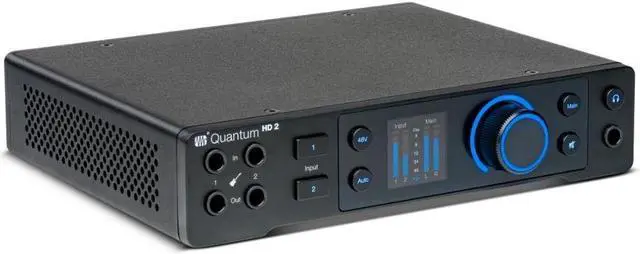

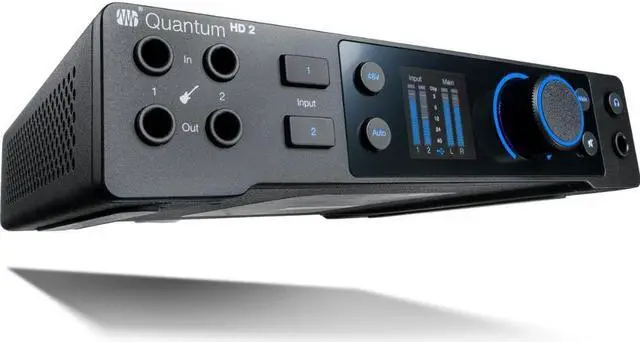

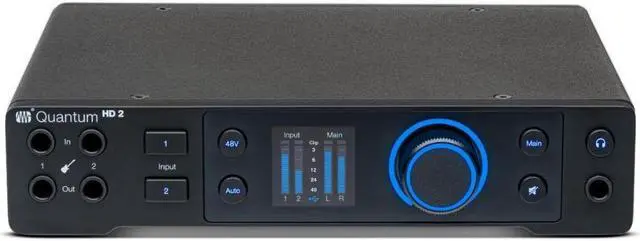

PreSonus Quantum HD 2 USB-C Audio Interface

The culmination of nearly 30 years of design experience, the PreSonus Quantum HD 2 is a 20x24 USB-C desktop audio interface ideal for producers, musicians, and creators looking for high-fidelity audio and flexible connectivity options for the studio or live onstage. The HD 2 features two high-definition MAX-HD mic preamps with +75 dB of gain, ideally suited for today's most popular microphones. Guitarists and bassists will love the front-facing instrument inputs, which were codeveloped with Fender engineers. High-performance 32-bit / 192 kHz converters with 124 dB dynamic range let you hear and capture audio with stunning clarity. Use the Quantum HD 2 to record to a Mac/Windows computer or on your iOS/Android phone or tablet.



An Auto Gain button sets the perfect gain level for your microphones and instruments, hassle-free. You also get two reamp outputs, so you can send audio from your DAW and experiment with amps and effects to sculpt your sounds. A built-in DSP monitor mixer plus loopback audio make creating monitor and streaming mixes quick and easy. Route an external A/D converter into the ADAT I/Os to record and playback up to 16 more channels of audio. You can even utilize the Universal control app to record straight to your mobile device or remotely control the Quantum HD 2. Professional recording software is included to get your productions started right away.




Key Features

• 20x24, 32-bit / 192 kHz USB-C desktop audio interface


• Record on desktop, laptop, phone, tablet


• Hi-Z instrument inputs codeveloped with Fender engineers


• High-performance converters with 124 dB dynamic range


• Custom low-latency driver provides exceptionally low audio latencies


• 2 next-generation PreSonus MAX-HD preamps, +75 dB of gain


• Switchable +48V phantom power


• 2 balanced combo XLR-1/4"mic/line/instrument inputs


• 2 reamp outputs

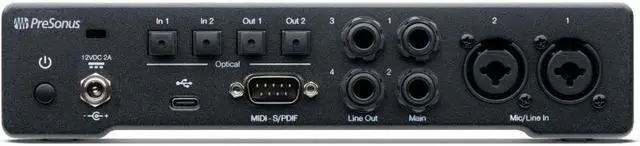

• 2 balanced 1/4" TRS main outputs, 2 balanced 1/4" TRS line outputs


• 1 high-power headphone output


• 16 channels of ADAT I/O (up to 48 kHz)


• Stereo S/PDIF I/O


• Auto gain


• DSP monitor mixer plus loopback audio


• Full-color high-resolution display


• Control settings via Universal Control app


• Includes Studio One Pro, Studio One+ software

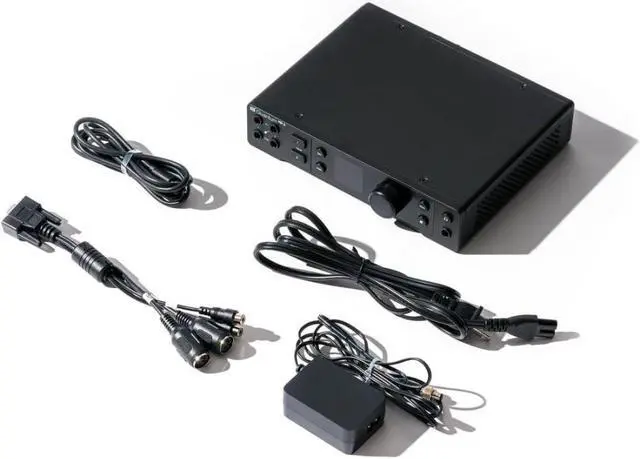

Box Contains

PreSonus Quantum HD 2 USB-C Audio Interface


• 1 x DB-9 breakout cable


• 1 x 1.5M USB-C to USB-C cable
