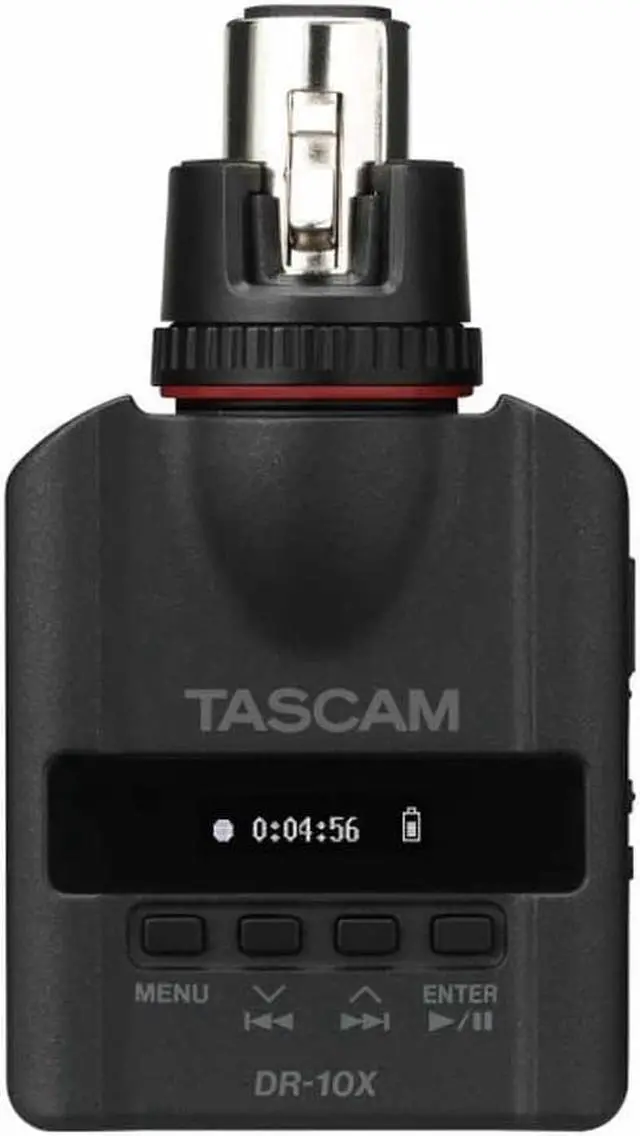

Tascam DR-10X Plug-On Micro Linear PCM Recorder for Handheld XLR Mics

XLR plug-on connection
Compatible with dynamic mics as well as bettery-powered condenser mics
48kHz/24-bit linear PCM mono recording
WAV files (compatible with BWF format)
Media: microSD/SDHC cards (supports 32GB capacities)

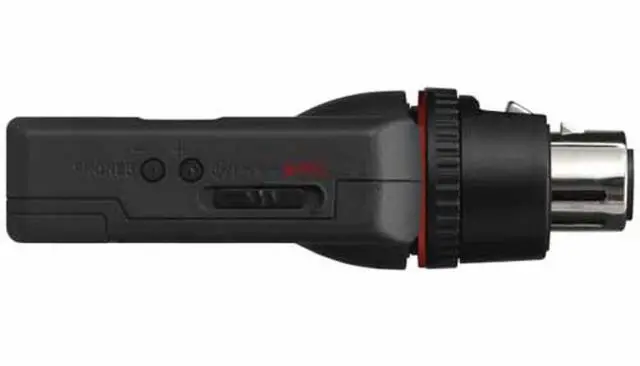

Sliding record switch and hold function to prevent misoperation during recording
Dual recording function
automatic file closing function to prevent the loss of already recorded data
XLR connector also can use as external input for external input
High/Mid/Low recording level settings
Low-cut filter
Limiter
Automatic level function
With a built-in clock function, supports BWF files that can have time information added, which is convenient for editing and searching
Time track incrementing function can create new files at regular intervals (every 15 minutes) during recording
Playback function allows recorded data to be checked immediately
Headphone output
Locking mechanism assure a tight connection with the microphone body
Easy-to-read organic EL display

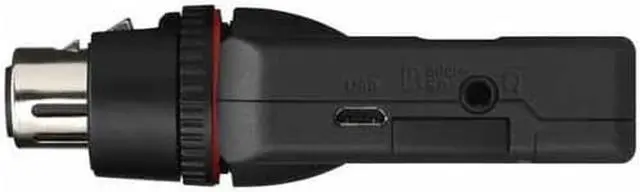

micro USB B port enables easy data exchange with computers
Records at least 10 hours on a single AAA battery by using alkaline batteries (EVOLTA)
Unit settings can be created and transferred as a computer text file
Settings can be transferred between multiple DR-10X units using the infrared transmission function
Firmware can be updated using a microSD card
RoHS-compliant product

Capture audio during interviews, press conferences and meetings with this compact PCM recorder. Simply attach the DR-10X to a dynamic or battery-powered condenser microphone with XLR output
TASCAM's compact DR-10X attaches to a handheld microphone for the ultimate compact news gathering recording system. A captive XLR connector attaches firmly to your microphone, capturing interviews at 48kHz/24-bit Broadcast WAV resolution. Offload recordings through the microUSB connection or by removing the microSD card.

The DR-10X has both manual and automatic gain settings, with a low cut filter and limiter to prevent overloads. The Dual Recording mode captures a copy of the audio at a lower level, so if there is distortion you have a backup safety. Recording can begin instantly by holding the record side switch while turning the unit on. For simple-to-use ENG recording that stays out of the way, TASCAM's DR-10X leads the field.

Record audio without a cable by connecting this unit directly to a dynamic mic with XLR output

This recorder can be attached to a dynamic mic or a battery-powered condenser mic and record its output
This audio recorder is designed for plug-on connection, so it can be connected directly to XLR handheld mics. In addition to dynamic mics, it can also be used with battery-powered condenser mics. In addition to using this recorder with handheld mics in interviews and mics on stands in press conferences, it can also be used for recording seminars, meetings and any other situations using a handheld microphone.

Compact and lightweight
The DR-10X is compact fitting in the palm of the hand and lightweight at 56.3 grams. In addition, the mic connector has a locking mechanism that ensures a tight fit to the microphone body giving the entire assembly a solid feel.

When recording interviews or reporting that requires high audio quality, a field recorder is normally needed. But for small-scale reporting, you can record high-quality audio with just a microphone and the DR-10X. No need to carry bulky equipment you can now record with a compact rig that you can hold in one hand.

Linear PCM recorder with high-quality audio

Designed to capture high-quality mono audio at 48kHz/24-bit for interviews, meetings and other professional applications
