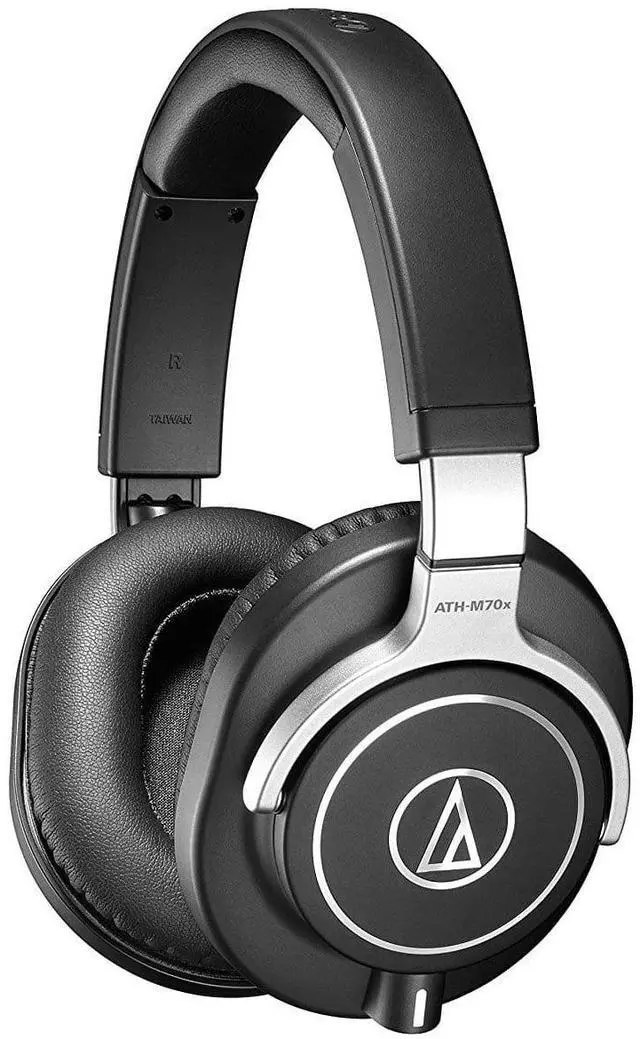

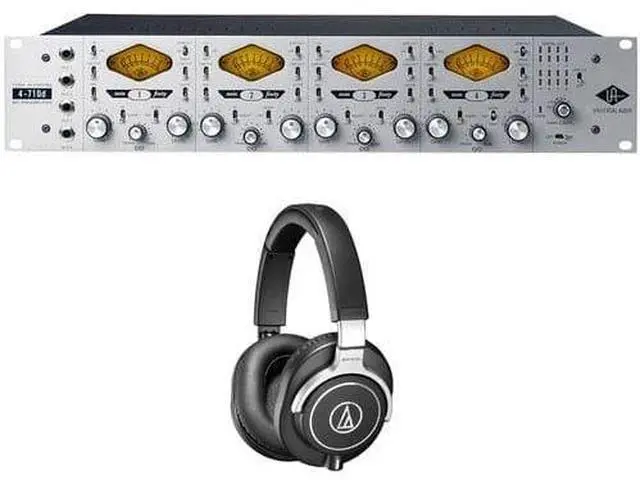

Universal Audio 4-710D Tone Blending Twin-Finity Microphone Preamp and DI. With Audio-Technica ATH-M70x Pro Monitor Headphones

The 4-710d from Universal Audio is a high-end, 4-channel microphone/line preamplifier with tube and solid-state tone blending capabilities. The dual signal path is perfect for a wide range of microphone and instrument sources, with each channel offering selectable 1176-style compression circuitry. Four additional line inputs feed 8-channels of pristine analog-to-digital conversion.

The 1176-style compression include specially tuned fast and slow settings, and can be completely switched out of the signal chain. Each of the microphone preamp channels allows for continuously variable phase-aligned tone, between a 100% tube and 100% solid-state signal path. Send and return jacks are available for external processing or signal access.

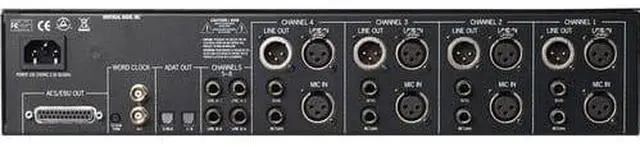

The 8 analog inputs are digitized via ultra high-quality 24-bit analog to digital converters at selectable sample rates up to 192kHz. Digital output is available via dual ADAT Lightpipe connectors (SMUX supported), or via a 25-pin D-sub connector for 8-channels of AES/EBU, allowing for easy integration with most popular audio interfaces.

Preamplifiers
Four TEC Award-winning 710 Twin-Finity microphone/line preamps
Dual-path 285-volt Class-A tube and transimpedance solid-state preamps
Phase-aligned tone-blending of tube and solid state circuits, creamy to crunchy
Newly designed 1176-style compression circuit per preamp channel
JFET Direct Input with 2.2M ultra Hi-Z impedance with auto input override
Large backlit VU meters for flexible metering of input drive, gain level and gain reduction
Balanced send/return inserts (half-normalled)
48V phantom power individually switchable
75Hz low-cut filter
Polarity switch
Monolithic balanced output stage
