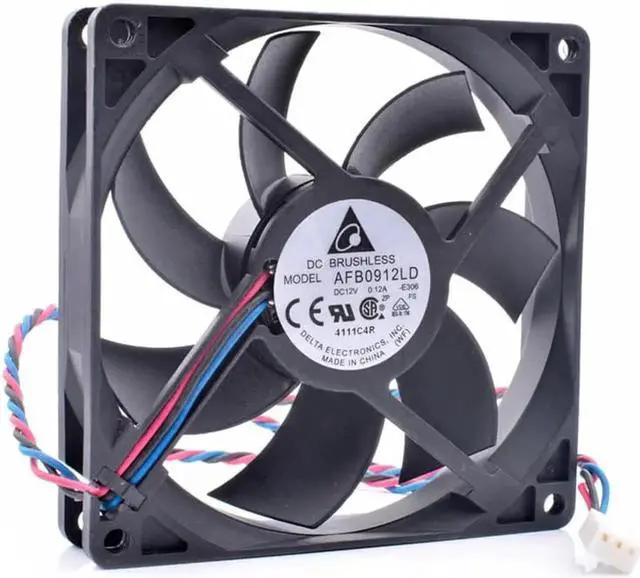

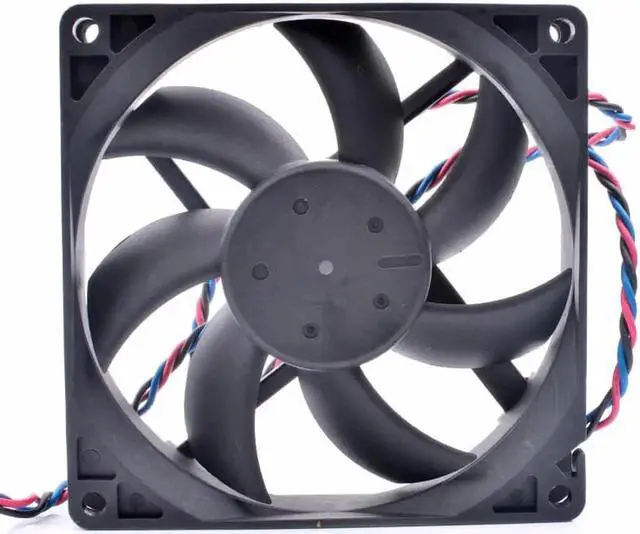

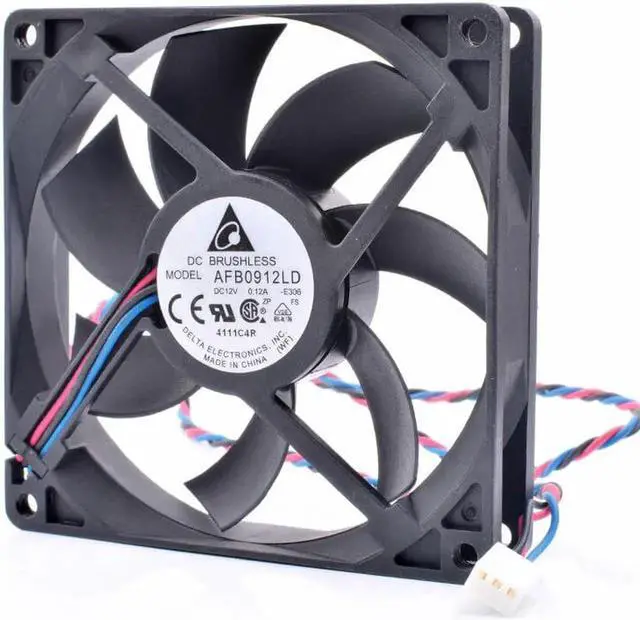

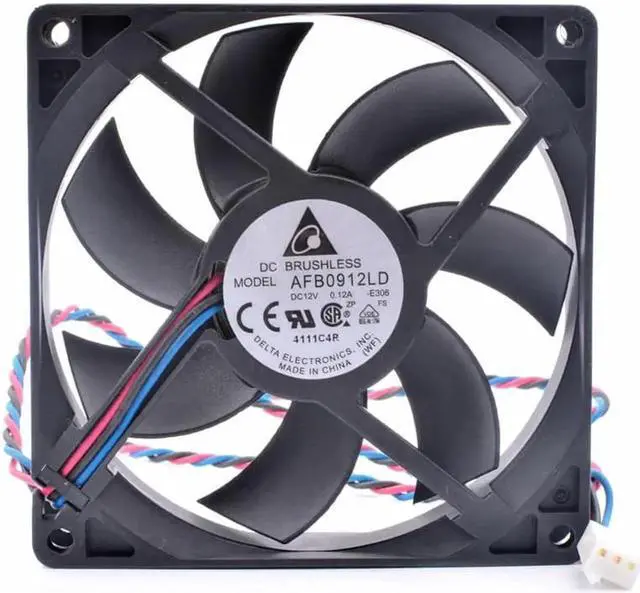

AFB0912LD 9cm 9020 92x92x20mm 12V 0.12A chassis power supply quiet cooling fan
Limited time offer, ends 07/29 By Xiaoying Cooling Fans LLC
- Use : DC fan
- Manufacturer Part Number : AFB0912LD-F00
- Manufacturer Or OEM : Delta Electronics
- Description : FAN AXIAL 92X20MM 12VDC WIRE
- Minimum order quantity : 88
- Series : AFB
- Part Status : For sale
- Voltage - rated : 12VDC
- Size / Size : Square - 92mm long x 92mm high
- Width : 20.00mm
- Airflow: 41.0 CFM (1.15m?/min)
- Static pressure : 0.084 inches of water (20.9 Pa)
- Bearing type : Ball
- Fan type : tube shaft
- Features : Speed sensor (tachometer)
- Noise : 28.5 dB(A)
- Power (W): 0.96W
- RPM: 2100 RPM
- Termination : 3 leads
- Approval : CE, CSA, UL, VDE
- Weight:
- 0.203 lbs (92.08g)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Use: DC fan
Manufacturer Part Number: AFB0912LD-F00
Manufacturer Or OEM: Delta Electronics
Description: FAN AXIAL 92X20MM 12VDC WIRE
Minimum order quantity: 88
Series: AFB
Part Status: For sale
Voltage - rated: 12VDC
Size / Size: Square - 92mm long x 92mm high
Width: 20.00 mm
Airflow: 41.0 CFM ( 1.15 m? /min)
Static pressure: 0.084 inches of water ( 20.9 Pa)
Bearing type: Ball
Fan type: tube shaft
Features: Speed sensor (tachometer)
Noise: 28.5 dB (A)
Power (W): 0.96W
RPM: 2100 RPM
Termination: 3 leads
Approval: CE, CSA, UL, VDE
Weight:
0.203 lbs ( 92.08 g)
