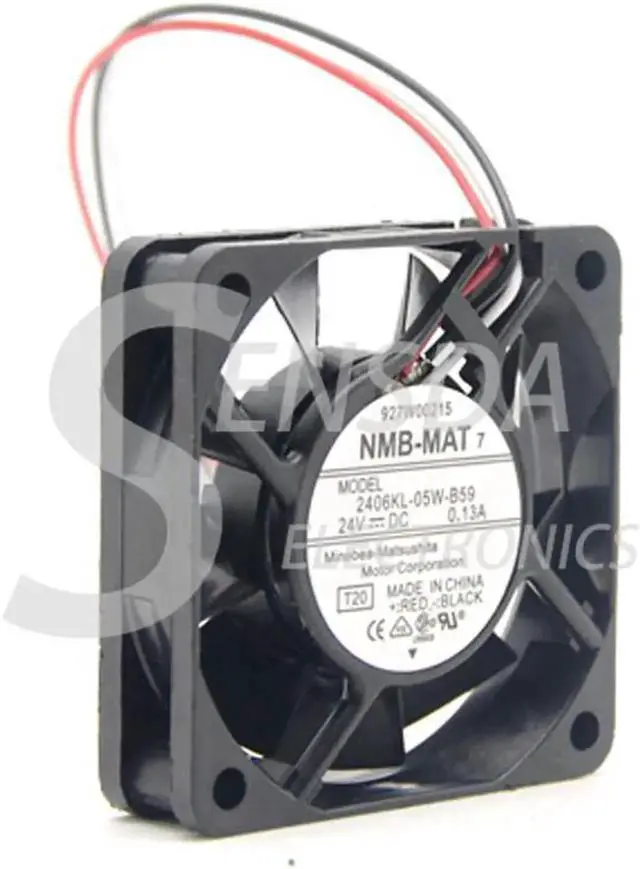

Aomoproing For NMB 2406KL-05W-B59 dc 24V 0.13A 6cm 6015 60*60*15 MM 3 wires converter cooling fan

Certification:CE

Origin:CN(Origin)

Application:Computer Case

Bearing:Two Ball Bearing

Lines:3 Lines

Type:Fan

Power Interface:3pin

Model Number:2406KL-05W-B59

[Dimension]: 60x60x15mm

[Rated]: DC24V

[Range]: DC12.0-26.5V

[Power]: 0.13A (nominal current)

[Speed]: 4600 r.p.m

[Temperature range]:-10 ... 70 °C

[Life expectancy]: 25 ° c L10 life expectancy of 50,000 hours

[Bearing]: maintenance-double ball bearing

[Direction of rotation]: air discharged from the bracket, facing the rotor counterclockwise

[Connection]: + Red-Black: yellow (white) 3-wire terminals

[Protection]: overload protection, fault-protected and locked-rotor locks flow protection

[Maximum air volume]: 18.3 CFM

[Minimum air pressure]: 0. 51.2 Pa

[Noise indicators]: 34.0 dB (a)

[Material material]: glass-fibre reinforced plastic, PBT housings, PA blade, environmental certification

Power: 3.12

W

Speed: 4600RPM

Airflow: 18.3CFM 0.52 cubic meters / minute

Pressure: 51.2pa

Noise: 34DBA

Temperature:

-20 ~ 75

Life:

50,000 hours

NW: 45G
