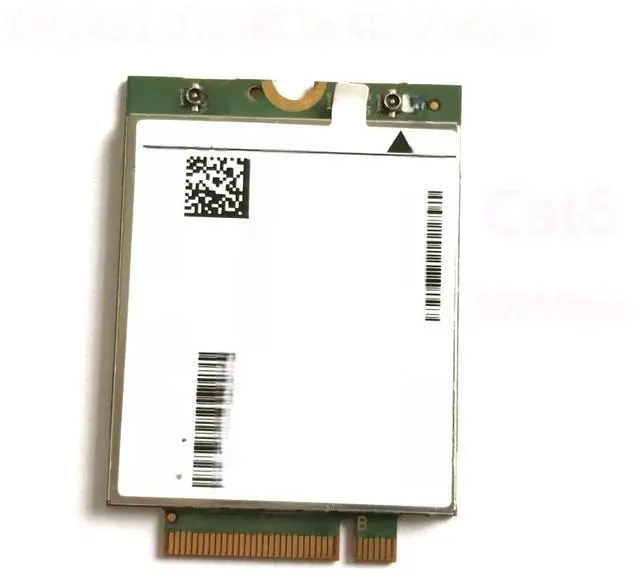

For EM7455 DW5811e LTE-FDD LTE-TDD 4G Module 4G Card Cat6 For Laptop PN MM9JH

High-concerned chemical:None
Card Type Device:4G Card
Application:Laptop
Wireless Protocol:LTE
Transmission Rate:300M
Package:Yes
Kind:Internal
Interface Type:NGFF
Type:WireLess
Certification:CE,FCC
Model Number:EM7455 DW5811e
Battery Included:No
Origin:Mainland China
the sierra wireless em7455 module is the first cat 6 module in siera wireless em series. it supports 15 (!) different lte bands in the regions americas and emea. the em7455 will allow a maximum downlink speed of 300 mbps and a maximum uplink speed of 50 mbps.


the em7455 supports 4g global networks, including lte advanced, with automatic fall back to 3g networks.




sierra wireless airprime em7455
sierra wireless airprime em7455 technical specifications:
* category: 4g module
* manufacturer: sierra wireless
* chipset: qual comm
* form factor: pcie m.2
* pins: 52-pin
* frequency bands
- lte fdd: band b1-b5, b7, b12, b13, b17, b20, b25,b26, b29, b30, b41
- umts/hspa+: b1, b2, b3, b4, b5, b8
* technologies: umts,hsdpa,hspa+,lte
* max download speed: 300 mbps
* max upload speed: 50 mbps
* temperature: -10 o c to 55 o c
* certifications/regulatory: planned: fcc, ic, ce, ncc, gcf, ptcrb
* carriers approved: planned: at&t, verizon, sprint, vodafone, telefonica, orange
* connectors: main, aux/gnss, gnss
* satellite systems: gps, glonass, beidou, galileo
* modes: standalone, supl 2.0, xtra 3.0
* contrl options: apis, at commands
* voltage: 1.8v
* active antenna control: 4 pin
* dynamic power control: 1 pin
* interfaces: "usb 3.0, usb 2.0 high speed"
* sim interface: 2 x 1.8v or 3v
* audio: pcm/i2s**
other interfaces: main radio disable, gnss disable, flash led output, wake on wan, reset
* dimensions: 42 x 30 x 2.3 mm
