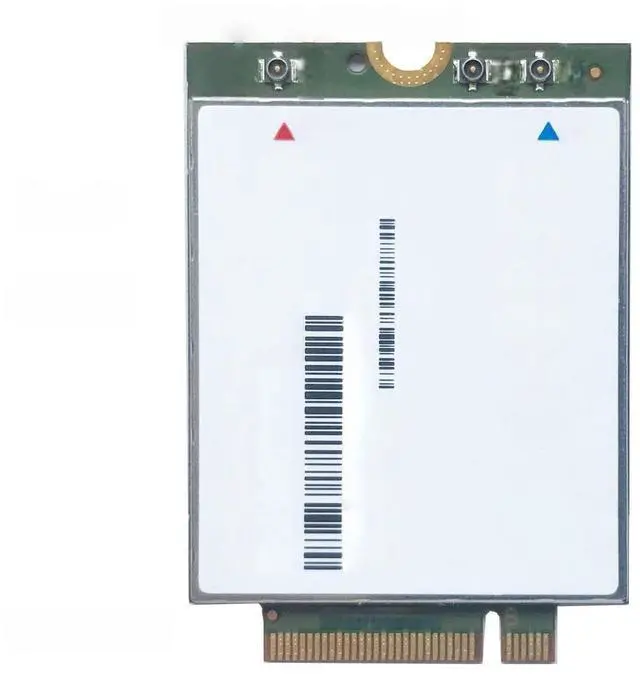

For EM7430 Cat6 FDD-LTE TDD-LTE 4G Module 4G Card M.2

High-concerned chemical:None
Card Type Device:4G Card
Application:Laptop
Wireless Protocol:LTE
Transmission Rate:300Mbps
Package:Yes
Kind:Internal
Interface Type:M.2
Type:WireLess
Certification:CE,FCC
Model Number:EM7430
Battery Included:No
Origin:Mainland China
this lte-advanced cat-6 embedded module delivers up to 300 mbps download speed and supports most 4g lte bands in the market providing coverage for asia pacific on a single sku. with automatic fallback to 3g networks and integrated gnss receiver (gps, glonass, beidou, and galileo satellite systems supported), the em7430 is ideal for networking and telematics applications.
coupled with the most operator certifications in the industry and network switching capability, em7430 allows customers to change their network provider anytime, providing more flexibility in manufacturing.
em7430 technical specifications:
* category: 4g module
* chipset: qualcomm mdm9230
* form factor: pcie m.2
* pins: 52-pin
* frequency bands
- lte fdd: band b1, b3, b5, b7, b8, b18, b19, b21, b28, b38, b39, b40, b41
- umts/hspa+: b1, b5, b6, b8, b9, b19
- td-scdma b39
* technologies: umts,hsdpa,hspa+,lte
* max download speed: 300 mbps
* max upload speed: 50 mbps
* temperature: -10 º c to 55 º c
* certifications/regulatory: planned: jrf/jpa, ncc
* carriers approved: planned: docomo, telstra
* connectors: aux/gnss, gnss
* satellite systems: gps, glonass, beidou, galileo
* modes: standalone, supl 2.0, xtra 3.0
* contrl options: apis, at commands
* voltage: 1.8v
* active antenna control: 4 pin
* dynamic power control: 1 pin
* interfaces: "usb 3.0, usb 2.0 high speed"
* sim interface: 2 x 1.8v or 3v
* audio: pcm/i2s**
other interfaces: main radio disable, gnss disable, flash led output, wake on wan, reset
* dimensions: 42 x 30 x 2.3 mm
