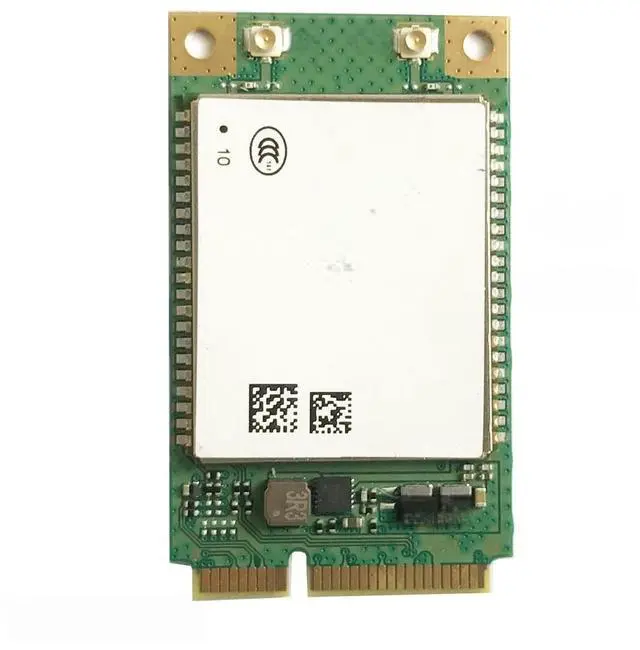

For L710-CN 4G Card TDD-LTE FDD-LTE Cat4 mini PCI-E LTE Module

High-concerned chemical:None
Card Type Device:4G Card
Application:Laptop
Wireless Protocol:LTE
Transmission Rate:150Mbps
Package:Yes
Kind:Internal
Interface Type:Mini PCI-Express
Type:WireLess
Certification:CE,FCC
Model Number:L710-CN
Battery Included:No
Origin:Mainland China
l710 series are lga-packed lcc wireless communication modules which support 5 modes (fdd-lte/tdd-lte/wcdma/ td-scdma/gsm) and 8 bands. the modules support fdd/tdd based lte network.
the network connection speed of fibocom l710-cn mini pcie modules is up to cat4 150mbps for downloading and 50mbps for uploading, which makes them suitable for the mobile network. fibocom l710-cn series can be widely used in intelligence meter, telematics, security, gateway etc.
 l710(l710-cn) mini pcie specifications and features:
* lte cat4 module
* form factor: mini pcie or lga
* supported frequency bands:
- 4g lte fdd: band 1, 3, 8
- 4g lte tdd: band 38, 39, 40, 41
- wcdma: band 1,8
- td-scdma: band 34, 39
- gsm/gprs/edge: 900/1800mhz
* data rates:
- lte fdd: 150mbps dl, 50mbps ul
- lte tdd: 112mbps dl, 10mbps ul
- umts: 384 kbps dl, 384 kbps ul
- hspa/hspa+: 21mbps dl, 5.76mbps ul
- td-scdma: 4.2mbps dl, 2.2mbps ul
- edge: 236.8kbps dl, 236.8kbps ul
- gprs: 85.6kbps dl, 85.6kbps ul
* tx power
- lte fdd 22.5dbm
- lte tdd 22.5dbm
- wcdma 22.5dbm
- td-scdma 22.5dbm
- gsm 900 32.5dbm
- dcs 1800 29.5dbm
* mux: basic mode
* sms: mo/mt text and pdu modes
* cell broadcast
* functional interface
- sim card: 1.8v/3v x 1
- usb 2.0 x 1
- multiple profiles over usb
- uart x 1
- 1 x lpg
- eint
- system indicator
- mux over uart1
* driver: win xp/7/8.1/10, linux 2.6.18 above
* at command setfibocom proprietary at commands/gsm 07.05/gsm 07.07
* operating voltage: dc 3.0v ~ 3.6v, typical 3.3v
* operating temperature-40 ~ +85
* storage temperature -40°c +85°c
* approval: rohs/ccc/srrc/nal
* size: 50.8×29.85×3.3 mm
