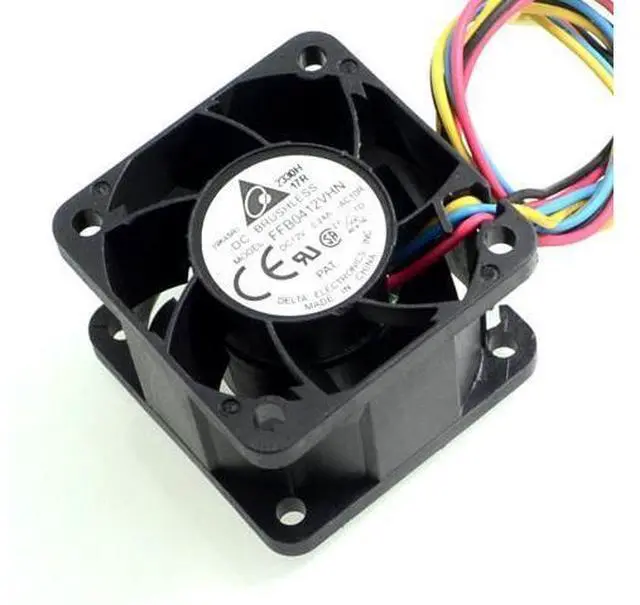

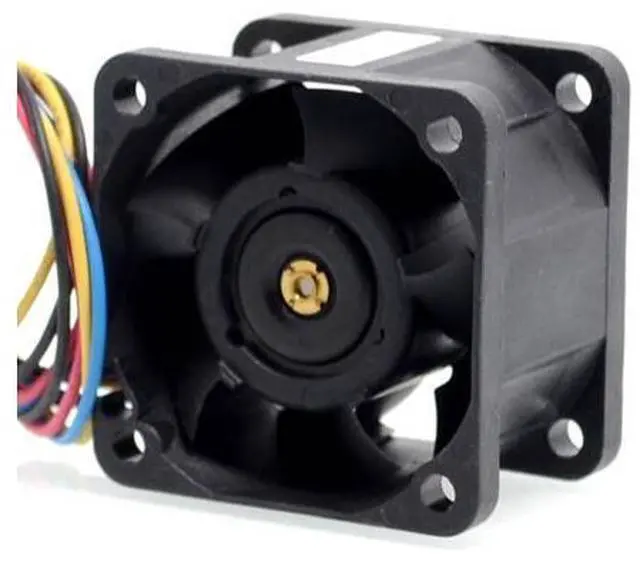

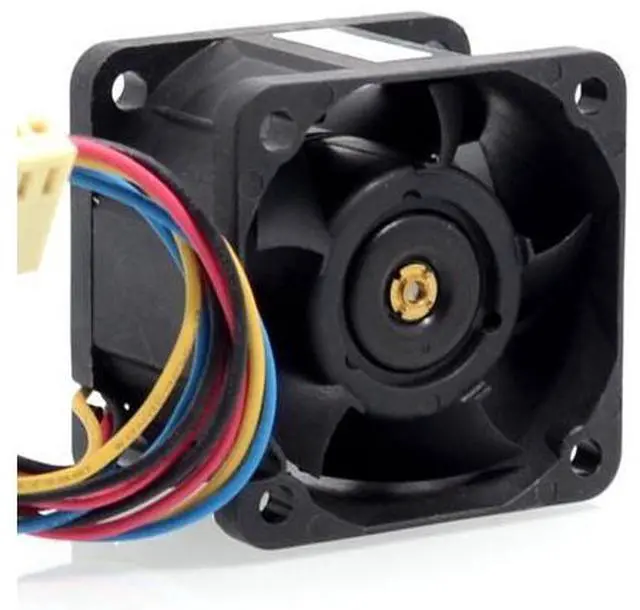

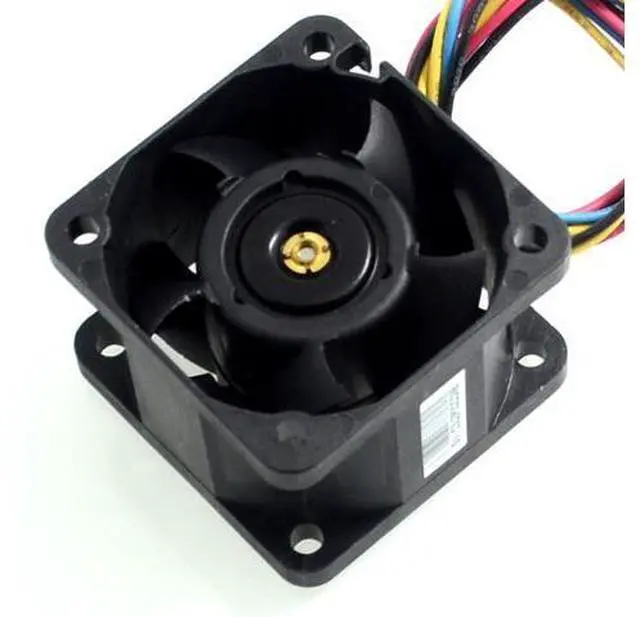

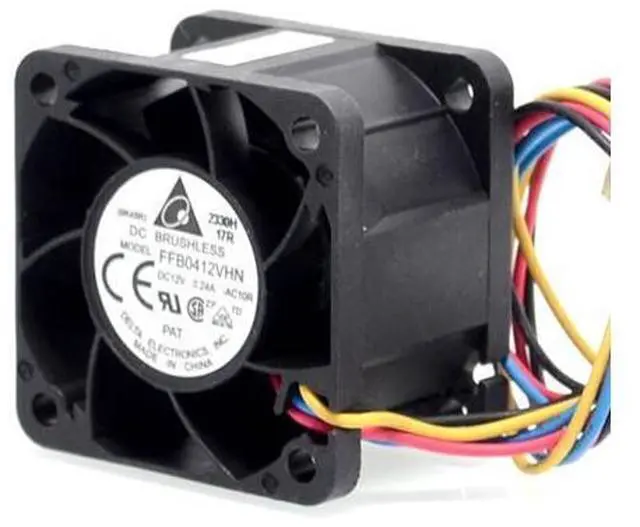

2pcs FFB0412VHN 4028 4cm 12V 0.24A PWM DC cooling fan speed control 40*40*28mm
Limited time offer, ends 07/26 By CircuitNest
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
[
Dimensions ]: 40 × 40 × 28mm[
Rated voltage ]: DC12V[
Voltage Range ]: DC 7.0V - 13.6V [
Input Power ]: 0.24
A[ Rated speed ]: 9500 r. p.
m[ Temperature Range ]: -10.. 70 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 50, 000 hours
L10[ Bearings]: Maintenance- double ball bearing[
Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: + Red -
Black signal: blue ( Blue line speed, non-alarm line, it is necessary to pay attention to ) the line is about 10 cm[
Maximum amount of wind ]: 26.8 m / h? [
Motor Protection ]: overload, wrong level protection and stall protection locks flow[
Minimum pressure ]: 0.. 120 Pa[
Noise index ]: 41.9 dB (A) [
Material Material ]: Glass fiber reinced plastic, PBT housing, PA blade[
Function Description ]: E external rotor DC fans, complete electronic commutation components
Dimensions ]: 40 × 40 × 28mm[
Rated voltage ]: DC12V[
Voltage Range ]: DC 7.0V - 13.6V [
Input Power ]: 0.24
A[ Rated speed ]: 9500 r. p.
m[ Temperature Range ]: -10.. 70 °
C[ Life expectancy ]: 25 ° C when the life expectancy of 50, 000 hours
L10[ Bearings]: Maintenance- double ball bearing[
Rotation]: air discharged from the stent, in the face of the rotor counterclockwise rotation[
Wiring ]: + Red -
Black signal: blue ( Blue line speed, non-alarm line, it is necessary to pay attention to ) the line is about 10 cm[
Maximum amount of wind ]: 26.8 m / h? [
Motor Protection ]: overload, wrong level protection and stall protection locks flow[
Minimum pressure ]: 0.. 120 Pa[
Noise index ]: 41.9 dB (A) [
Material Material ]: Glass fiber reinced plastic, PBT housing, PA blade[
Function Description ]: E external rotor DC fans, complete electronic commutation components
