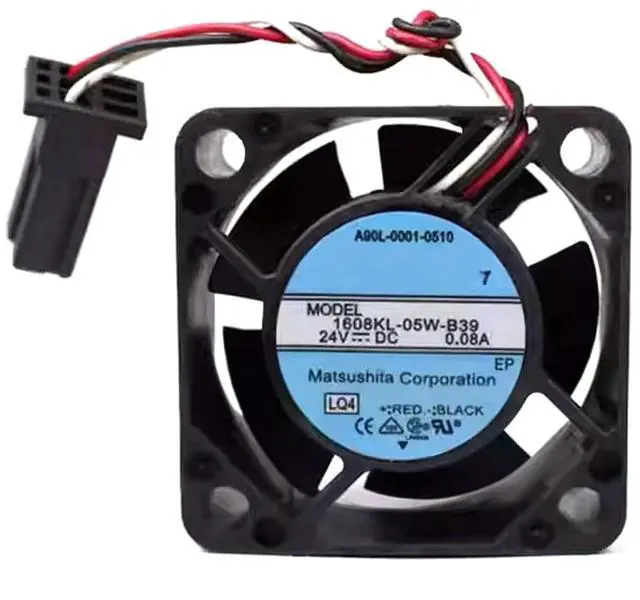

40MM Fan DC24V 1.92W 0.08A 1608KL-05W-B39 4CM 4020 40 * 40 * 20MM Speed 6500RPM Fanuc Machine Cooling Fan (3pin)
Limited time offer, ends 08/30 By CircuitNest
- Model: 1608KL-05W-B39; Size: 40x40x20MM (4 * 4 * 2CM); Voltage: DC24V; Current: 0.08A; Power: 1.92W
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model: 1608KL-05W-B39

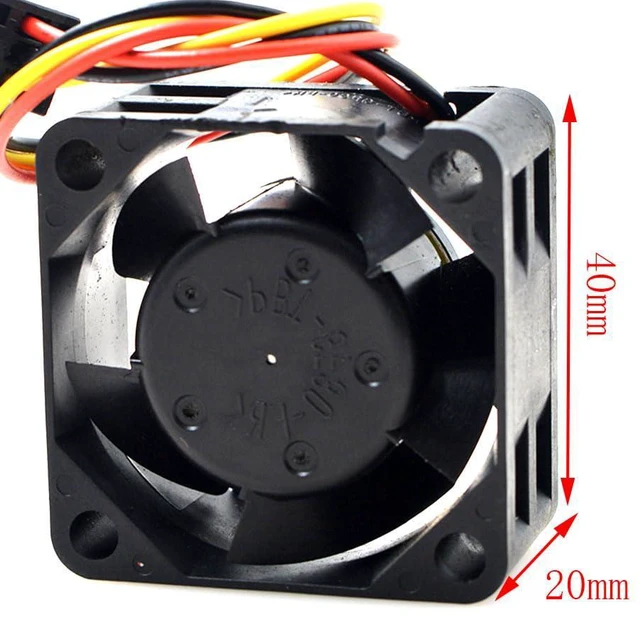

Size: 40 * 40 * 20MM
Voltage: DC24V
Bearing: High precision double bearing
Current: 0.08A
Power: 1.92W
Speed: 6500RPM
Airflow: 7.4CFM 0.21 cubic meters per minute
Wind pressure: 42.2 pa
Noise: 25.5DBA
Environmental temperature: - 20~75°
Service life: 50000 hours
Features: Overwhelmingly long working life, with an average time between failures of 180000 hours; Uncompromising high-precision and high-quality component construction
Service life: 18.0000 hours (in an environment of 25 and 45-85% relative humidity)
Fan frame: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant;
Fan blade: injection molded in one go, PBT+30% fiberglass+VO grade flame retardant;
Fan rotation direction: counterclockwise when viewed from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to+70 degrees Celsius;
Storage temperature: -40 ° C to+70 ° C;
Bearings: high-precision ball bearings;
Power supply range: plus or minus 15% of the rated power supply;
Insulation resistance: greater than 500 megaohms;
Voltage endurance: leakage current 0.5 mA 500V/1 minute; 1PCS Fan
Size: 40 * 40 * 20MM
Voltage: DC24V
Bearing: High precision double bearing
Current: 0.08A
Power: 1.92W
Speed: 6500RPM
Airflow: 7.4CFM 0.21 cubic meters per minute
Wind pressure: 42.2 pa
Noise: 25.5DBA
Environmental temperature: - 20~75°
Service life: 50000 hours
Features: Overwhelmingly long working life, with an average time between failures of 180000 hours; Uncompromising high-precision and high-quality component construction
Service life: 18.0000 hours (in an environment of 25 and 45-85% relative humidity)
Fan frame: one-time injection molding, PBT+30% fiberglass+VO grade flame retardant;
Fan blade: injection molded in one go, PBT+30% fiberglass+VO grade flame retardant;
Fan rotation direction: counterclockwise when viewed from the direction of the fan blades;
Operating temperature: -10 degrees Celsius to+70 degrees Celsius;
Storage temperature: -40 ° C to+70 ° C;
Bearings: high-precision ball bearings;
Power supply range: plus or minus 15% of the rated power supply;
Insulation resistance: greater than 500 megaohms;
Voltage endurance: leakage current 0.5 mA 500V/1 minute; 1PCS Fan
