Specification
1. The Mode : 4PIN 10mm Width Transparent Connector Kit .

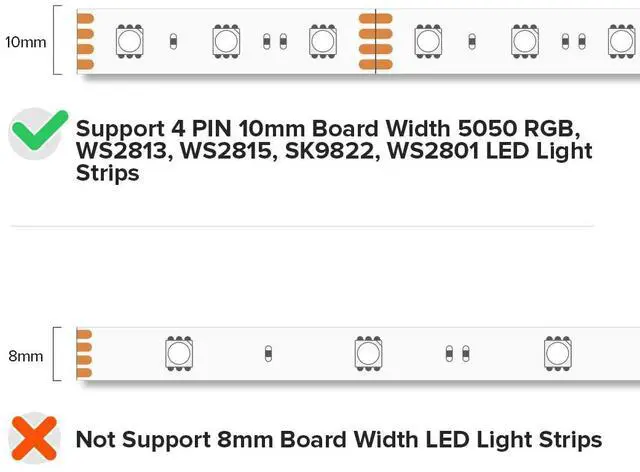

2. Suitable for 4PIN FPCB board width :10mm .
3. Support LED Strip: 4pin WS2815 / WS2813 / WS2801 / SK9822/ APA102C / 5050SMD-RGB / DMX512 / Addressable Chasing Color SMD LED Strip Light 10mm 0.39in Width.

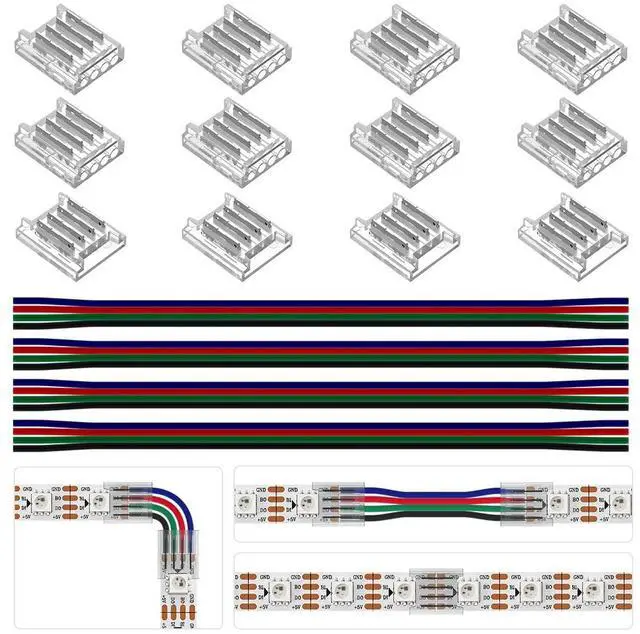

4. Package content: 8pcs Corner Connector , 4pcs Gapless Solderless Connector , 4pcs 15cm Long 22AWG Extension Wires .
5. Points for attention : The connector is disposable and must be broken before LED strip can be pulled out.
6. Multiple Uses: Extend your strip light, LED strip Splicing ,corner connection ,connect the controller or power supply directly.

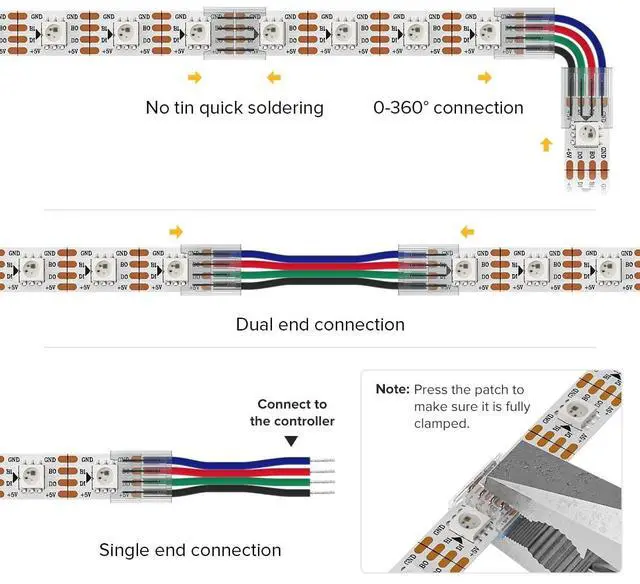

Different DIY connectors with different connection methods

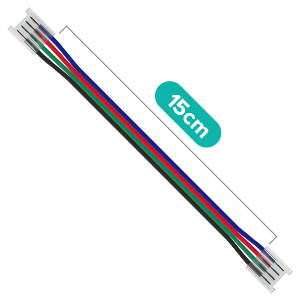

Dual End Connector

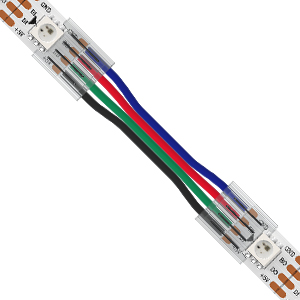

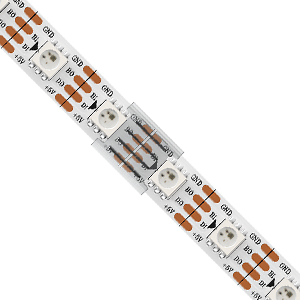

Gapless Connector

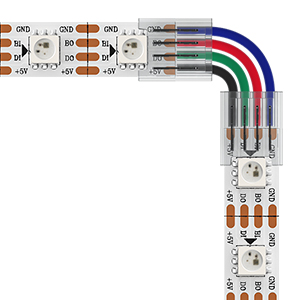

L Shape Connector

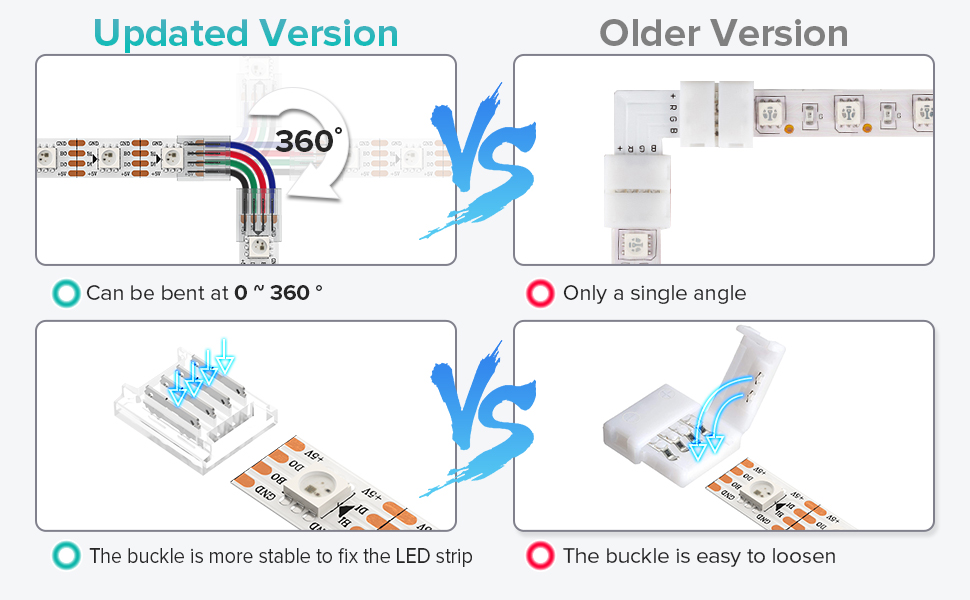

Comparison Before And After The Upgrade

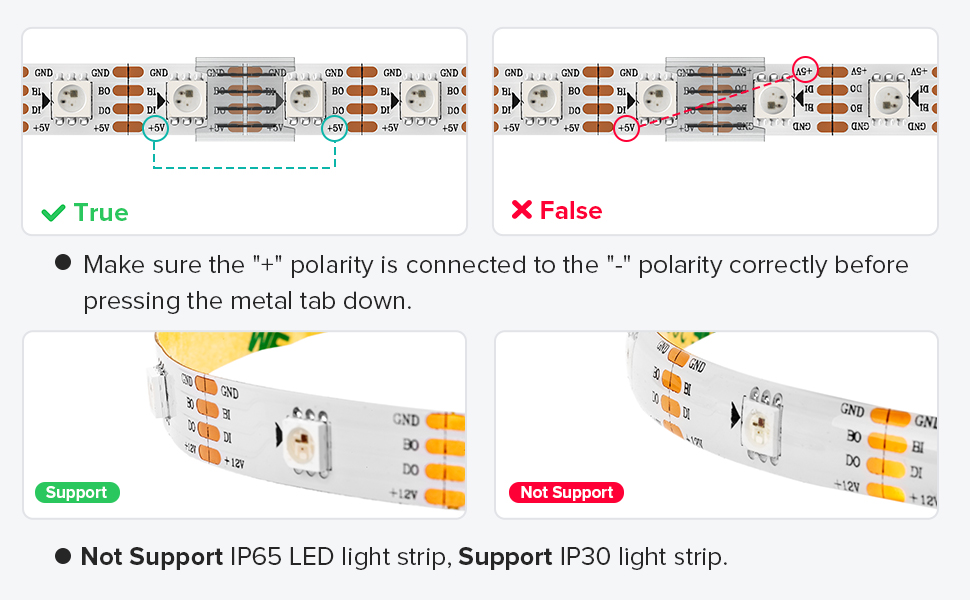

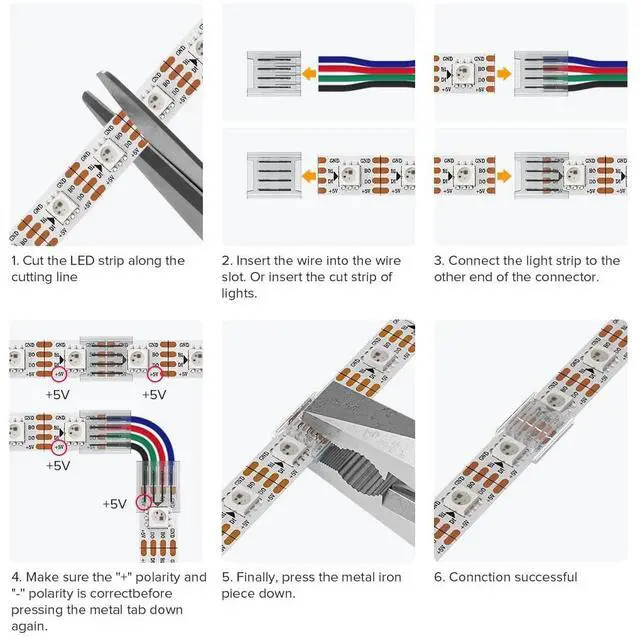

Installation Details And Precautions Of DIY Connector

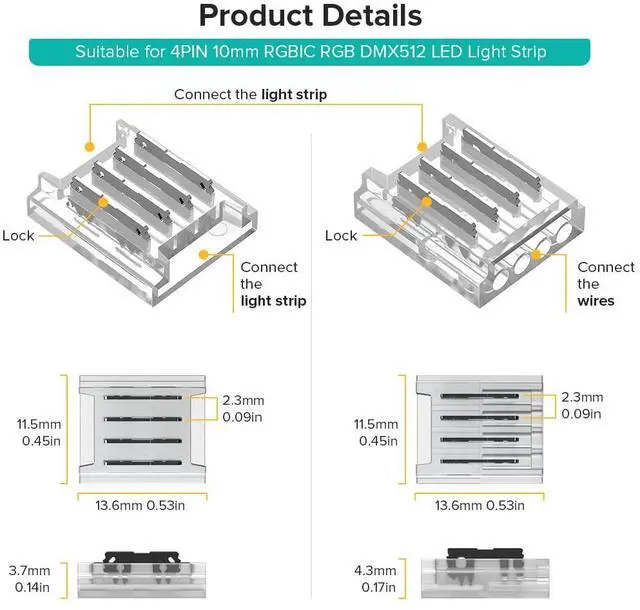

Product Details

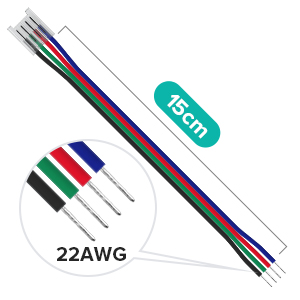

Length
- Wire length : 15cm (5.91inch)
Wire specifications size
- Wire specifications size : 22AWG

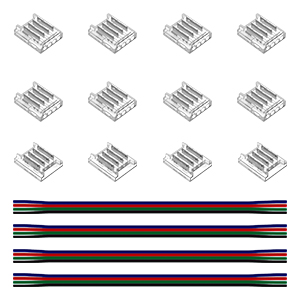

Package
- 8pcs Corner Connector .
- 4pcs Gapless Solderless Connector .
- 4pcs 15cm Long 22AWG Extension Wires .
2PIN ~ 6PIN LED Accessories
2PIN/3PIN/4PIN/5PIN/6PIN LED Strip Accessories
DIY Transparent Solderless Connector Kit And Amplifier
Wide Range of Uses
BTF-LIGHTING US is the only authorized seller of the BTF-LIGHTING brand on the . The shop mainly deals in 2PIN/3PIN/4PIN/5PIN/6PIN LED Strip Accessories And Amplifier,Dream Color LED strips, FCOB LED strips , LED matrix, power supplies, controllers. Committed to building a smart home, through different combinations to make the light strip suitable for a variety of use scenarios, and provide customers with better choices.
2PIN Connector And Cable Wire
3PIN Connector And Cable Wire
2PIN~5PIN JST Connector
4PIN Connector And Cable Wire
5/6PIN Connector/Cable Wire
No IC LED Signal Amplifier
Dream Color LED Amplifier
