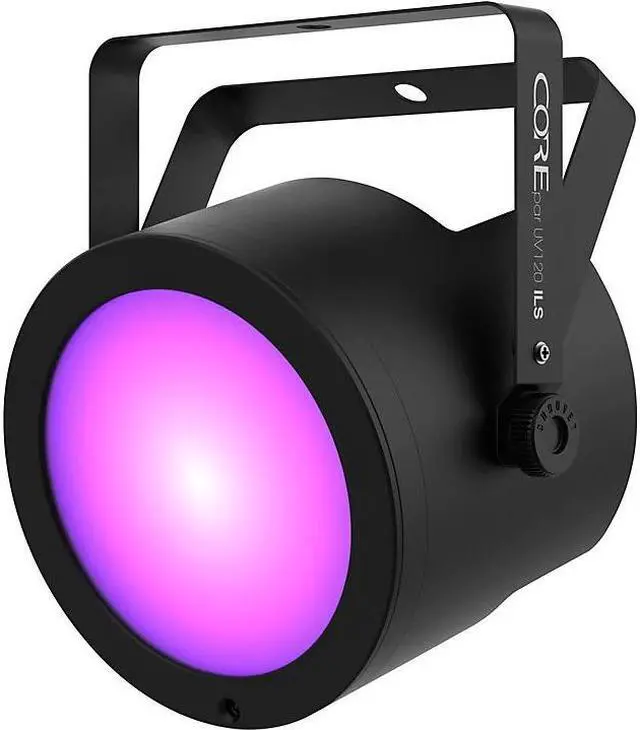

Chauvet DJ COREpar UV120 ILS

Mobile entertainers and lighting technicians in need of a UV wash light will be impressed with the CHAUVET DJ COREpar UV120 ILS, a low-profile LED PAR that's powered by a 120W ultraviolet COB LED that generates remarkably bright UV light, well suited for clubs, bars, concerts, special events, parties, and more. The Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types, allowing any ILS-enabled fixer to be controlled wired or wirelessly. The COREpar UV120 ILS features Sound Active and Auto programs. The fixture is flicker free, making a great choice for on-camera work, and it is equipped with a universal, auto-sensing power supply, which is compatible with the IRC-6 wireless remote (available separately) and D-Fi USB (available separately) for wireless primary/secondary and DMX applications.



Compact ultrawide UV wash with COB (Chip-on-Board) technology

Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types

D-Fi USB compatibility for wireless primary/secondary or DMX control

Included magnetic fresnel lens allows the beam to go from ultrawide to narrow in seconds

Withstand the harshness of traveling from gig to gig with a robust housing

Sit-flat housing design hugs the floor and features power and DMX outlets on the side of the unit

Achieve flicker-free video operation with high-frequency LED dimming

Save time running cables and extension cords by power linking multiple units

Point-and-shoot operation of static colors and automated programs with the optional IRC-6 remote

Create customized colors using the built-in LED display

Achieve smooth LED fading with built-in dimming curves

Easily transports in the optional CHS-40 VIP Gear Bag



FEATURES:



Integrated Lighting System (ILS)

Generate a Bright UV Light

DMX and Power-Linking Capable

D-Fi USB Compatibility for Wireless DMX



SPECIFICATIONS:



Light

Light Type PAR

Light Source 1 x Ultraviolet LED (COB) - 120 W / 3.34 A

Light Source Life Expectancy 50,000 Hours

Colors Ultraviolet

Beam Angle 44°

21° (with Installed Lens)

Field Angle 94°

34° (with Installed Lens)

Shutter / Strobe Electronic

Dimming Electronic, 0 to 100%

Performance

Operating Modes DMX, Primary/Secondary, Sound-Active

Macros / Programs None

Effects Strobe

Strobe Rate 0 to 20 Hz

Gobos None

Control

Control Protocols DMX512

DMX Channel Modes 2 Mode(s):

1 / 5-Channel

Remote Control D-Fi USB, IR Remote (with Optional Equipment)

App Compatible No

Connectivity

Inputs/Outputs 1 x XLR 3-Pin DMX Input

1 x XLR 3-Pin DMX Output

1 x USB Type-A Remote Input

Power

AC Input Power 100 to 240 VAC, 50/60 Hz

AC Power Connector Input: 1 x IEC

Output: 1 x Edison

Power / Current Consumption 120 VAC: 119 W / 1.5 A

230 VAC: 118 W / 0.
