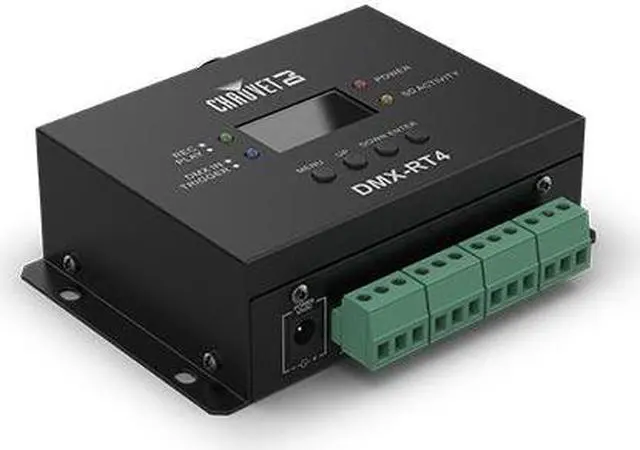

Chauvet DJ DMX-RT4 | DMX Recorder and Playback

Recording and playing back DMX programming has never been easier than with DMX-RT4. This robust DMX recording and playback device has 4 independent triggers for playback and each trigger can be programmed and activated separately. Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors. The USB-C connector lets you copy, backup and transfer show files while a standard 3.5mm headphone jack connects to external audio systems for amplified playback. Keep your creations safe and secure with password protection. DMX-RT4 also supplies DC voltage through terminal block to power specific triggers.



FEATURES:



DMX recording and playback device with 4 independent triggers



Each trigger can be programmed and triggered separately



Copy, backup and transfer show files using the USB-C connector



Standard headphone connector (3.5mm) connects to external audio systems for amplified playback



Password protection ensures shows will not be altered



Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors



Supplies DC voltage through terminal block to power specific triggers



Specifications:



DMX Channels: 3-pin XLR

Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)

Power and Current:

1 W, 0.03 A @ 120 V, 60 Hz

1 W, 0.03 A @ 230 V, 50 Hz

Weight: 0.4 lb (0.2 kg)

Size: 4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)

Approvals: CE, UKCA, RoHS

Compatible audio formats: MP3 (32-320kbps), WAV (8 or 16bit only)

Onboard memory: 32 GB

Filename max length (MP3/WAV): 12 characters

Filename max length (show file): 11 characters

Trigger Type: auto, toggle, N/O or N/C

Terminal Block output: 12 VDC, 100 mA

WHAT'S INCLUDED

DMX-RT4

External power supply

Quick Reference Guide
