Chauvet DJ 4Bar Quad ILS | RGBA LED Wash System with Footswitch | ILS & D-Fi USB Compatible

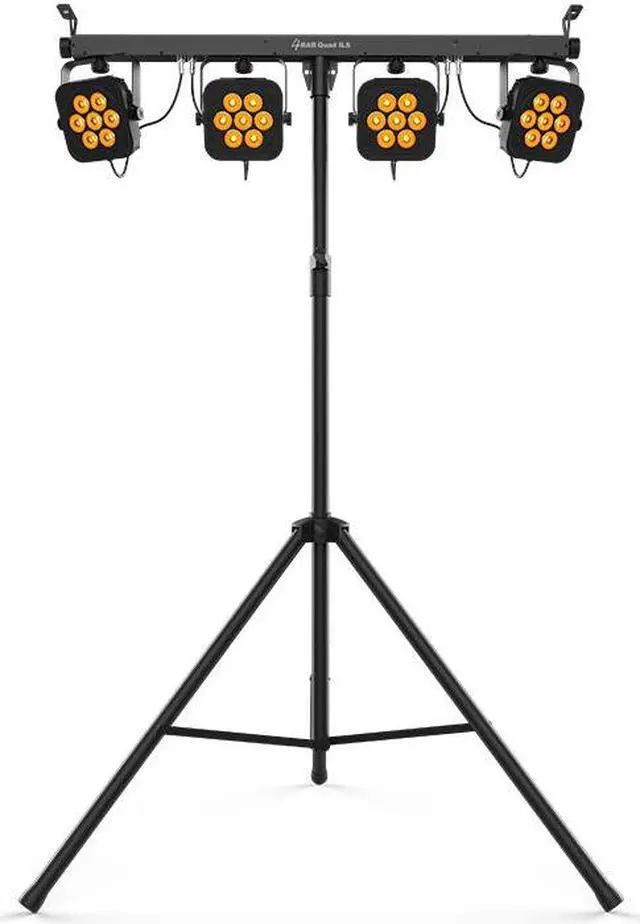

All-in-One RGBA LED Wash System Chauvet DJ 4Bar Quad ILS is a complete wash lighting system featuring four adjustable RGBA LED heads, built-in wireless control, and ILS/D-Fi USB compatibility. With rich amber output, a tripod stand, and a wireless footswitch included, it's the perfect portable lighting solution for DJs, events, and mobile performers. Chauvet DJ 4Bar Quad ILS Competitive Differences

• Four individually adjustable RGBA pods for full-stage coverage
• ILS and D-Fi USB compatibility for synchronized wireless control

Chauvet DJ 4Bar Quad ILS Description The 4Bar Quad ILS delivers a professional lighting solution in a single, easy-to-deploy package. Each of the four pods is fitted with seven 3.5W RGBA LEDs, producing a rich spectrum of colorsâ??including warm, natural tones thanks to dedicated amber emitters. This fixture integrates seamlessly into Chauvet DJâ??s ILS (Integrated Lighting System) ecosystem, allowing for coordinated light shows across compatible fixtures with minimal programming. It also supports wireless DMX via D-Fi USB (sold separately) and comes with a wireless footswitch for out-of-the-box controlâ??ideal for performers who need hands-free lighting changes. The sit-flat design features built-in truss mounting bolts and includes L-brackets for added versatility. With its included tripod and carrying bags, setup and teardown are fast and easyâ??making it perfect for mobile DJs, wedding setups, and small venue installs. Model Features

• 28 high-intensity RGBA LEDs (3.5W each)
• ILS compatibility for coordinated control with other Chauvet fixtures
• D-Fi USB compatibility for wireless DMX or Master/Slave control
• Included wireless footswitch for hands-free operation
• Individually adjustable heads for full-room or stage coverage
• Amber LEDs produce natural, warm tones and rich color mixing
• Tripod stand and carry bags included for fast setup and mobility
• Mounts easily to truss using built-in bolts or L-brackets

Model Specifications

• DMX Channels: 4, 6, or 19
• DMX Connectors: 3-pin XLR
• Light Source: 28 x 3.5W RGBA LEDs (50,000-hour life)
• Beam Angle: 14°
• Field Angle: 23°
• Illuminance: 2,353 lux @ 2 m (per pod)
• Strobe Rate: 0 to 20 Hz
• Input Voltage: 100â??240V AC, 50/60 Hz (auto-ranging)
• Power Consumption:
  • 80W, 1.2A @ 120V
  • 78W, 0.6A @ 230V
• Fixture Dimensions: 45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Fixture Weight: 12.2 lb (5.5 kg)
• Tripod Height: 7 ft 4 in (2.2 m)
• Wireless Footswitch Range: Up to 100 ft (30.5 m)
• Operating Frequency (D-Fi): 2.412â??2.484 GHz
• Footswitch Battery: 9V
• Mounting: Built-in bolts, L-brackets (M10 mounting holes)
• Certifications: CE, RoHS, UKCA

What's In The Box

• Chauvet DJ 4Bar Quad ILS Fixture
• Power Cord
• Tripod Stand
• Tripod Carrying Bag
• Fixture Carrying Bag
• Wireless Footswitch
• L-Brackets (x2)
• Quick Reference Guide
