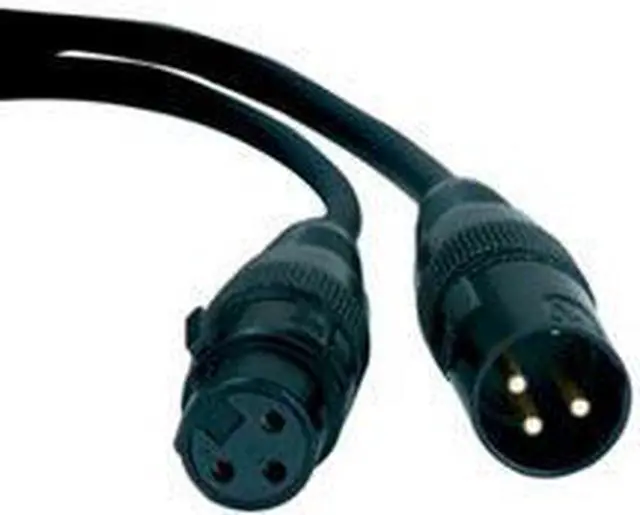

American DJ AC3PDMX5 ACCU 5ft DMX Cable

Product:   3
Pin DMX Cables  3
Pin DMX Cables:
AC3PDMX5 (5 Foot 3 Pin DMX Cable)
AC3PDMX10 (10 Foot 3 Pin DMX Cable)
AC3PDMX25 (25 Foot 3 Pin DMX Cable)
AC3PDMX50 (50 Foot 3 Pin DMX Cable)
AC3PDMX100 (100 Foot 3 Pin DMX Cable)

  3 Pin Male to 5
Pin Female XLR Cable:
AC3PM5PFM (3 Pin Male XLR to 5 Pin Female XLR Turnaround)

  Description:
  22 AWG stranded ( 0.15 x 19 ) tinned copper conductors polyethylene insulation
twisted pair polyethylene inner jacket Duofoil (100% coverage) and cotton
plus a tinned copper braid shield (85% coverage) PVC jacket.

American DJ ACCU  25ft DMX Cable (ADJ AC3PDMX25)

Physical Characteristics:
  Conductor:
Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter:. 0354"
Conduct or Material: TC-Tinned Copper

  Insulation:
  Insulation Material PE Polyethylene

  Lay Length:
Lay Length: 2.5"
Direction: Left Hand Lay
Twists: 4.8 per foot

  Inner Jacket:
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter:. 055"
Pair Color Code: Black/White

  Outer Shield:
Outer Shield Trade Name: Duofoil
Outer Shield Type: Tape/Braid

  Outer Shield Material:
Layer Number: 1
Material Trade Name: Dufoil Type: Tape Material: Aluminum
Foil-Polyester Coverage %: 100
Layer Number: 2
Material Trade Name: Dufoil Type: Braid Material: TC-Tinned
Copper Coverage %: 85

  Outer Jacket:
Outer Jacket Material: PVC-Polyvinyl Chloride

  Overall Nominal Diameter:
Overall Nominal Diameter:. 229"

  Mechanical Characteristics:
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2"
Maximum Recommended Pull Tension:
