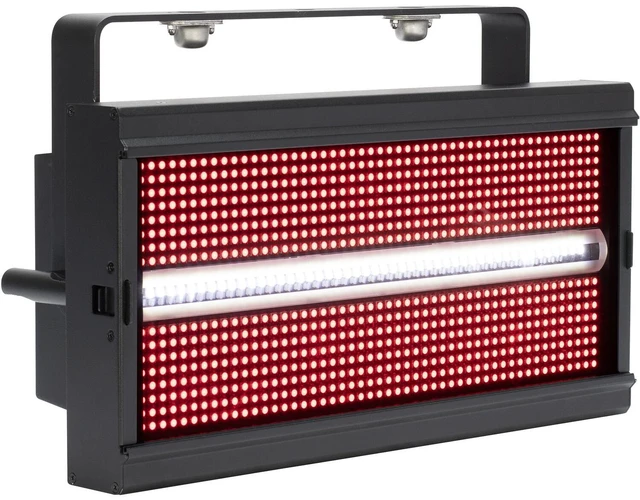

American DJ Jolt Panel FX2 IP20 Wash/Blinder/Strobe Light

The American DJ Jolt Panel FX2, an RGB and cool white LED blinder, wash, and strobe fixture well suited for large stages, nightclubs, live events, and touring. The fixture is equipped with 800 x 0.5W RGB SMD LEDs for color strobe, wash and eye candy effects as well as 48 x 5W white SMD LEDs located in the center of the fixture to create the traditional look of a strobe. Both types of LED are grouped into independent controllable zones (6 white and 40 color), allowing for the creation of eye-catching animated chase patterns. The rear panel offers 5-pin DMX I/O with locking power input and output for daisy-chaining data and power to several fixtures. The American DJ Jolt Panel FX2 includes a locking power cord and a frost filter. Note: An Omega bracket is available separately.

Benefits

• 800 x 0.5W RGB SMD LEDs + 48 x 5W Cool White SMD LEDs
• Color Temperature: Red: 620-630nm. Green: 515-525nm. Blue: 460-470nm. / Cool White: 6900-7400K
• CRI: 69.4
• 50,000 hour average LED life
• 40 x RGB LED zones
• 6 x cool white LED zones
• 25 built-in RGB LED program macros
• 9 built-in cool white LED program macros

Control

• Control Protocol: DMX, Aria X2, and RDM
• 10 DMX Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126, and 141 channel modes
• Dim Modes: 6 presets (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
• Dim Curves: 4 presets (Linear, Square Law, Inv Square Law, and S Curve)
• 0-100% smooth dimming
• Strobe, shutter, and pulse control
• Strobe Rate: 1 to 20 Hz
• With Wired Digital Communication Network
• Display: OLED display with 4-button touch menu

UPC: 810087372439
