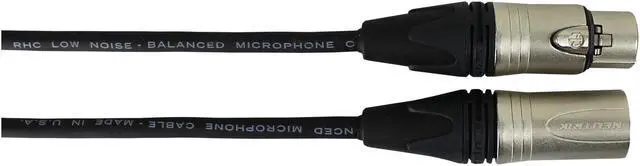

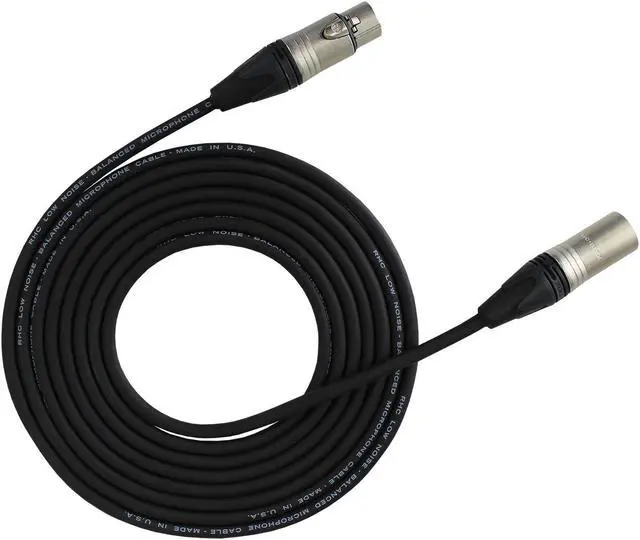

RapcoHorizon NM1-20 XLRM-XLRF Microphone Cable 20 Foot
- (2) 24 gauge center conductors
- Pure copper conductor and shield
- Neutrik NC3FXX and NC3MXX connectors
- Individually tested for performance and quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The RapcoHorizon NM1 Series Microphone Cables uses (2) 24 gauge bare copper center conductors and a serve shield for quiet operation. The outer jacket is a durable and flexible matte PVC compound. Features Neutrik NC3FXX and NC3MXX XLR connectors.
Features:
(2) 24 gauge center conductors
Utilizing a serve shield process for quiet operation yielding maximum flexibility
Matte jacket PVC material is very flexible yet durable with very low memory
Pure copper conductor and shield
Neutrik NC3FXX and NC3MXX connectors
Individually tested for performance and quality
SKU: NM1-20
Length: 20 Feet
Cable: MIC1
Conductor Gauge: (2) 24 gauge
Shield: Bare annealed copper serve
Shield Coverage: 95%
Jacket: Matte PVC
O. D. 0.230"
Capacitance: 21 pF/ft. @ 1 kHz
Cond. -Shield
Capacitance: 37 pF/ft. @ 1 kHz
Characteristic Impedance: 70 NOMINAL
D. C.
Resistance @ 20°C: 23/1000'
Features:
(2) 24 gauge center conductors
Utilizing a serve shield process for quiet operation yielding maximum flexibility
Matte jacket PVC material is very flexible yet durable with very low memory
Pure copper conductor and shield
Neutrik NC3FXX and NC3MXX connectors
Individually tested for performance and quality
Specifications
:SKU: NM1-20
Length: 20 Feet
Cable: MIC1
Conductor Gauge: (2) 24 gauge
Shield: Bare annealed copper serve
Shield Coverage: 95%
Jacket: Matte PVC
O. D. 0.230"
Capacitance: 21 pF/ft. @ 1 kHz
Cond. -Shield
Capacitance: 37 pF/ft. @ 1 kHz
Characteristic Impedance: 70 NOMINAL
D. C.
Resistance @ 20°C: 23/1000'
