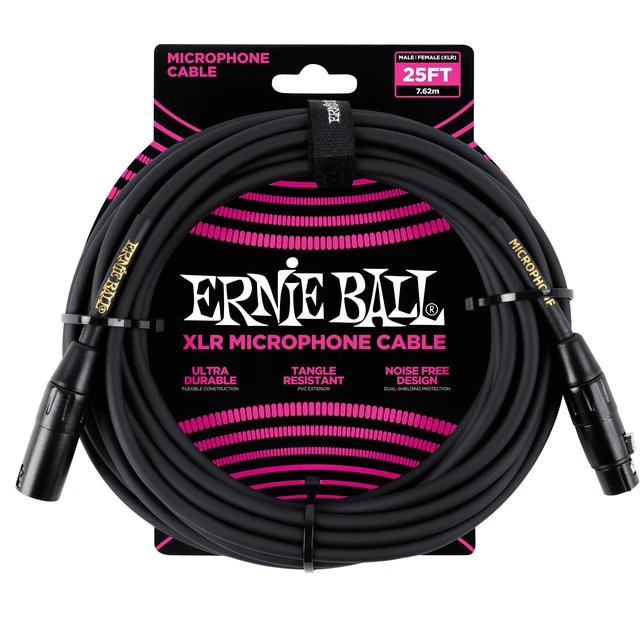

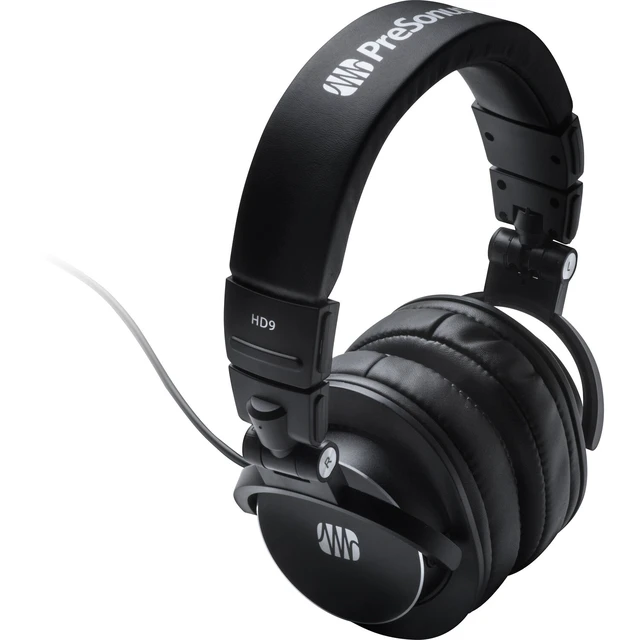

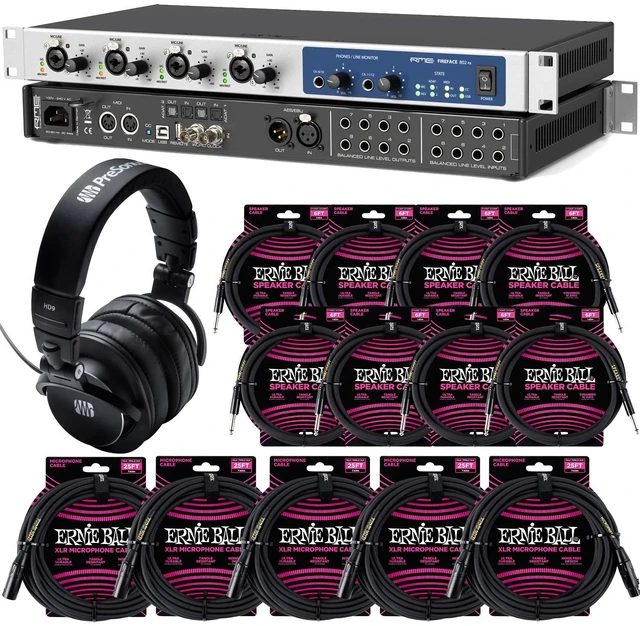

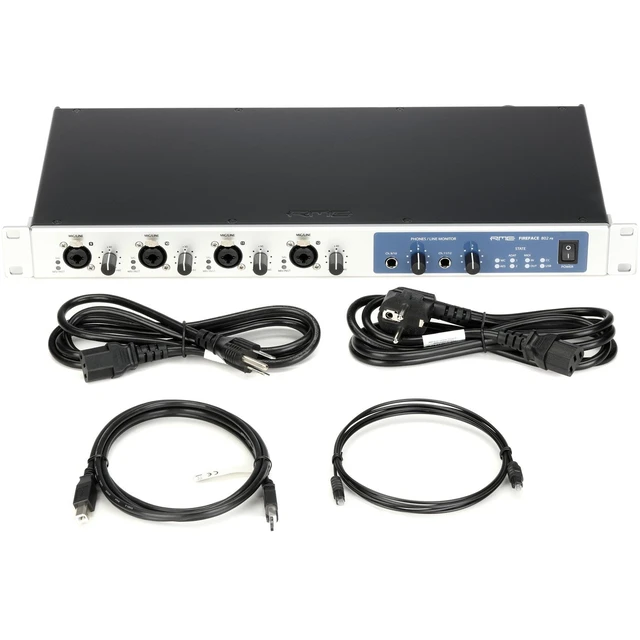

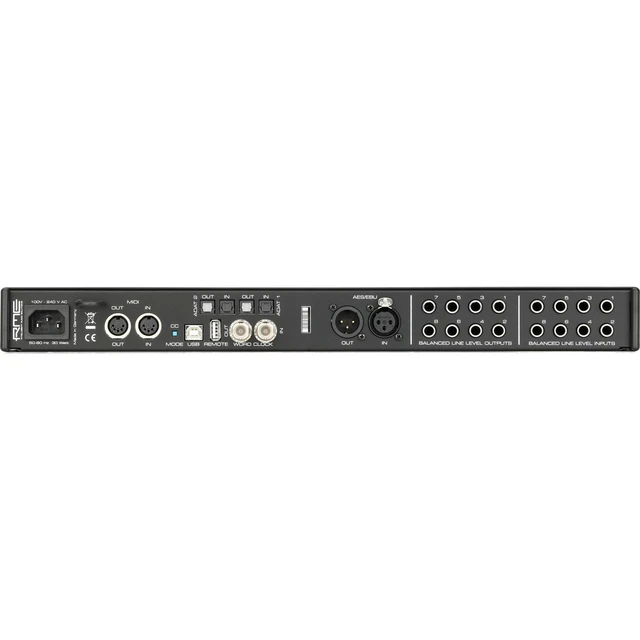

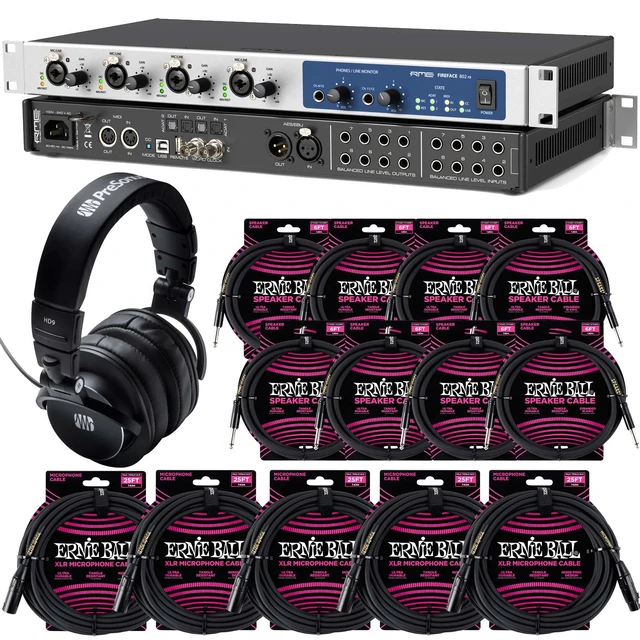

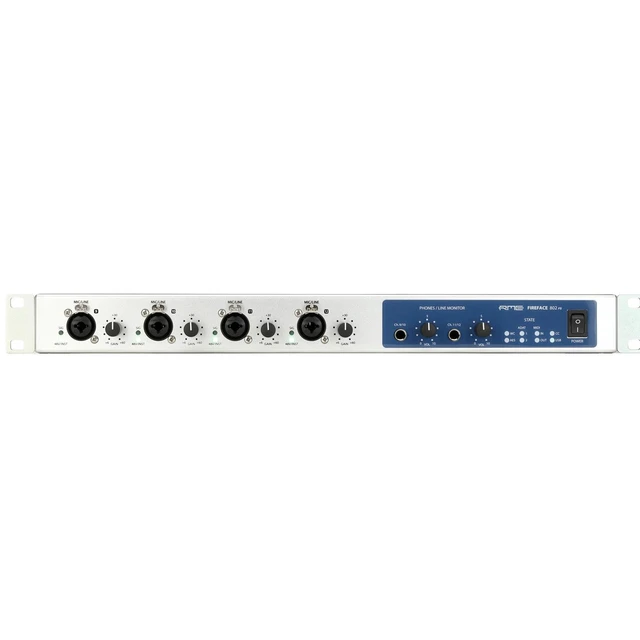

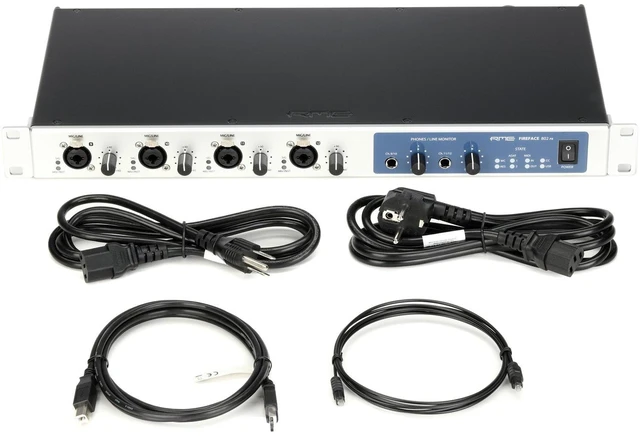

RME Fireface 802 FS 60-Channel USB, Presonus HD9, (8) ErnieBall 1/4, (5) ErnieBall XLR Bundle

The RME Fireface 802 FS is a comprehensive, 60-channel USB-B audio/MIDI interface tailored for discerning users who refuse to compromise on sound quality and stability, and who need ultralow-latency operation. Enclosed within a sleek 1 RU 19" design, the Fireface 802 FS incorporates a newly developed analog and digital board with four high-performance microphone/instrument/line preamps, reference-grade converters, a complete effects section, and operation at up to 192 kHz to ensure pristine audio reproduction and capture every nuance with exceptional clarity. Other professional features include active SteadyClock FS jitter suppression, individually switchable reference levels for all I/Os, DC-coupled outputs on all 8 analog line outputs, standalone functionality, DigiCheck metering and analysis toolbox, and seamless operation with Mac and Windows. On the front panel, the Fireface 802 FS showcases four high-performance XLR/TRS-combo inputs, accommodating microphone, instrument, and line signals with exceptional fidelity. Additionally, two stereo headphone jacks deliver a robust +17 dBu output level, ensuring ample volume even for high-impedance headphones. The back panel offers extensive connectivity options. Alongside MIDI and Wordclock I/O, you'll find two optical ADAT I/Os, an AES/EBU I/O, and eight balanced analog inputs and outputs operating at line level. The newly introduced Multi-Mode allows the two ADAT I/Os to function as separate optical S/PDIF inputs and outputs. The Fireface 802 FS also includes a switchable Class Compliant mode (CC) for operation with the TotalMix FX mixing/routing software for iPad, enabling users to control the interface from their iPad without any computer. Moreover, users can conveniently connect the ARC USB remote (available separately) via the USB-A port to control the TotalMix FX mixing/routing software.
802 vs 802 FS
Newly developed analog and digital board
Class Compliant Mode for use with iPadOScan be activated via a recessed push button directly at the back of the interface
Full 30 channels in USB 2.0 Class Compliant mode up to 192 kHz
SteadyClock FS: Jitter-immune, superstable digital clock
Triple AES/SPDIF I/O, like the UFX III with the new Multi-Mode
DC-coupled outputs for all 8 analog output channels for sending control voltages (CV) or Gate information to modular synthesizers
USB-A socket for ARC USB
Features
Reference-grade USB-B audio interface for live and studio use
30 x input: 12 x analog, 16 x ADAT, 2 AES3
30 x output: 12 x analog, 16 x ADAT, 2 AES3
4 x XLR/1/4" combo mic / line / Hi-Z analog inputs on front panel, +48V phantom power and gain control
8 x 1/4" TRS analog line in, 8 x 1/4" TRS analog line out
ADAT I/Os can be used as separate optical S/PDIF I/O
2 x high-power, low-impedance headphone output
Wordclock I/O, 5-pin DIN MIDI I/O with 16 channels, high-speed low-jitter MIDI
Clock modes slave and master
Standalone operation with setup recall
TotalMix for latency-free submixes and perfect ASIO Direct Monitoring
TotalMix FX: 3-band EQ, Low Cut, Reverb, Echo, Compressor, Expander, Auto Level
DIGICheck DSP: Level meter in hardware, peak, and RMS calculation
Universal power supply ensures worldwide compatibility
SteadyClock FS Reference-Class Digital Clocking
SteadyClock FS provides an excellent performance in all clock modes. Its highly efficient jitter suppression refreshes and cleans up any clock signal and provides the clock signal as reference clock at the word clock output.
The cleaned and jitter-freed clock signal can be used as reference clock in any application, regardless of the quality of the external clock signal.
USB 2.0 Class Compliant Mode for iPad
The Fireface 802 FS operates in two different modes: driver-based USB 2.0 and Class Compliant Mode (CC).
The Class Compliant mode is a standard that is natively supported by operating systems like Windows, Mac
