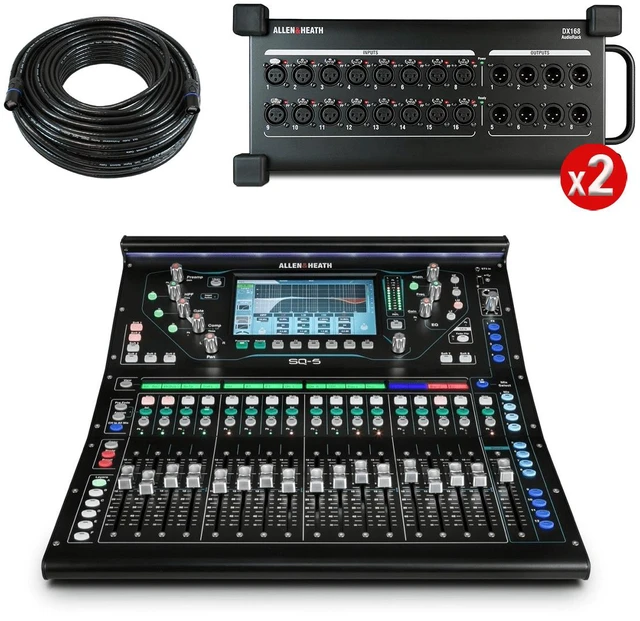

Allen & Heath SQ-5 - (2) Allen & Heath DX168 - GLS Audio 50-Feet Ethercon Compatible RJ45

The Allen & Heath SQ-5 is a 48-channel, 36-bus digital mixing console well suited for live sound, corporate A/V, recording studios, and houses of worship. The SQ-5 features 16+1 motorized faders and 16 professional-quality microphone preamps. There are also eight stereo FX engines with dedicated return channels and access to the RackExtra FX library. The mixer's 12 stereo outputs (configurable as groups or auxes) are well suited for in-ear-monitor setups, while the Auto Mic Mixing function offers quick and easy operation over multiple microphones for conferences, panel talks, and more. At the heart of the SQ-5 lies the 96 kHz XCVI Core FPGA engine, which delivers professional, high-resolution audio quality, ultra-low latency (less than 0.7 ms), variable bit depth for precision and noise performance, mix coherency down to the sample, and the power to handle high channel / mix counts and ample FX processing. The SQ's DEEP processing architecture allows you to hand-pick boutique compressor and preamp emulations and embed them directly within the mixer's inputs and mix channels, all without adding system latency or setup hassles. The front panel is centered around the mixer's 7" capacitive touchscreen and framed by an array of high-grip, illuminated encoders, which offer clear visual feedback and quick, hands-on control. You can drag-and-drop channels and mixes to any strip with custom naming and color coding on the strip display, allowing you to build a mix environment that mirrors your workflow. The SQ-5 offers softkeys, which can be freely assigned to any function for a customized and advanced workflow. The on-board recorder uses a USB Type-A port to record stereo and multitrack sessions to a flash drive. The recorder can also playback stereo and multitrack files, making it well suited for virtual sound checks and studio mixing. The SQ-5 offers expansion options via Allen & Heath's stage box expanders, or install an optional Dante or Waves card to adapt and expand using the latest digital technologies. SQ is fully compatible with the ME Personal Mixing System, allowing performers to take control of their own monitor mixes. Any number of ME-1 and ME-500 personal mixers can be daisy-chained from the mixer's SLink port, or from a connected remote expander. The Allen & Heath SQ-5 ships with a power cord.
Compact digital mixer for live, studio, and installation
48 input channels
16 local mic inputs (XLR)
Two 1/4 stereo inputs (TRS)
One 1/8" stereo input
36 total busses
12 stereo mixes (Aux or Group) + Main
PAFL bus
14 assignable local outputs (12 XLR + two 1/4 TRS)
AES digital output
Dedicated talkback mic input (XLR)
1/4" TRS headphone out with dedicated control
SLink EtherCON connection for remote audio using dSnake, DX, or gigaACE protocol (64x64 channels)
I/O port for option card (including 3rd party protocols Dante/Waves)
8 mute groups
8 DCA groups
8 stereo FX with dedicated FX returns
DEEP processing ready
RackFX effects suite
7" color touchscreen
8 assignable SoftKeys
Dedicated physical controls for channel processing (Gain, HPF Frequency, Gate Threshold, Compressor Threshold, Pan, EQ Gain/Frequency/Width)
16+1 faders with 6 layers for 96 assignable channel strips
Motorized faders for sends on faders, GEQ fader flip, and mix recall
16 backlit LCD channel-strip displays
Single-point metering
Integrated surface illumination
Single/dual footswitch control
Input channel linking for stereo sources
Patchable insert points
Input processing Preamp, HPF, Gate, PEQ, Compressor, Delay
Output processing PEQ, Graphic EQ, Compressor, Delay
Automatic mic mixing
31-band, real-time analyzer (RTA)
Quick copy/paste/reset for parameters
User permissions to restrict operator access
300 scene memories per show
Channel safes, global and
