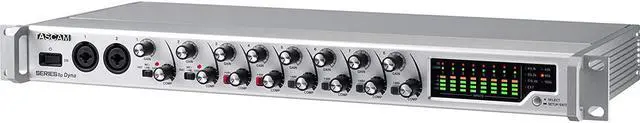

Tascam SERIES 8p Dyna Microphone Preamp

With superb audio specifications and connectivity and featuring an outstanding microphone preamp, the TASCAM SERIES 8p Dyna is a great choice for both studio and stage. Housed in a rugged 1U rack-mount casing, its dual S/MUX optical ports make it a perfect expansion unit for a TASCAM SERIES 102i or SERIES 208i or other S/MUX-equipped audio interfaces including ADAT, or use it as a stand-alone front end. Each SERIES 8p Dyna channel also features individually switched +48V phantom power for use with condenser mics, and an easy-to-use, single-control analog compressor with true bypass.

A Superior Front End for Studio and StageTascam has long been known for transparent, natural, ultra-low-noise preamps, and the eight TASCAM no-compromise HDIA (High Definition Instrumentation Architecture) preamps in the SERIES 8p Dyna are its best preamps yet; the noise level (EIN) is at -127dBu, the THD is 0.0007 %, the dynamic range is 116dB, and the crosstalk is 119dB. Each SERIES 8p Dyna channel also features an easy-to-use, single-control analog compressor with true bypass for handling hot input signals and creating smooth audio input. Versatile InputsWith two instrument/microphone combo inputs on the front panel, you can quickly plug in mics, guitars, bass and more.

Six balanced mic/line inputs grace the rear. Every microphone input has individually switched +48V phantom power for using different types of microphones such as Dynamic, Condenser, Ribbon and vintage for proper operation and safety. It adds up to a multi-purpose front end for recording and live sound. Expand Your Interface or Other DeviceDual S/MUX optical outputs on the rear of the SERIES 8p Dyna enable you to use the unit as a front end expander for S/MUX-equipped audio interfaces, such as TASCAM' s SERIES 102i and SERIES 208i, and Celesonic US-20x20.

ADAT compatibility is also available. With two S/MUX outputs, you can send all eight SERIES 8p Dyna channels at up to 96 kHz (four channels at 176.4 or 192 kHz), dramatically expanding your system' s capabilities. Send to AnythingThe SERIES 8p Dyna' s eight line-level analog channel outputs are provided on both 1/4-inch balanced TRS connectors and balanced 25-pin D-Sub connectors. Route signals to interfaces, recording mixers, front-of-house consoles, and pretty much anything else. Connect its D-Sub outputs to a TASCAM ML-16D or ML-32D Analog Dante converter, and it becomes a pristine front end for an audio-over-IP network.

The Features Professionals NeedFrom its high-end preamps to its versatile outputs, the SERIES 8p Dyna is a thoroughly professional product, right down to its rugged metal 1U rack-mount enclosure. Word clock in and out BNC connectors with an In/Out/Thru switch enable proper synchronization of digital signals. Front-panel analog overload indicators, compression indicators, and digital peak and level meter bars let you monitor the unit' s performance. Yet the SERIES 8p Dyna is simple to operate so you can stay focused on the task at hand.
Features: Versatile, great-sounding front end for recording and live sound8 TASCAM HDIA (High Definition Instrumentation Architecture) microphone preamplifiersSingle-knob analog compressor with true bypass individually assignable to each input channel2 front panel instrument (Hi-Z)/microphone combo inputs6 rear-panel balanced mic/line inputsIndividually switched +48V phantom power per channelDual
S/MUX optical outputs: 8 channels at up to 96 kHz; 4 channels at 176.4 or 192 kHz (ADAT compatible) 8 line-level 1/4-inch balanced TRS analog channel outputs8 line-level balanced channel outputs on a 25-pin D-Sub connectorWord clock in and out on BNC connectors, with In/Out/Thru switchFront-panel analog overload indicators, compression indicators, and digital peak and level meter barsRugged metal 1U rack-mount enclosureGet your Tascam SERIES 8p Dyna Microphone Preamp   today at the guaranteed lowest price from Sam Ash with our 45-day return and 60-day price protection policy.
