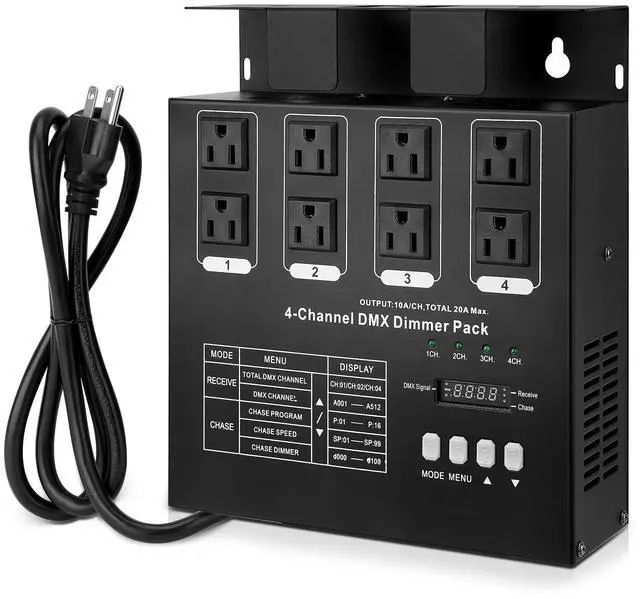

DMX 4-Channel Dimmer Pack with DMX512 Protocol Compatible with High-Voltage Halogen and LED Bulbs, 20A Max, Silicon Box for Stage Lighting Control

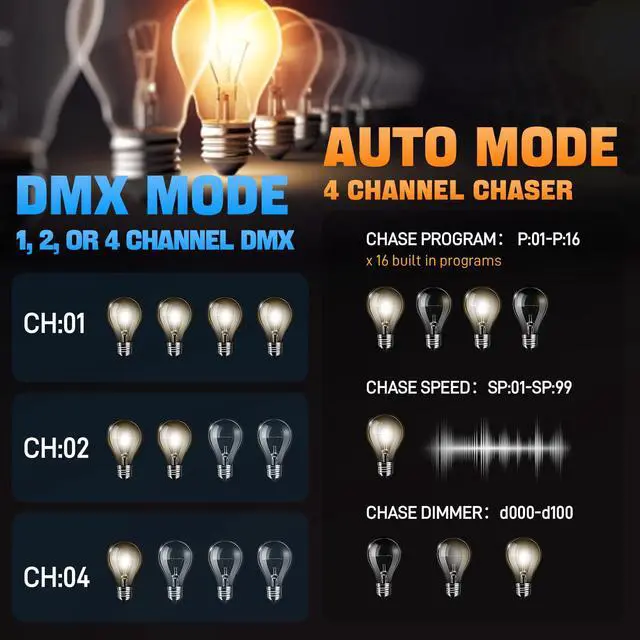

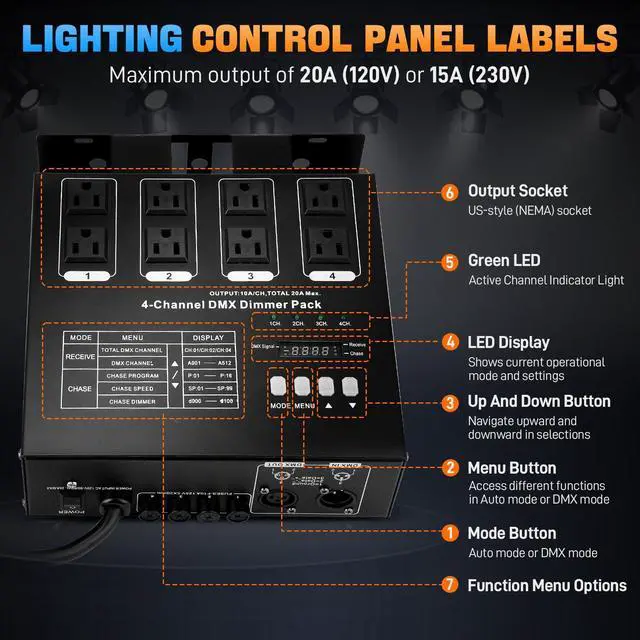

FITMENTWorks with most high-voltage halogen bulbs and LED lights available, but is not compatible with low-voltage DC bulbs, such as 12V and 24V. OPERATION MODEThere are two distinct operating modes. This device can function as a four-channel chaser or as a 1, 2, or 4-channel DMX dimmer pack. Please refer to the instructions below to operate the unit in your preferred mode. PERFORMANCEThis 4-channel dimmer pack features four channels and eight sockets, created to address a range of lighting requirements. Each channel provides a maximum output of 10A (120V) or 5A (230V), with a total current of 20A (120V) or 15A (230V).

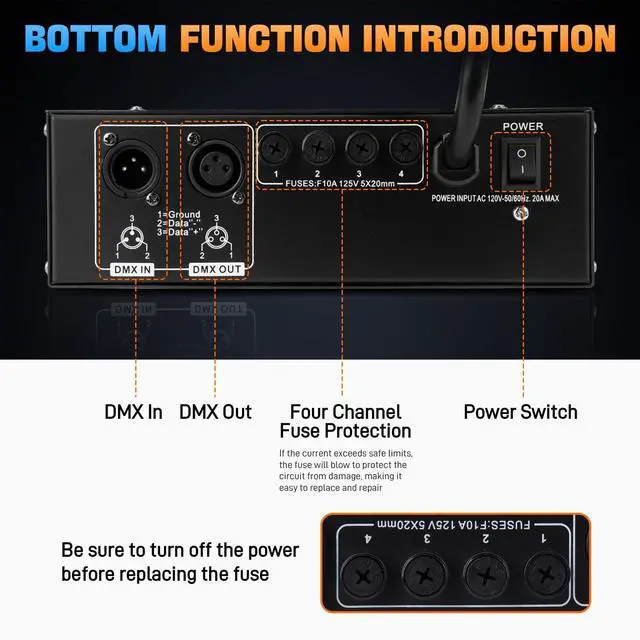

The total wattage of bulbs per channel must not exceed 1 kilowatt. SAFETYThis 4-channel dimmer includes four external channel fuses. If the current surpasses safe limits, the fuse will blow to safeguard the circuit from harm, allowing for simple replacement. NOTE 1. Always switch off the power prior to replacing the fuse or conducting any other maintenance. 2. The unit must be grounded for operation. 3. To avoid electric shock, do not utilize it in rainy or damp locations
