10pcs Micro Limit Switch KW12-3 AC 250V 5A SPDT 1NO 1NC Micro Switch Normally Open Close Limit Switch with Roller Lever Arm Black

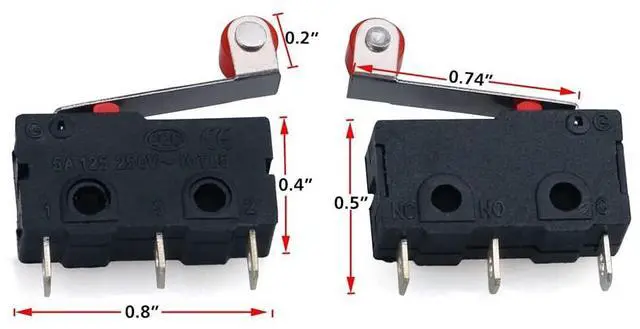

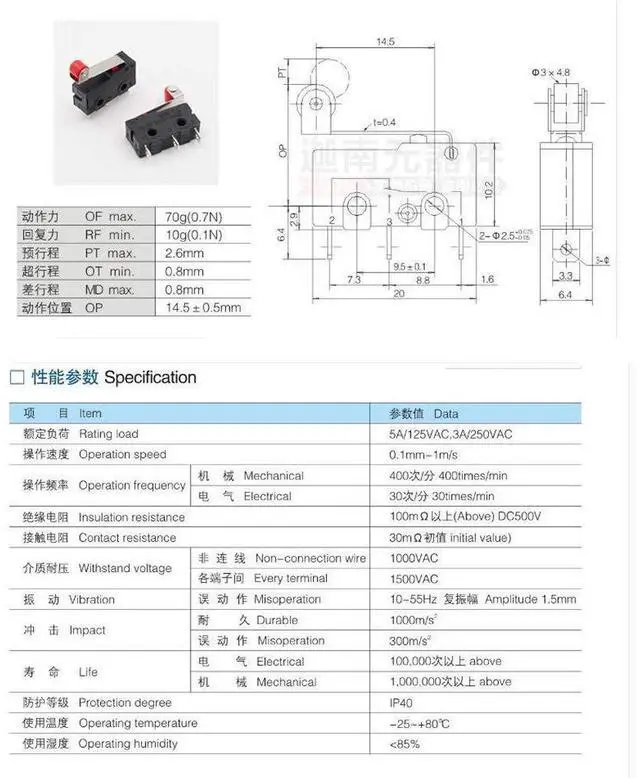

- KW12-3 Roller Lever Arm Micro Limit Switch, Normally Open and Close Diamension: 20 x 10.5 x 6.5mm (L x W x H)
- Contact spacing is small,short stroke action,according to the power of small,fast-break.
- Rated voltage: AC 125V-250V; Current rating: 5A
- Application:Apply in A computer mouse, car mouse, automobile electronic products, communications equipment, military products, test instrument, gas water heater, gas burner, small home appliance, microwave oven, electric rice cooker, floating ball supporting equipment, medical equipment, building automation, electric tools, ect.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10Pcs Black KW12-3 Micro Roller Lever Arm Normally Open Close Limit Switches, with Roller Lever.
Working principle:
By external mechanical force transmission elements (by pins, buttons, levers, rollers, etc.) will be used to force action on a reed, producing reed instantaneous
action when action shifted to the critical point, so moving contact with the fixed contact spring at the end of the action point fast on or off.When the force is removed on the drive components,
action reed produce reverse action force transmission element reverse stroke when the action reaches a critical point reed, instantaneous reverse action.
Package included

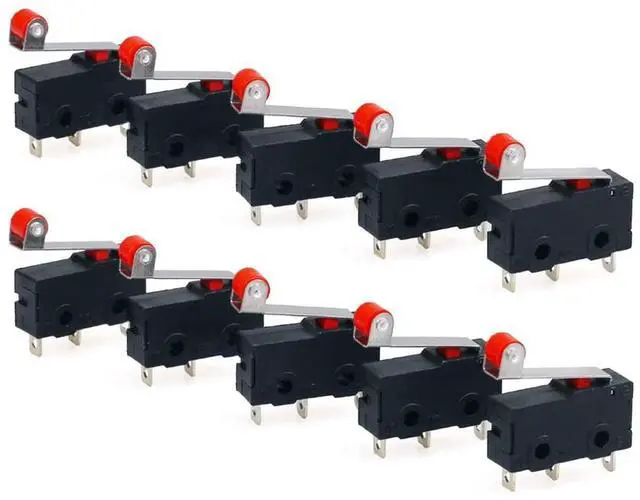

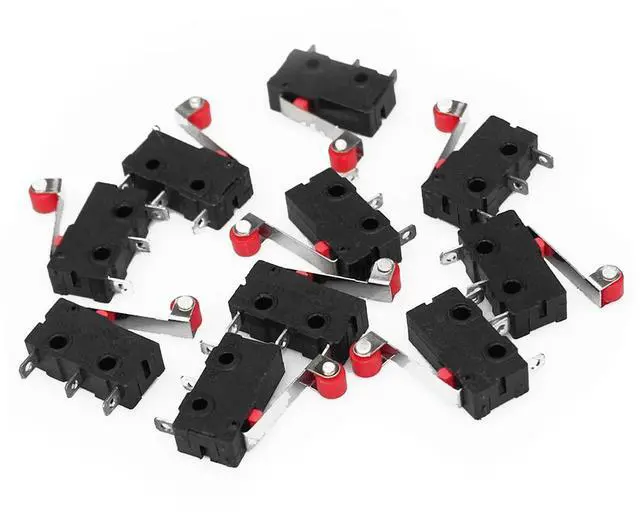

10* KW12-3 Micro Roller Limit Switches
