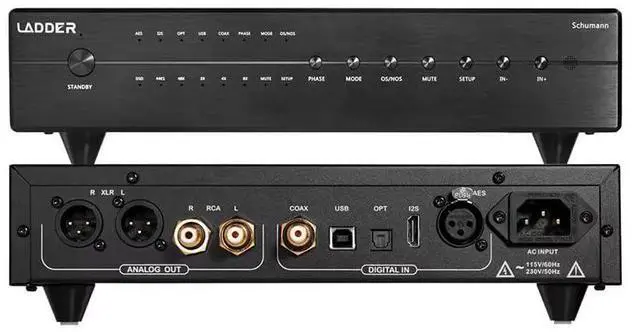

Ladder Schumann DAC HiFi USB DSP Coaxial Opt AES Resolution Audio Decoder
- Excellent DAC TechnologyDSP processing and USB interface decoding scheme based on FPGA decoding architecture; High-quality Chip Designed for soundHigh-efficiency main control chip audio transmission without distortion. The better performance is presented thanks to the high quality hardware.; Double Crystal OscillatorDesign Accurate Sound ReproductionMore accurately restore audio signals with different sampling rates; FPGA Decoding For High-Quality Sound SourcesAdopt the underlying hardware decoding processing architecture Provides excellent jitter suppression
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product specification
Technical Highlights: Proprietary R2R + DSD Architecture, True Balanced 24BIT R2R +6BIT DSD(32-step FIR Filter). Low Thermal Effect, High Precision Hand-Matched 0.01 %
Resistors Overall Dimensions: 300mm*270mm*70mm (Length x Depth x
Height) DSD Support: Coax/AES/Opt Inputs Support DSD64 (DoP), USB and I2S Inputs Only Support DSD1024 PCM Support: All Inputs Support 24-bit/ 44.1, 48, 88.2, 96, 176.4, 192kHz USB and I2S Inputs Support 1536kHz
Analog Outputs: RCA
Output: 2.0V rms, 625
XLR Output: 4.0V rms, 1250
Frequency Response: 20-70kHz -3dB Total Harmonic Distortion +
Noise (THD+N): 0.0025 % Signal-to-Noise Ratio (S/N
Ratio): 120dB
Dynamic Range: 121dB
Stereo Crosstalk: -110dB
Power Requirements: 100-240VAC, 50/60Hz (Global Voltage)
Power Consumption: 20 watts
Safety Standard: GB8898-2011 Electromagnetic
Compatibility Standard: GB 17625.1 -2012 GB13837-2012
Environmental Adaptability Standard: GB 9384
Technical Highlights: Proprietary R2R + DSD Architecture, True Balanced 24BIT R2R +6BIT DSD(32-step FIR Filter). Low Thermal Effect, High Precision Hand-Matched 0.01 %
Resistors Overall Dimensions: 300mm*270mm*70mm (Length x Depth x
Height) DSD Support: Coax/AES/Opt Inputs Support DSD64 (DoP), USB and I2S Inputs Only Support DSD1024 PCM Support: All Inputs Support 24-bit/ 44.1, 48, 88.2, 96, 176.4, 192kHz USB and I2S Inputs Support 1536kHz
Analog Outputs: RCA
Output: 2.0V rms, 625
XLR Output: 4.0V rms, 1250
Frequency Response: 20-70kHz -3dB Total Harmonic Distortion +
Noise (THD+N): 0.0025 % Signal-to-Noise Ratio (S/N
Ratio): 120dB
Dynamic Range: 121dB
Stereo Crosstalk: -110dB
Power Requirements: 100-240VAC, 50/60Hz (Global Voltage)
Power Consumption: 20 watts
Safety Standard: GB8898-2011 Electromagnetic
Compatibility Standard: GB 17625.1 -2012 GB13837-2012
Environmental Adaptability Standard: GB 9384
