$333.99
Ships from China.
Meet Your Seller

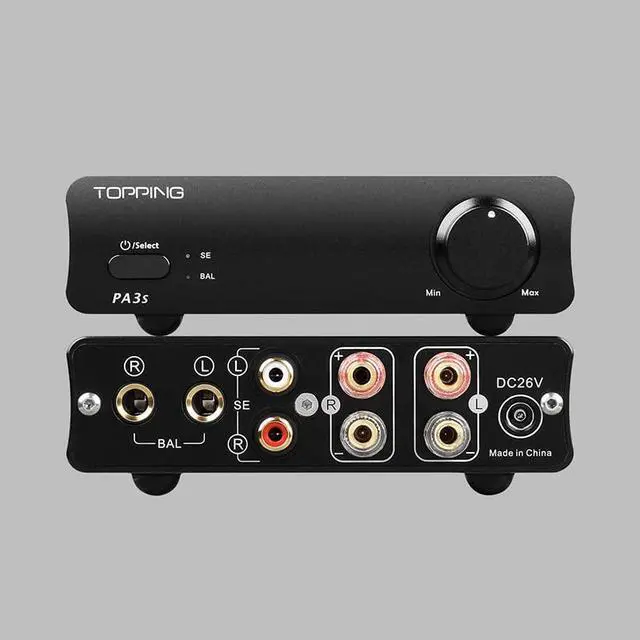

Topping PA3S Power Amplifier MA12070*2 Class D Fully Balanced Single Ended AMP 80W*2 RCA TRS Power Amplifier(Black)
- Comfort zone" with lowest distortionThe lowest THD+N of PA3s is in the range of 10-20W output, which happens to be the power range commonly used for listening to music. Everything is just in the right condition.; With the help of a DAC, the function is expanded to a greater extent PA3s can be used with a DAC to expand the categories of digital inputs; if used with a DAC+HPA, more comprehen sive functions can be achieved.; Balanced + Single- ended inputsPA3s provides TRS balanced input and RCA single: end- ed input. The u use of balanced input eliminates potential ground loop problems giving the pristinely clean audio without any hum.; High output powerPA3s could output 80W x2 at 4ohm load, 10% THD+N. In higher standard of THD+N of 1%output power will be 65W x2 at 4ohm load. The output power is enough to drive any bookshelf speakers and even some floor speakers.; 2xMA12070 Fully balanced Class D amplifier Each channel of PA3s uses one MA12070 Class D power amplifier chip. This allows separation in layout improving performance and reducing crosstalk. The power is shared across two chips, the heat dissipation is also halved for each chip, improving reliability and extending the lifespan of the product.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PA3s Power Amplifier specifications SE IN THD+N @1kHz (A-wt) < 0.0050 % @4 5W < 0.0040 % @8 5W THD @20- 10kHz (20kBW) < 0.0080 % @4 5W < 0.0070 % @8 5W SNR @MAX OuT 1kHz (A-W)107dB Dynamic Range @1kHz (A-wt)107dB Frequency Response20Hz-40kHz ( ± 0.1 dB) Output Level 46Vpp @4 48Vpp @8 Noise (A-wt) <70uVrms Channel Crosstalk @1kHz Input sensitivity -96dB Gain 25.2 dB Channel Balance 0.5 dB Output Power 80W x 2 @4 THD+N<10% 45W x 2 @8 THD+N<10% 65W x 2 @4 THD+N<1% 37W x 2 @8 THD+N<1% Adapter Impedance4-8 BAL IN THD+N @1kHz (A-wt) < 0.0045 % @4 5W < 0.0040 % @8 5W THD @20- 10kHz (20kBW) < 0.0070 % @4 5W < 0.0060 % @8 5W SNR @MAX OuT 1kHz (A-W)112dB Dynamic Range @1kHz (A-wt)112dB Frequency Response20Hz-40kHz ( ± 0.1 dB) Output Level 46Vpp @4 48Vpp @8 Noise (A-wt)<70uVrms Channel Crosstalk @1kHz-100dB Input sensitivity 1.75V rms Gain 19.5 dB Channel Balance 0.5 dB Output Power 80W x 2 @4 THD+N<10% 45W x 2 @8 THD+N<10% 65W x 2 @4 THD+N<1% 37W x 2 @8 THD+N<1% Adapter Impedance4-8
