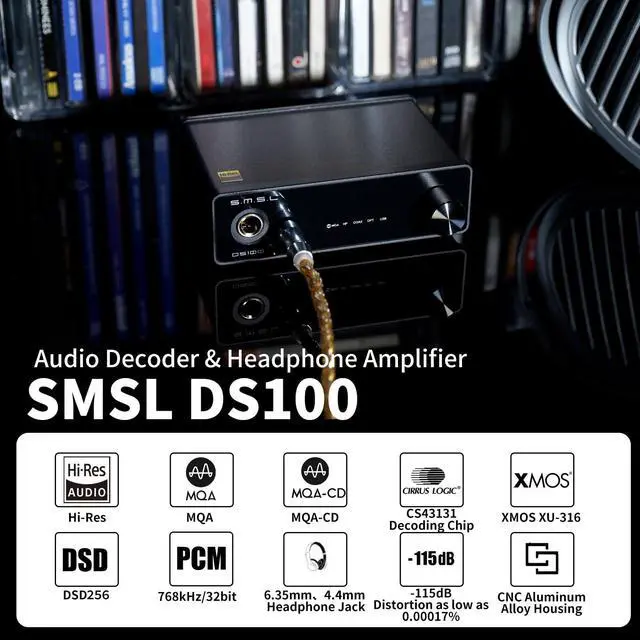

SMSL DS100 MQA DAC Headphone Amplifier CS43131 Chip Mini Stereo Audio DAC | Support MQA MQA-CD USB Optical Coaxial Input 6.35mm & 4.4mm Headphone XU316 768kHz/32Bit DSD256 For Home Audio/PC/Phone

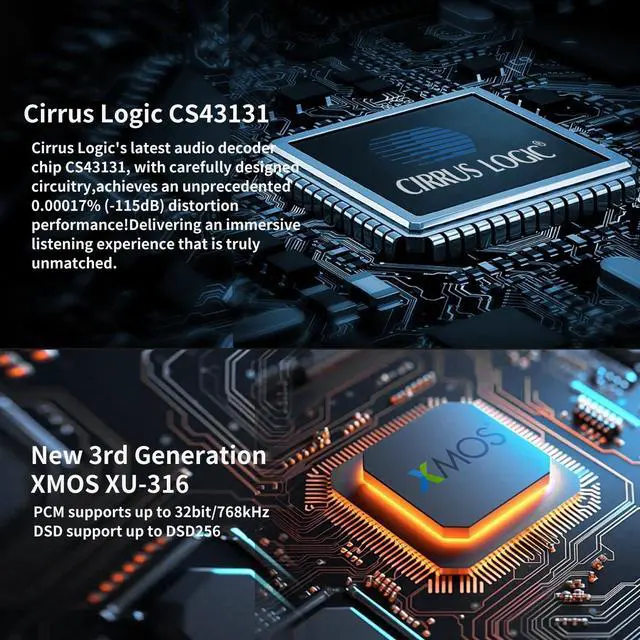

High Performance MQA DAC Amplifier: Utilizing the audio decoding chipset, the CS43131 from Cirrus Logic, this unit features meticulously engineered circuitry that enhances its performance to a remarkable distortion level of 0.00017 % (-115dB)! It delivers an exceptional music experience and transports you into a new dimension of audio enjoyment. Supports MQA/MAQ-CD Decoding. Recovers the most authentic sound from the recording studio. USB DAC XMOS XU-316 PCM support 32bit/768kHz
& DSD256: The USB decoder is powered by the latest third-generation XMOS XU-316, which features PCM support up to 32bit/768kHz and DSD support reaching DSD256. This ensures your audio experience is as pristine as possible. CK-03 clock processing circuit and low-noise
LDO power supply: As a desktop DAC, this unit is fitted with a dedicated audio clock processing circuit CK-03 to minimize clock jitter and ensure optimal sound quality. Additionally, it incorporates a built-in high-efficiency power supply chip and is supported by multiple low-noise LDO power supplies to deliver ample power for the decoder.

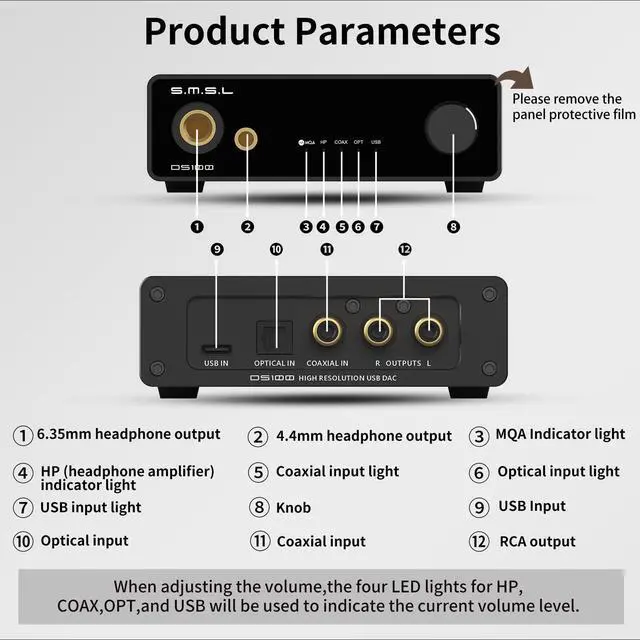

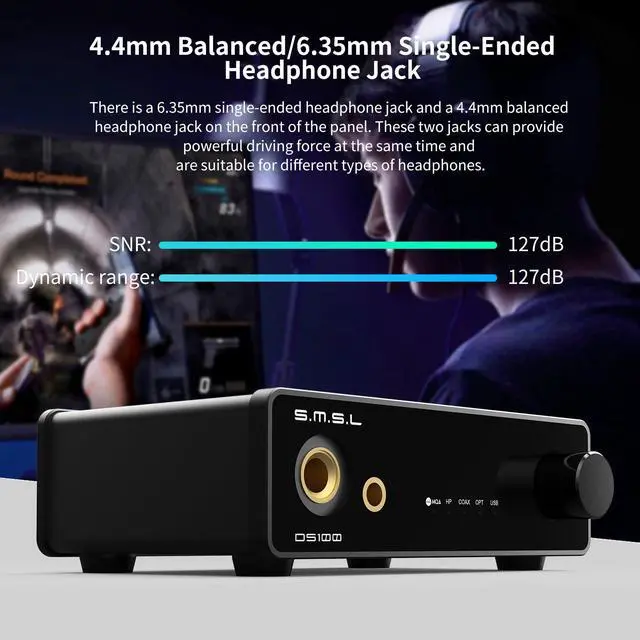

Double Headphone Jack Design: This audio DAC is specifically equipped with two headphone jack specifications: 6.35 mm and 4.4 mm. It provides an output of 7 Vrms for 600 high-impedance headphones, and 61mW for 16 low-impedance headphones, crafted to accommodate diverse headphone connection requirements. Also, please configure the input mode and output mode correctly. When adjusting the volume, four LED indicators, HP, COAX, OPT, and USB, are utilized to display the current volume level.
High-Quality Mini DAC: This unit is constructed from aluminum alloy and precisely machined using CNC technology with premium gold-plated input and output terminals to ensure secure and dependable connections.
Notice: Windows systems require driver installation. Please obtain the driver from the official website. The file location can be referenced via this path: Support - Product Driver Download - DS100
