Upgraded M300SE HiFi Headphone Amplifier, 2PCS of CS43131 MQA Audio DAC, USB/Optical/Coaxial/Bluetooth Input DSD MQA XMOS Balanced XLR Output THD+N 0.00013% with Remote Control
- Capable of directly sampling PCM digital audio up to 32-bit/768kHz without downsampling. It also supports Native DSD playback up to DSD256 without conversion. Optical/ coaxial input supports DoP64.

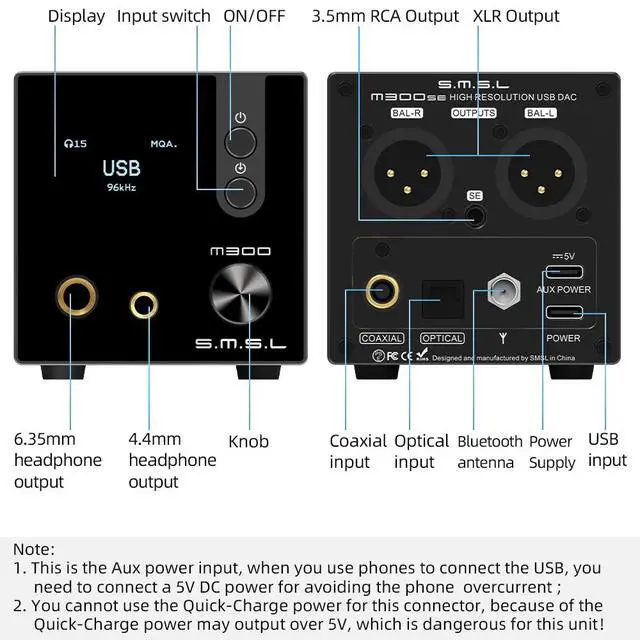

- The front panel features a 6.35mm single-ended headphone jack and a 4.4mm balanced headphone jack, with an integrated high-performance stereo headphone amplifier that can provide substantial driving power to each interface simultaneously. The chip's proprietary headphone impedance detection allows for automatic adaptation to various types of headphones.
- A complete MQA decoder, which will fully expand MQA music files to provide high-quality sound sources. At this playback level, you will fully hear the content created by the artist in the studio.

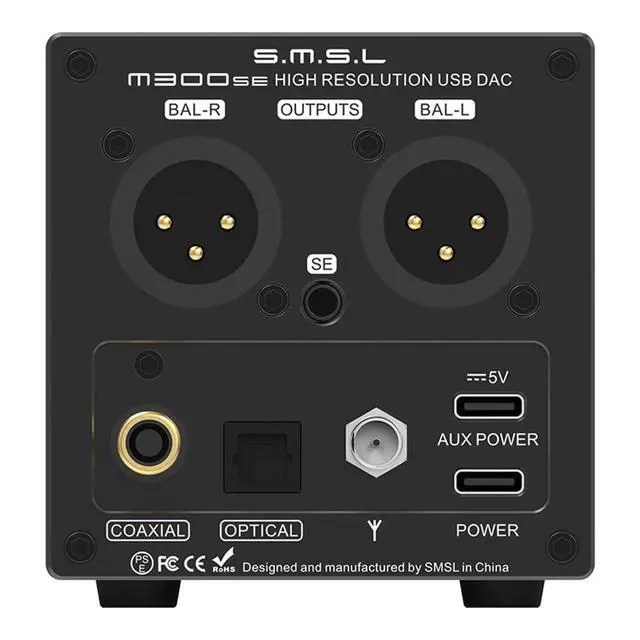

- M300 SE can turn off the volume control function in the preamp mode, keeping the output level at 4.0Vrms (XLR balanced) or 2.0Vrms (RCA single). At this time, the M300 MK Il works as a pure DAC.
- 12-month warranty, you can return the item or replace a new one if you have any problems.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description True balanced XLR output The M300 SE utilizes two audio decoding chips, namely the CS43131, combined with the engineer's carefully crafted circuitry, enables more accurate expression of music. Moreover, it employs a substantial quantity of audiophile-grade resistors and capacitors specifically designed for audio purposes, as well as multiple sets of low-noise LDO power supplies. Wireless transmission Bluetooth 5.0 We have adopted a modular Bluetooth solution with an external Bluetooth antenna, which has significantly improved signal stability and transmission quality in all directions. This advancement has pushed HiFi towards wireless connectivity.

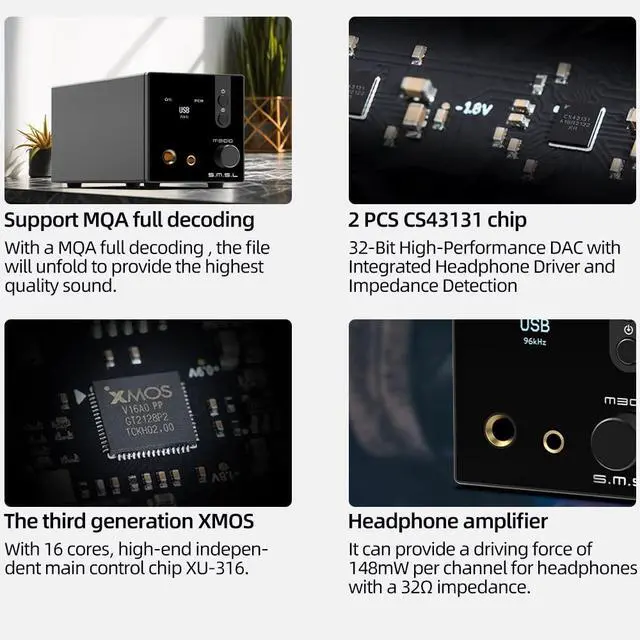

CS43131*2 This chip integrates a new generation of low-power audio decoder and high-fidelity headphone amplifier with impedance detection function. It provides excellent professional-grade audio performance, greatly reduces the space occupied on the circuit board to prevent interference between circuits. It supports various Hi-Fi headphones and offers outstanding audio quality. XMOS XMOS XU-316, PCM support up to 32bit/768kHz DSD support up to DSD256 Japan's NDK Two independent Japanese NDK ultra low phase noise crystals Provide ultra-low JITTER clocks for 44.1K and 48K and their multipliers respectively! Built-in specially optimized power processing circuit High-efficiency power supply chip for the decoder to provide sufficient energy, and the use of multiple groups of low-noise LDO power supply Specification Inputs USB / Optical / Coaxial / Bluetooth Output Level RCA 2.0V rms, XLR 4.0V rms THD+N(UN-WTD) 0.00013 %(-117dB) Dynamic range(UN-WTD) RCA 120dB, XLR132dB SNR(UN-WTD) 131dB Bluetooth BT 5.0 (support SBC) USB transmission Asynchronous USB compatibility Windows 7/ 8/ 8.1 / 10/ 11 Mac OS X 10.6 or Later/ Linux Bit depth USB 1bit-32bit Bit depth Optical/coaxial 16bit-24bit Sampling rate USB 44.1 -768kHz DSD64, DSD128, DSD256 Optical/coaxial 32-192kHz Power Consumptioin 3W Standby power 0.1W Size 70x73x165mm (WxHxD) Weight 0.54K g
CS43131*2 This chip integrates a new generation of low-power audio decoder and high-fidelity headphone amplifier with impedance detection function. It provides excellent professional-grade audio performance, greatly reduces the space occupied on the circuit board to prevent interference between circuits. It supports various Hi-Fi headphones and offers outstanding audio quality. XMOS XMOS XU-316, PCM support up to 32bit/768kHz DSD support up to DSD256 Japan's NDK Two independent Japanese NDK ultra low phase noise crystals Provide ultra-low JITTER clocks for 44.1K and 48K and their multipliers respectively! Built-in specially optimized power processing circuit High-efficiency power supply chip for the decoder to provide sufficient energy, and the use of multiple groups of low-noise LDO power supply Specification Inputs USB / Optical / Coaxial / Bluetooth Output Level RCA 2.0V rms, XLR 4.0V rms THD+N(UN-WTD) 0.00013 %(-117dB) Dynamic range(UN-WTD) RCA 120dB, XLR132dB SNR(UN-WTD) 131dB Bluetooth BT 5.0 (support SBC) USB transmission Asynchronous USB compatibility Windows 7/ 8/ 8.1 / 10/ 11 Mac OS X 10.6 or Later/ Linux Bit depth USB 1bit-32bit Bit depth Optical/coaxial 16bit-24bit Sampling rate USB 44.1 -768kHz DSD64, DSD128, DSD256 Optical/coaxial 32-192kHz Power Consumptioin 3W Standby power 0.1W Size 70x73x165mm (WxHxD) Weight 0.54K g
