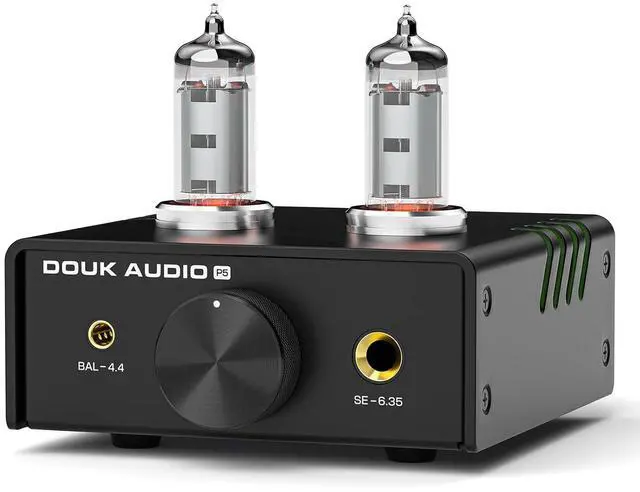

P5 Mini Tube Headphone Amplifier: 4.4mm Balanced & 6.35mm Output Preamp for Hi-Fi Desktop StudioDual-Mono DesignOp-Amp Tube RollingAdjustable Gain 16-600

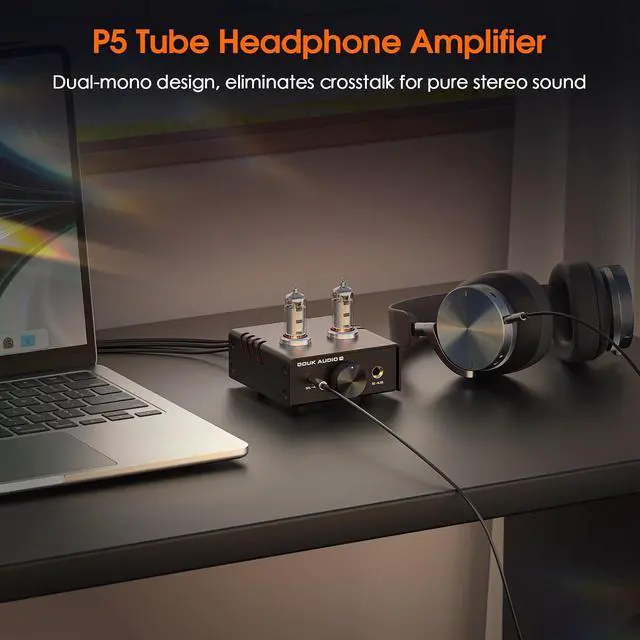

- [Dual-Mono Tube Architecture] Independent left/right channels with 200V high-voltage tube stage ensure superior stereo separation, delivering warm analog tone and immersive hi-fi detail.

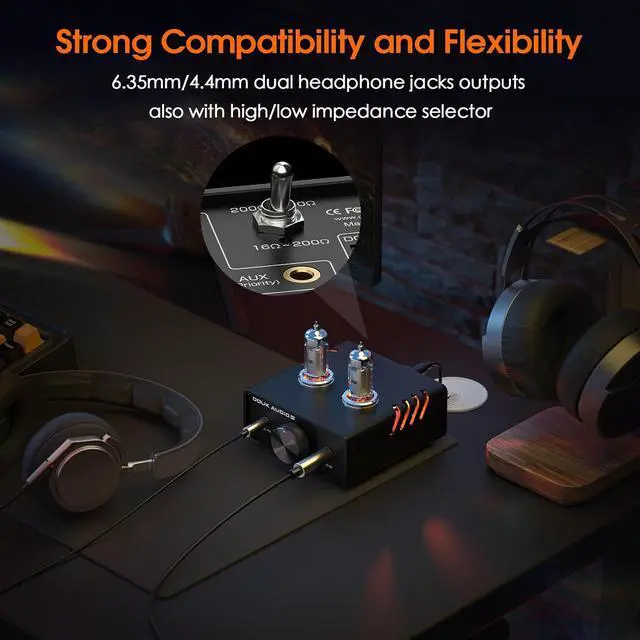

- [4.4mm Balanced & 6.35mm Outputs] Compatible with studio and audiophile headphones
- adjustable gain (5dB/15dB) supports 16600 impedance for clean and powerful sound.

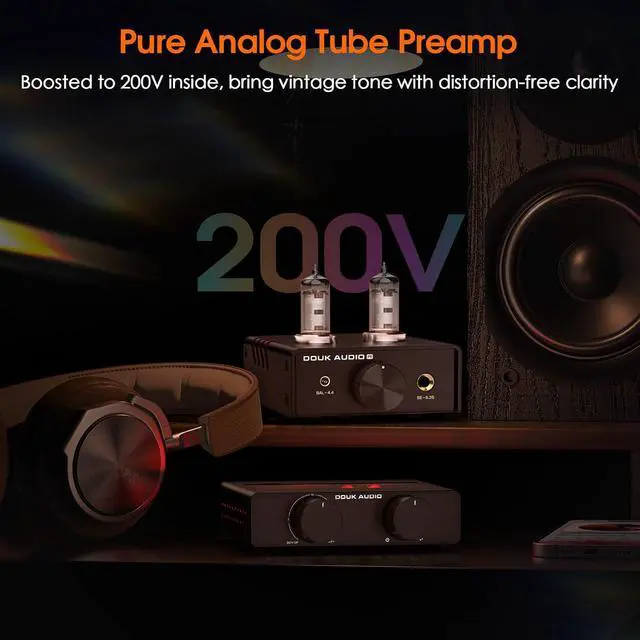

- [Tube Preamp Functionality] Connect via RCA OUT to power amps or active speakers
- enrich your entire system with classic tube harmonics and analog musicality.

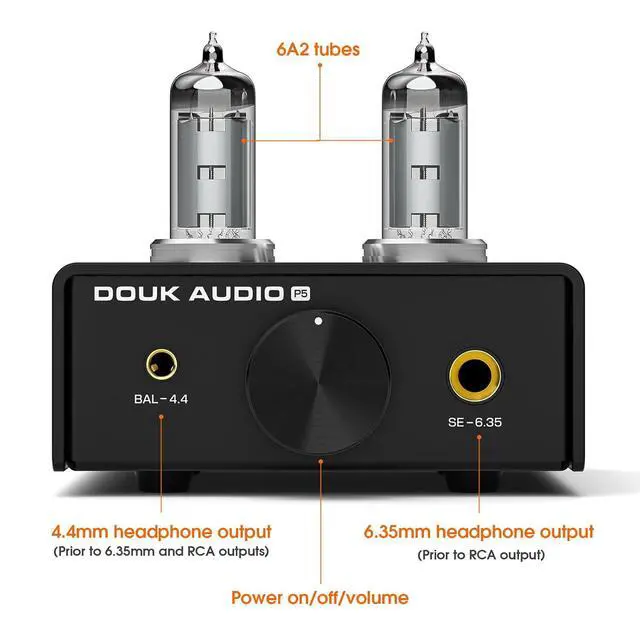

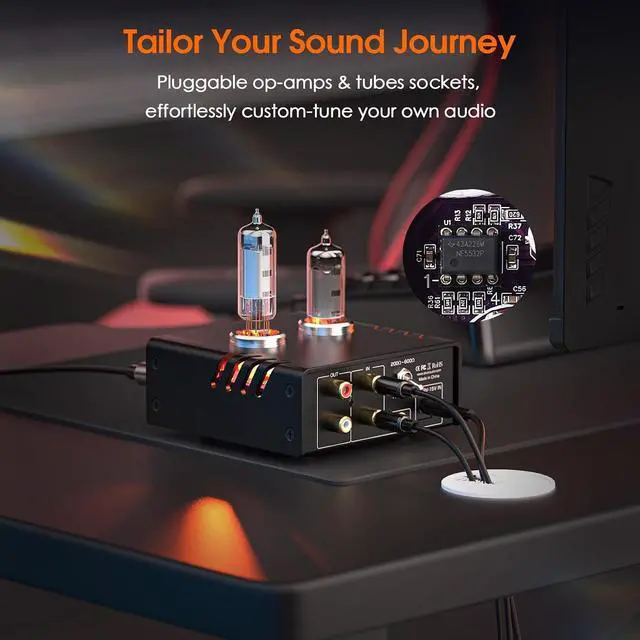

- [Customizable Sound Design] Pluggable NE5532 op-amps and replaceable 6A2 tubes allow sound tuningexperiment with different op-amps or tubes to craft your perfect tone.

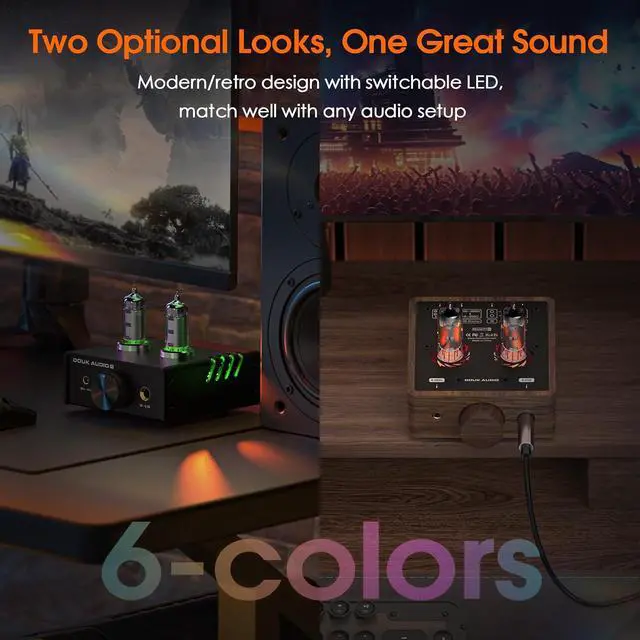

- [Premium Build & Visual Appeal] Full-aluminum body with six-mode LED glow and 1030s tube warm-up timer enhances both protection and aesthetic performance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product description Douk Audio P5 Mini Tube Headphone Amplifier Dual-Mono Design 4.4 mm & 6.35 mm OutputReplaceable TubesNE5532 Op-AmpGain 5dB/15dB16-600Tube PreampAluminum Chassis6-Mode LED
Adjustable Warm-Up Independent channels reduce crosstalk for clear, balanced stereo sound High-voltage drive brings warm, rich analog depth Balanced and single-ended jacks support most headphones 5dB/15dB switch matches 16600 headphones RCA OUT adds tube warmth to speakers or power amps Dual-Mono Circuit 200V Tube Stage 4.4 mm & 6.35 mm Outputs Adjustable Gain Tube Preamp Mode Replaceable NE5532 and 6A2 tubes allow easy sound tuning Dynamic ambient light enhances your listening atmosphere Op-Amp & Tube Rolling 6-Mode LED Glow Perfect for music producers seeking detailed monitoring and analog tone Elevates your desktop setup with tube warmth and customizable sound For Home Studio For Audiophile Desk Why is there no sound when I power it on? Can I use both headphone jacks and RCA OUT at the same time? What kind of headphones are supported? Can I replace the tubes or op-amps myself? What power supply should I use? Technical
RCA (Priority: AUX > RCA)
Audio output: 4.4 mm & 6.35 mm headphone output /
RCA (Priority: 4.4 mm headphone jack > 6.35 mm headphone jack >
RCA) THD: > 0.01 %
SNR: 80dB
Gain: Low
impedance: 5dB@200;
High impedance: 15dB@600 RCA max.
output level: Low
impedance: 1.5V rms;
High impedance: 5.75V rms
Headphone output power: 200mW@32; 80mW@300
Matched headphone impedance: 16-600
Headphone impedance switch: Support
Backlight LED color: 6 modes
Tubes warm-up time: Adjustable 1030 seconds
Input voltage: DC 9-15V/1A ( 5.5 * 2.5 mm)
Dimensions (W*D*H): 102*102*40mm / 4.01 * 4.01 * 1.57 in
Package dimensions (W*D*H): 210*185*96mm / 8.27 * 7.28 * 3.78 in
Weight:
Net: 420g / 0.92 lb |
Package: 0.7 kg / 1.54 lb
Packing list: 1* P5 Headphone Amp | 1* DC 12V Power Adapter | 2* 6A2 Tubes | 1* User Manual Douk Audio Headphone Amps Douk Audio P5 Douk Audio U3 Douk
Audio E2 Type: Tube Headphone
Amp Type: Digital Headphone
Amp Type: Tube Headphone Amp & Preamplifier
Audio input: AUX /
RCA (Priority: AUX > RCA)
Audio input: RCA
Audio input: 2 groups of stereo RCA
Audio output: 4.4 mm & 6.35 mm headphone output /
RCA (Priority: 4.4 mm > 6.35 mm > RCA)
Audio output: 6.35 mm headphone jack (with 3.5 mm adapter)
Audio output: Stereo RCA / 4-pin XLR & 4.4 mm & 6.35 mm headphone jack
Headphone Compatibility: 200mW@32; 80mW@300; 16-600
Headphone Compatibility: 1300mW (32); 18-600
Headphone Compatibility: Low
gain (L): 0.55W
High gain (H): 2W; 20Hz-20kHz (± 0.5 dB)
Adjustable Warm-Up Independent channels reduce crosstalk for clear, balanced stereo sound High-voltage drive brings warm, rich analog depth Balanced and single-ended jacks support most headphones 5dB/15dB switch matches 16600 headphones RCA OUT adds tube warmth to speakers or power amps Dual-Mono Circuit 200V Tube Stage 4.4 mm & 6.35 mm Outputs Adjustable Gain Tube Preamp Mode Replaceable NE5532 and 6A2 tubes allow easy sound tuning Dynamic ambient light enhances your listening atmosphere Op-Amp & Tube Rolling 6-Mode LED Glow Perfect for music producers seeking detailed monitoring and analog tone Elevates your desktop setup with tube warmth and customizable sound For Home Studio For Audiophile Desk Why is there no sound when I power it on? Can I use both headphone jacks and RCA OUT at the same time? What kind of headphones are supported? Can I replace the tubes or op-amps myself? What power supply should I use? Technical
Specifications
Audio input: AUX /RCA (Priority: AUX > RCA)
Audio output: 4.4 mm & 6.35 mm headphone output /
RCA (Priority: 4.4 mm headphone jack > 6.35 mm headphone jack >
RCA) THD: > 0.01 %
SNR: 80dB
Gain: Low
impedance: 5dB@200;
High impedance: 15dB@600 RCA max.
output level: Low
impedance: 1.5V rms;
High impedance: 5.75V rms
Headphone output power: 200mW@32; 80mW@300
Matched headphone impedance: 16-600
Headphone impedance switch: Support
Backlight LED color: 6 modes
Tubes warm-up time: Adjustable 1030 seconds
Input voltage: DC 9-15V/1A ( 5.5 * 2.5 mm)
Dimensions (W*D*H): 102*102*40mm / 4.01 * 4.01 * 1.57 in
Package dimensions (W*D*H): 210*185*96mm / 8.27 * 7.28 * 3.78 in
Weight:
Net: 420g / 0.92 lb |
Package: 0.7 kg / 1.54 lb
Packing list: 1* P5 Headphone Amp | 1* DC 12V Power Adapter | 2* 6A2 Tubes | 1* User Manual Douk Audio Headphone Amps Douk Audio P5 Douk Audio U3 Douk
Audio E2 Type: Tube Headphone
Amp Type: Digital Headphone
Amp Type: Tube Headphone Amp & Preamplifier
Audio input: AUX /
RCA (Priority: AUX > RCA)
Audio input: RCA
Audio input: 2 groups of stereo RCA
Audio output: 4.4 mm & 6.35 mm headphone output /
RCA (Priority: 4.4 mm > 6.35 mm > RCA)
Audio output: 6.35 mm headphone jack (with 3.5 mm adapter)
Audio output: Stereo RCA / 4-pin XLR & 4.4 mm & 6.35 mm headphone jack
Headphone Compatibility: 200mW@32; 80mW@300; 16-600
Headphone Compatibility: 1300mW (32); 18-600
Headphone Compatibility: Low
gain (L): 0.55W
High gain (H): 2W; 20Hz-20kHz (± 0.5 dB)
