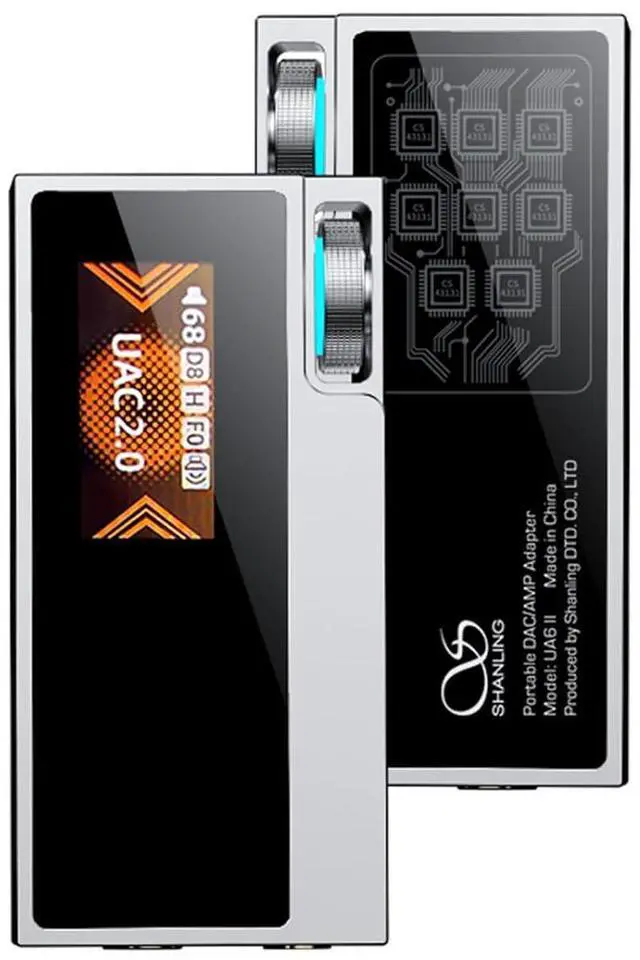

UA6 II Portable Headphone Amplifier, The First 8×CS43131 Flagship USB Dongle DAC AMP, 133dB SNR, Supports 768kHz/32bit & DSD512, 365mW@32 Balanced Output, 3.5mm+4.4mm Jacks, Silver
- 8×CS43131 Flagship DAC Array Industry First Powered by 8 parallel CS43131 DAC chips, the SHANLING UA6 II DAC is the industry's first USB dongle DAC AMP to feature this configuration. Multi-channel synergy delivers an ultra-low noise floor and a pristine background with a remarkable 133dB dynamic range and 133dB SNR on balanced output.
- Dual Outputs 3.5mm SE & 4.4mm Balanced As a versatile Portable Headphone Amplifier, the SHANLING UA6 II is equipped with both 3.5mm single-ended and 4.4mm balanced jacks. The balanced output delivers 577mW@32 for powerful, expansive dynamics, while the single-ended output provides 107mW@32 for delicate, refined listening.
- Two Gain Levels Universal Compatibility This USB DAC features switchable High/Low gain settings that adapt to any headphone or earphone. Low gain ensures a darker background for sensitive IEMs, while High gain drives low-impedance over-ear headphones with authoritative dynamics.
- Hi-Res Decoding PCM 768kHz & Native DSD512 As a high-performance USB Dongle DAC AMP, the SHANLING UA6 II supports high-resolution audio up to PCM 768kHz/32bit and native DSD512. The 0.95-inch OLED display provides clear playback information at a glance.
- Ultra-Low Distortion & High Channel Separation The 3.5mm output achieves THD+N as low as 0.0002% @32, while the 4.4mm balanced output delivers 108dB channel separation, ensuring precise stereo imaging and immersive soundstage.
- Eddict Player App & 5 Digital Filters Full Custo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Complete
General:
Weight: 30.8 g
Dimensions: 62×30× 13.5 mm
Display: 0.95 -inch
OLED Supported Formats: PCM 768kHz/32bit, DSD512
Gain Settings: High, Low
DAC Chips: 8×CS43131
Outputs: 3.5 mm Single-Ended + 4.4 mm
Balanced Digital Filters: 5 selectable 3.5 mm
Single-Ended Output: Output
Power: 1.85V @32 (107mW@32)
Frequency Response: 20Hz-40kHz (- 0.5 dB)
THD+N: 0.0002 %@32
Dynamic Range: 128dB@32
Channel Separation: 76dB@32 (A-Weighted, High
Gain) SNR: 128dB@32 (A-Weighted, High
Gain) Noise: 122dB@32 (A-Weighted, High Gain)
Output Impedance: < 0.5 4.4 mm
Balanced Output: Output
Power: 3.418V @32 (577mW@32)
Frequency Response: 20Hz-40kHz (- 0.5 dB)
THD+N: 0.0006 %@32
Dynamic Range: 133dB@32
Channel Separation: 108dB@32 (A-Weighted, High
Gain) SNR: 133dB@32 (A-Weighted, High
Gain) Noise: 121dB@32 (A-Weighted, High Gain)
Output Impedance: < 0.5
Specifications
:General:
Weight: 30.8 g
Dimensions: 62×30× 13.5 mm
Display: 0.95 -inch
OLED Supported Formats: PCM 768kHz/32bit, DSD512
Gain Settings: High, Low
DAC Chips: 8×CS43131
Outputs: 3.5 mm Single-Ended + 4.4 mm
Balanced Digital Filters: 5 selectable 3.5 mm
Single-Ended Output: Output
Power: 1.85V @32 (107mW@32)
Frequency Response: 20Hz-40kHz (- 0.5 dB)
THD+N: 0.0002 %@32
Dynamic Range: 128dB@32
Channel Separation: 76dB@32 (A-Weighted, High
Gain) SNR: 128dB@32 (A-Weighted, High
Gain) Noise: 122dB@32 (A-Weighted, High Gain)
Output Impedance: < 0.5 4.4 mm
Balanced Output: Output
Power: 3.418V @32 (577mW@32)
Frequency Response: 20Hz-40kHz (- 0.5 dB)
THD+N: 0.0006 %@32
Dynamic Range: 133dB@32
Channel Separation: 108dB@32 (A-Weighted, High
Gain) SNR: 133dB@32 (A-Weighted, High
Gain) Noise: 121dB@32 (A-Weighted, High Gain)
Output Impedance: < 0.5
