AudioTechnica AT-PEQ30 Phono Equalizer with MM and MC Inputs

The AT-PEQ30 phono equalizer is designed specifically to add a phono stage to a turntable setup or to upgrade a turntables built-in phono preamplifier. It is compatible with turntables with MM (moving magnet) and MC (moving coil) cartridges. The AT-PEQ30 benefits from Audio-Technicas years of analog audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.

Features:

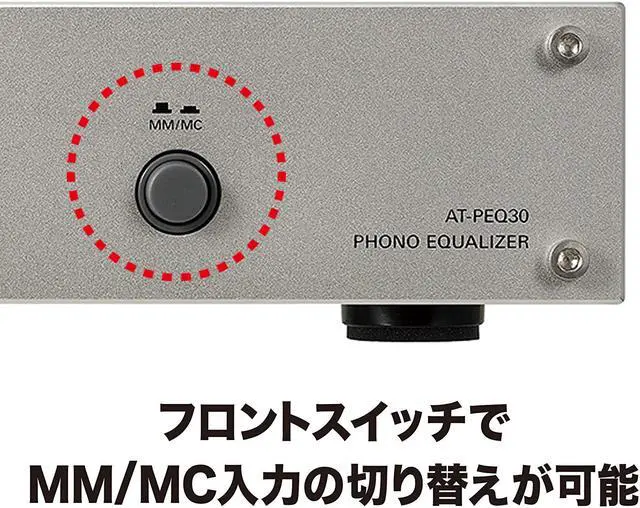

• Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges


• High-quality FET inputs ensure a low-noise signal when incorporated with a negative feedback-type phono equalizer circuit


• Precision components provide an excellent RIAA response for best-in-class performance


• The all-metal construction enclosure provides superior isolation from radio and electronic noise interference


• The machined aluminum front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout

What's in the Box

• AT-PEQ30 Phono Equilizer


• AC Adapter

Specifications

• Input Impedance



  • MM type: 47 kiloohms


  • MC type: 120 ohms






• Input Sensitivity



  • MM type: 4.5 mV


  • MC type: 0.28 mV






• Rated output



  • MM type: 250 mV


  • MC type: 250 mV






• Gain



  • MM type: 35 dB


  • MC type: 59 dB






• Signal-to-Noise Ratio



  • MM type: 100 dB


  • MC type: 74 dB






• RIAA Deviation



  • (20 to 20000 Hz) MM type: 0.5 dB


  • (20 to 20000 Hz) MC type: 0.5 dB






• Power Supply: DC 15 V 1.2 A


• Power Consumption: 2.5 W

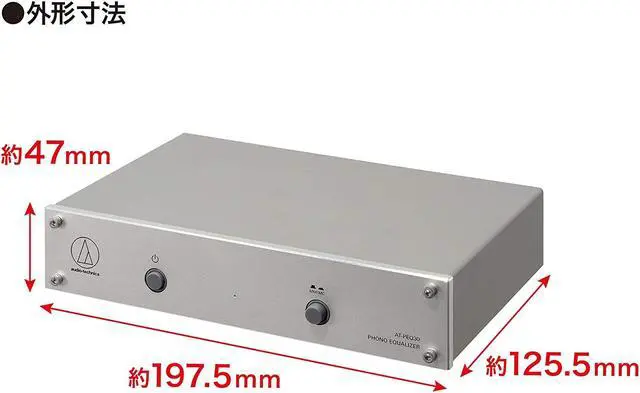

• Dimensions (W x H x D): 7.78" x 1.85" x 4.94" (excluding protrusions)


• Weight: 31.4 oz


• Accessories Included: AC adapter
