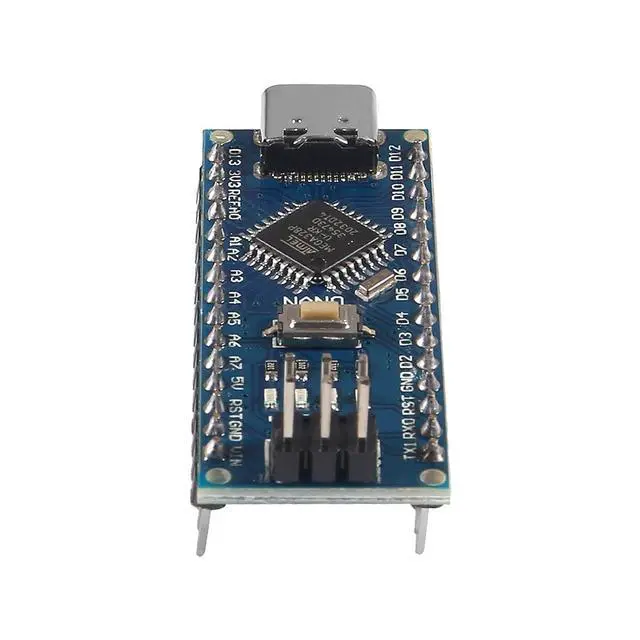

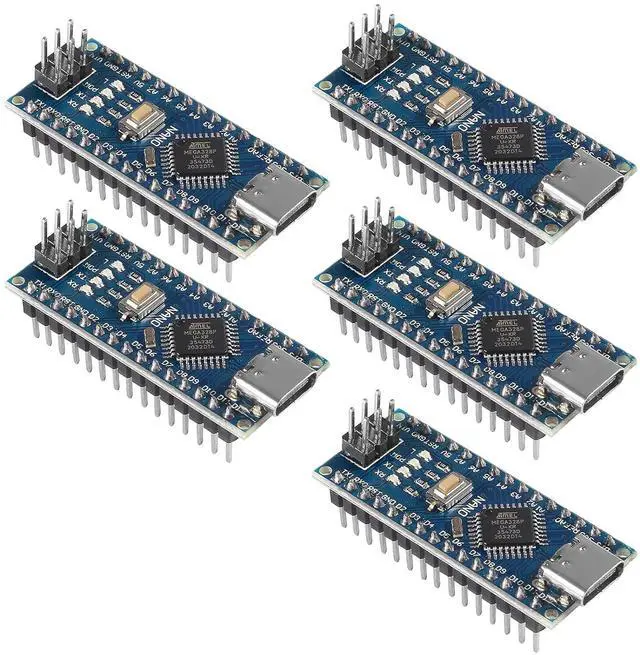

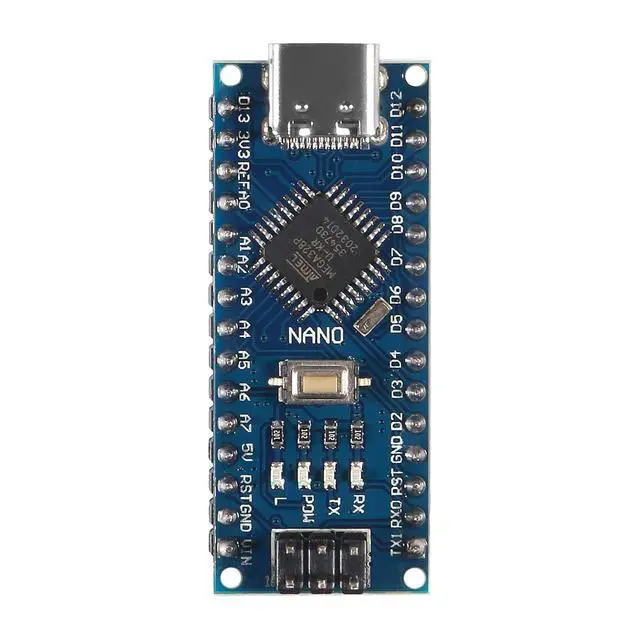

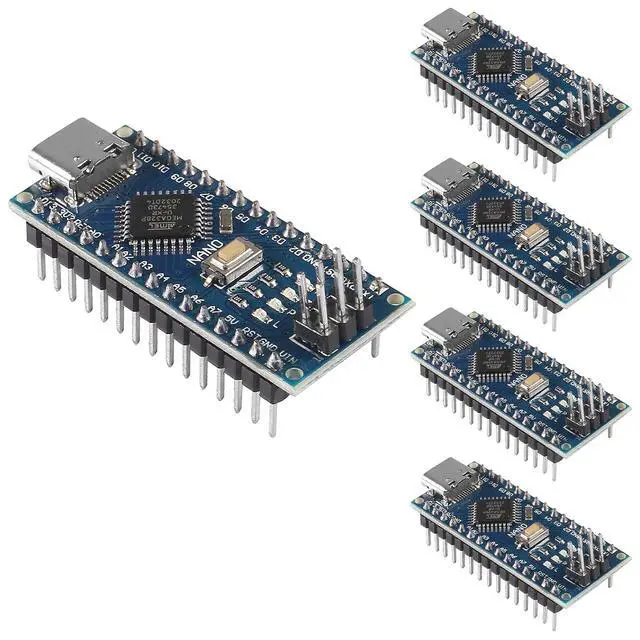

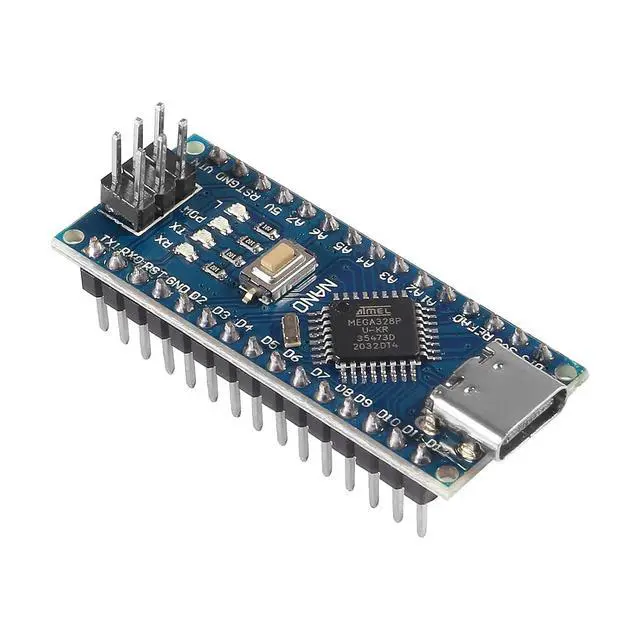

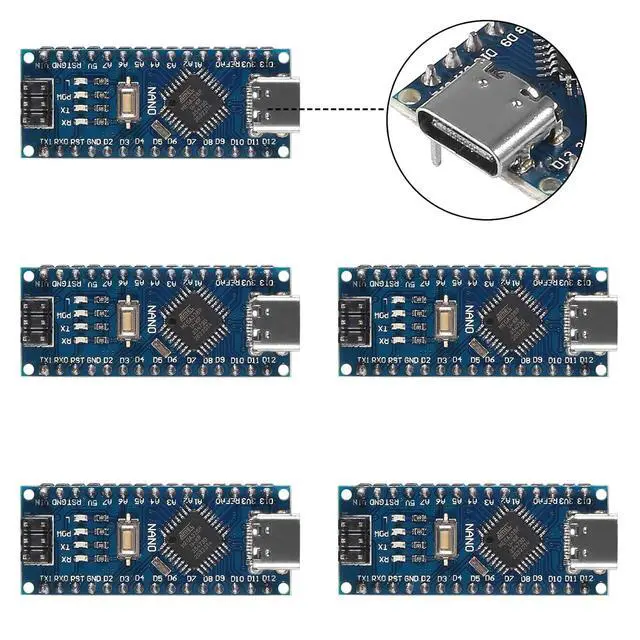

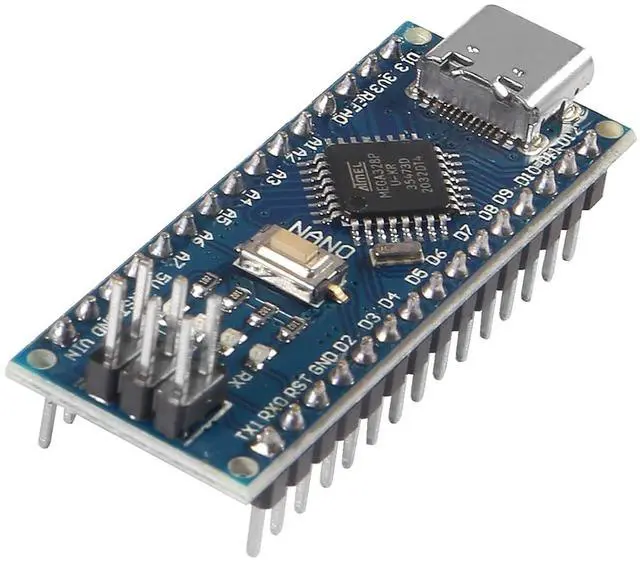

anicorn 5pcs for Nano Board CH340/ATmega+328P Without USB Cable, Type-C Connection Compatible with Arduino Nano V3.0,Welded Module

The Nano can be powered via the Type-C USB connection, 7-12V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.; Support for external 5V~12V DC power supply, Support power supply by 9V battery.; The Nano is using the chips ATmega328P and CH340, Replace FT232RL.; It is a smallest, complete, and breadboard friendly board. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and onboard +5V AREF jumper.

; Uses the CH340G instead of the FTDI FT232RL IC which can improve the transfer speed, increase the stability in windows and solve the issues with FTDI drivers bricking non-original chips, ATMEGA328P offers even more programming and data memory space. It also has a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one side, power, and ground on the other).; Comes with 5packs of Nano V 3.0 Micro Controller Module, each Nano V 3.0 Micro Controller module is equipped with 3pcs pin headers (2pcs 15pin headers +1pcs 6pin headers), no welding needed.
