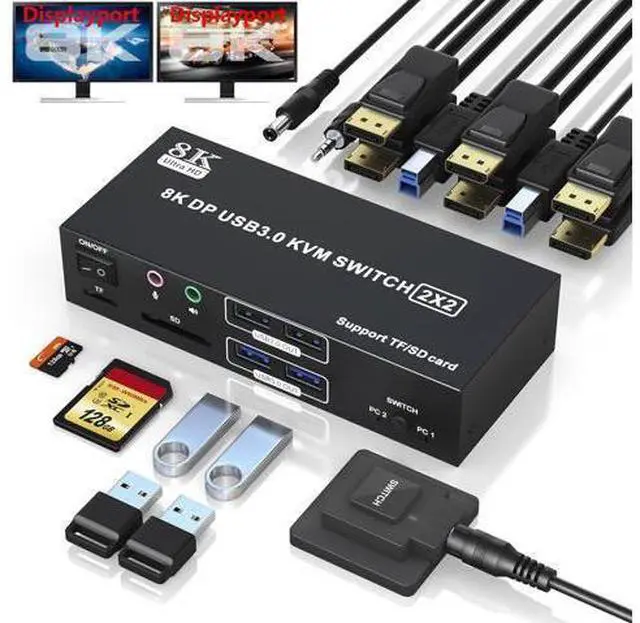

DIXSG 8K@60Hz Dual Monitor Displayport KVM Switch 2 Monitors 2 Computers,4K@120Hz USB3.0 KVM Switch Displayport with Audio Microphone Output and 4 USB Ports, SD/TF Slots, Support Extended & Copy Mode

8K DP 1.4 Dual Monitor KVM Switch DisplayPort 2 computers share 2 monitor Does Everything You Need! 2 computers/laptops share 4 USB devices and 2 monitors, and with extra Audio Microphone output and SD/Micro SD card slot; Supoort DP 1.4 and downward compatible. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
Switching mode: push-button switch and wired remote control; Support for most major operating systems, including Windows, Linux, and Mac. Connection Steps & Notes

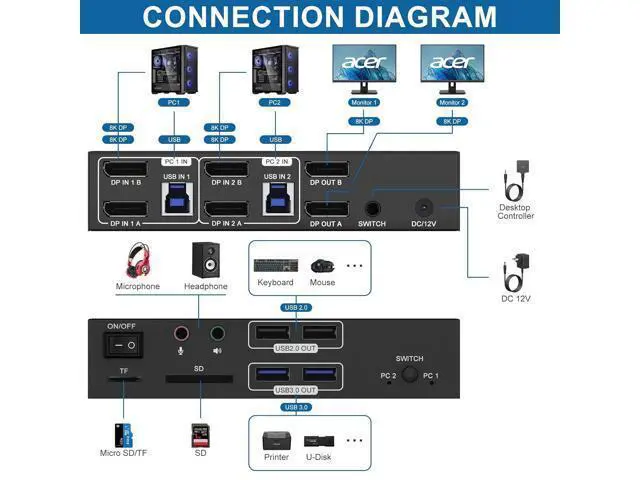

1. Insert the 12V adapter into the KVM;
2. Plug DP cable into the KVM and monitor; (Output) 3. 1)Connect PC1 Firstly (Input) Use 1 DP cable to connect the "DPIN 1 A" input interface and PC1 DP A output interface, Use 1 DP cable to connect the "DPIN 1 B" input interface and PC1 DP B output interface, Use 1 "USB-a to USB-b" USB 3.0 cable to connect the "USB IN 1" input interface and PC1 USB 3.0 interface. 2)Then, Connect PC2 according to the connection steps of PC1.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone/audio port/SD/TF card
Note:
1. Please make sure both of your computer has 2 DP Ports + USB A Port.
2. Please make sure both of your monitors have an DP Port. 3. HDMI to DP or DP to DVI/VGA cable are not recommended. 4.
Note: DP cables are not included 3 Display Modes Extended Display Mirrored Display Spliced Display If you are a designer or illustrator, you can use this mode to see the effect while working. 1)Extended mode can output two different screens and mirror mode can output two identical screens.
Note: If your graphics card has a splicing screen function, you can use the splicing screen mode. 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM. 8K Displayport Switch Ultra HD 8K
Resolution Support: Experience stunning visuals with 8K@60Hz and 4K@120Hz compatibility, perfect for graphic designers, gamers, and professionals who demand high-quality displays.
Note: make sure your computers, monitors, and cables all support 8K and high refresh rates. Display port KVM Equipped with USB Ports and SD/TF card reader Data transfer has never been faster, thanks to the inclusion of USB 3.0 ports that support a maximum transfer rate of 5Gbps. For devices that require a more stable connection, such as mice and keyboards, the USB 2.0 ports provide a reliable and stable connection. The 8K DP USB 3.0 KVM Switch also includes an SD/TF card reader that can read two cards simultaneously, saving time and enhancing workflow for photographers and videographers who need to transfer large files quickly. LED Indicator When switching to which PC, the LED will tell you whether PC1 or PC2 is active. Supports separate audio and microphone output KVM Switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone. Supports key switching You can easily and quickly switch between computers with the push of a button on the control panel.

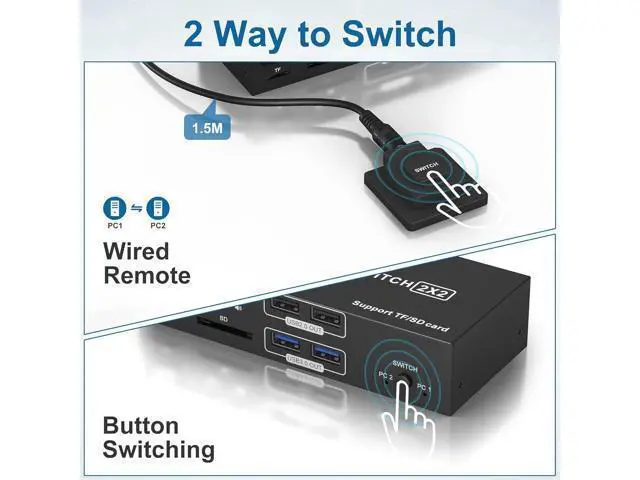

Support wired remote control A push-button controlled switch extension cable is included for easy switching without having to get up when using it. 8K DP 1.4 Dual Monitor KVM Switch DisplayPort 2 computers share 2 monitor Does Everything You Need! 2 computers/laptops share 4 USB devices and 2 monitors, and with extra Audio Microphone output and SD/Micro SD card slot; Supoort DP 1.4 and downward compatible. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );
Switching mode: push-button switch and wired remote control; Support for most major operating systems, including Windows, Linux, and Mac. Connection Steps & Notes
1. Insert the 12V adapter into the KVM;
2. Plug DP cab
