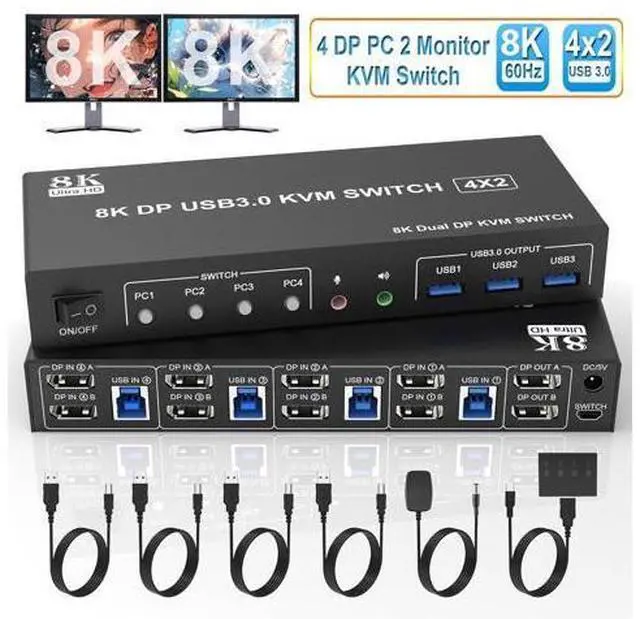

DIXSG 8K@60Hz Displayport USB 3.0 KVM Switch 2 Monitors 4 Computers, DP1.4 KVM Switch Dual Monitor with Audio Microphone Output and 3 USB 3.0 Ports, 4 Port Displayport KVM Switch for 4 PCs 2 Monitors

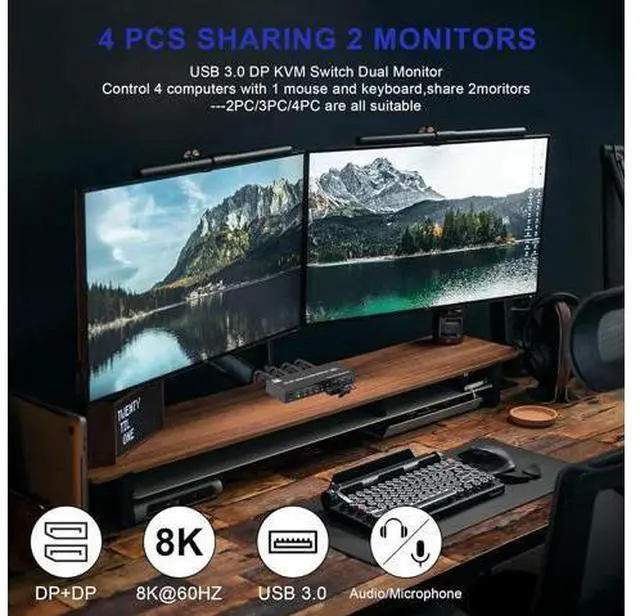

8K DP 1.4 Dual Monitor KVM Switch DisplayPort 4 computers share 2 monitor and 3 USB 3.0 device You can toggle and control any input device at any time with a button switch. Does Everything You Need! 4 computers/laptops share 3 USB 3.0 devices and 2 monitors, and with extra Audio Microphone output; Supoort DP 1.4 and downward compatible. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. );
Switching mode: push-button switch and wired remote control; Support for most major operating systems, including Windows, Linux, and Mac; The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; No complicated installation is required, and non-professionals can easily operate it. 8K HD Resolution This 4 port kvm switch dual monitor supporting high resolution max up to 8K@60Hz, and also supports 4K@60Hz or other lower resolution (Downward Compatible).

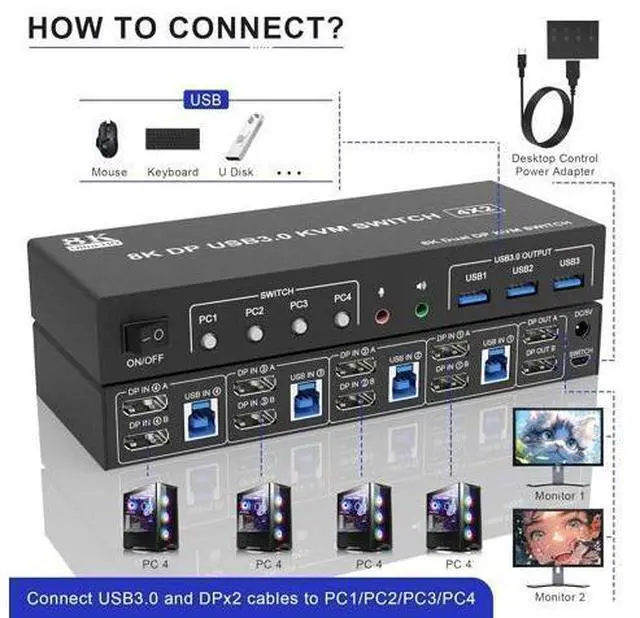

Please kindly Note: Only when both your computer Graphics card, monitor and DP cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first. Connection Steps & Notes
1. Insert the DC/5V adapter into the KVM;
2. Plug the DP cable into the KVM and monitor; (Output)
3. Plug the DP cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input) DP IN1 A + DP IN1 B + USB IN1=PC1 DP IN2 A + DPIN2 B + USB IN2=PC2 DP IN3 A + DPIN3 B + USB IN2=PC3 DP IN4 A + DPIN4 B + USB IN2=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Please Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 DP cables+1 USB cable) connect to the KVM. 2. Before purchasing this DP dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available.
3.

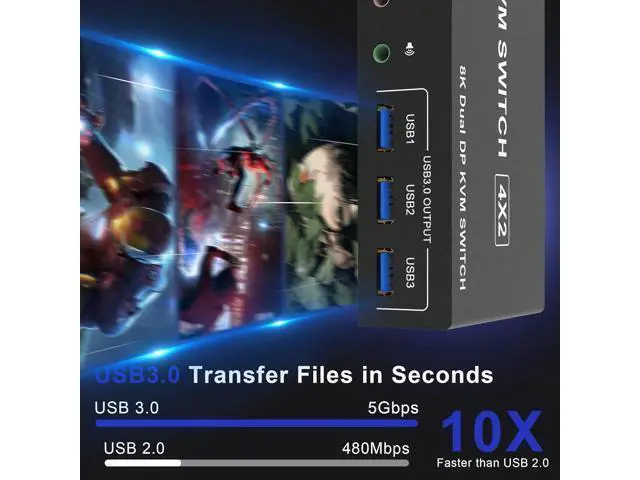

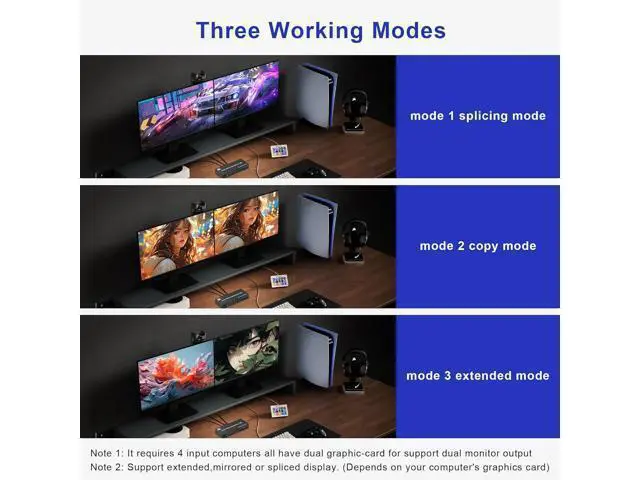

Note: DP cables are not included Equipped with 3 USB 3.0 Ports Supports 5Gbps data transfer speed, can transfer files in Seconds, Much faster than USB 2.0. 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc. 3 Display Modes Extended Display Mirrored Display Spliced Display If you are a designer or illustrator, you can use this mode to see the effect while working. 1)Extended mode can output two different screens and mirror mode can output two identical screens.

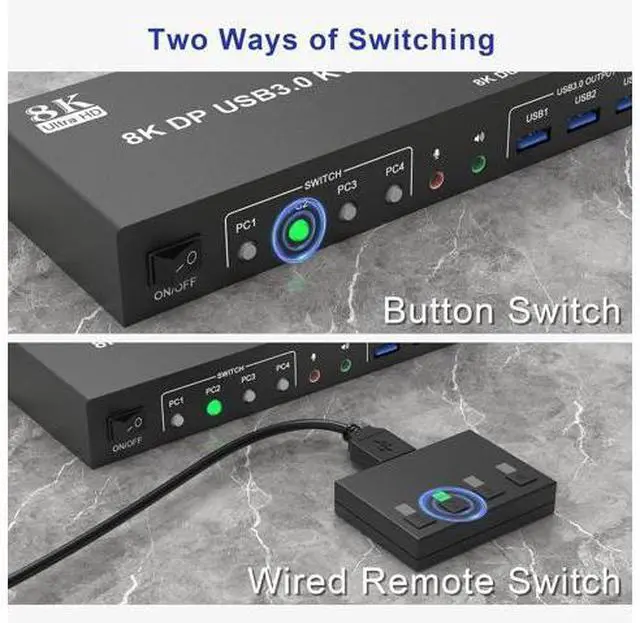

Note: If your graphics card has a splicing screen function, you can use the splicing screen mode. 2) The requirement for this KVM to achieve a dual-screen display is that each PC you connect to has the capability to support a dual or multi-screen display. This has nothing to do with KVM. Supports separate audio and microphone output KVM switch dual monitor 4 port comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone. Switch by Panel button/desktop controller Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).
Please note: This KVM does not support hotkey switching. LED Indicator When switching to which PC, the LED will tell you whether PC1 or PC2 or PC3 or PC4 is active. 8K DP 1.4 Dual Monitor KVM Switch DisplayPort 4 computers share 2 monitor and 3 USB 3.0 device
Features: 4 computers/laptops share 3 USB 3.0 devices and 2 monitors, and with extra Audio Microphone output; Supoort DP 1.4 and downward compatible. Dual monitors output support up to 8K@60Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. );
Switching mode: push-button switch and wired remote control; Support for most major operating systems, includ
