USB 3.0 HDMI + Displayport KVM Switch 2 Monitors 4 Computers, 4K@60Hz Dual Monitor KVM Switch with Audio Microphone Output and 3 USB 3.0 Ports, 4 Port HDMI+DP Monitor Switch for 4 PCs 2 Monitors

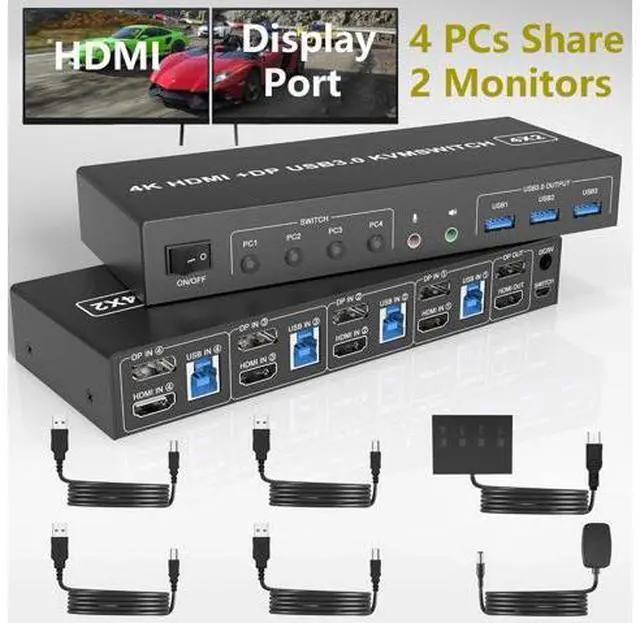

USB 3.0 Dual Monitor 4 Port (DP+ HDMI ) KVM Switch 4K@60Hz- 4 computers share 2 monitors and 3 USB 3.0 devices. This DisplayPort + HDMI KVM Switch 4-Port, you can easily control 4 signal sources at the same time, share the same keyboard and mouse, and share 2 monitors. You can toggle and control any input device at any time with a button switch.
Advantages: 4 computers/laptops share one set of keyboard, mouse and dual monitors, and more USB 3.0 peripherals; 4 Ports Dual displayport KVM switch with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output; Supports DP 1.2 with a transfer rate of 18Gbps; Dual monitors output support up to 4K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. ); Compatible with Windows 11/10/7/2000/XP/Vista, Linux, UNIX, Ubuntu, Fedora, and other systems;
Advanced switching modes: push button and wired remote; The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; No complicated installation is required, and non-professionals can easily operate it.

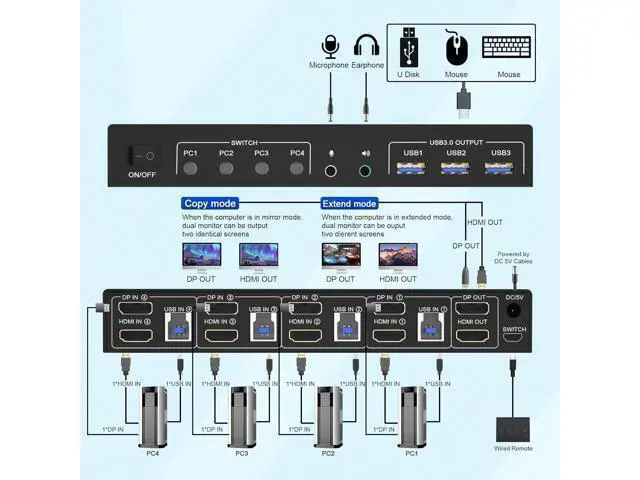

Connection steps:
1. Insert the DC/5V adapter into the KVM;
2. Plug the DP/HDMI cable into the KVM and monitor; (Output)
3. Plug the DP/HDMI cable and USB cable into the KVM and your computer/laptop (DP cables are not included) (Input) DP IN1 + HDMI IN1 + USB IN1=PC1 DP IN2 +HDMI IN2 + USB IN2=PC2 DP IN3 + HDMI IN3 + USB IN3=PC3 DP IN4+ HDMI IN4+ USB IN4=PC4
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Warm TIps:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP/HDMI cables+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. 3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwise, the KVM will not be available.
4.

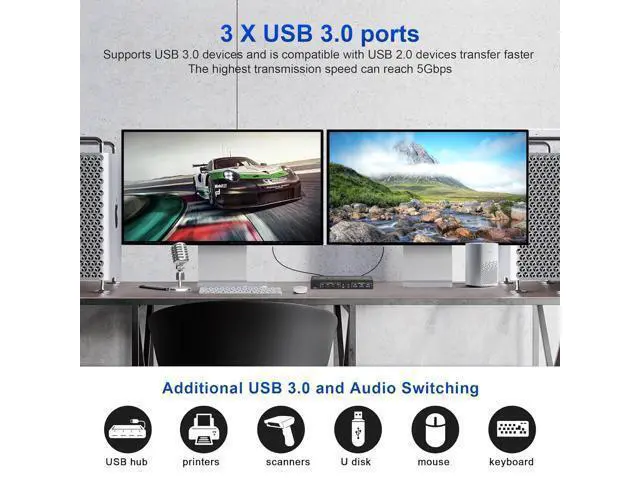

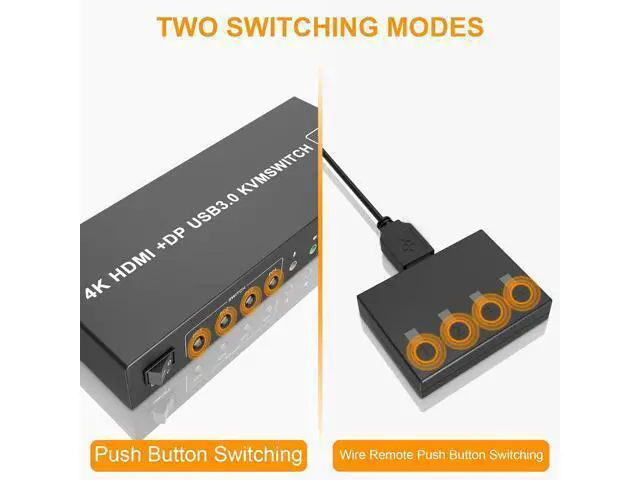

Note: DP/HDMI cables are not included 3 Port USB 3.0 with 5Gbps Supports 5Gbps data transfer speed, can transfer files in Seconds, Much faster than USB 2.0. 3 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc. Supports separate audio and microphone output KVM Switch comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone. 2 monitors 4 computers KVM Support 2 Switching Modes Quickly switch between the 4 computers with just one click of the switch button on the panel or use the wired remote controller (included in the package).

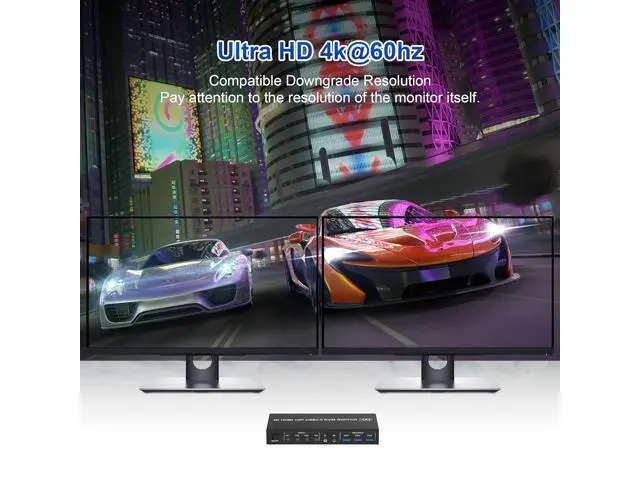

Please note: This KVM does not support hotkey switching. USB 3.0 Dual Monitor KVM Support 4K@60HZ Supports high resolution up to 3840*2160@60Hz and downwards.

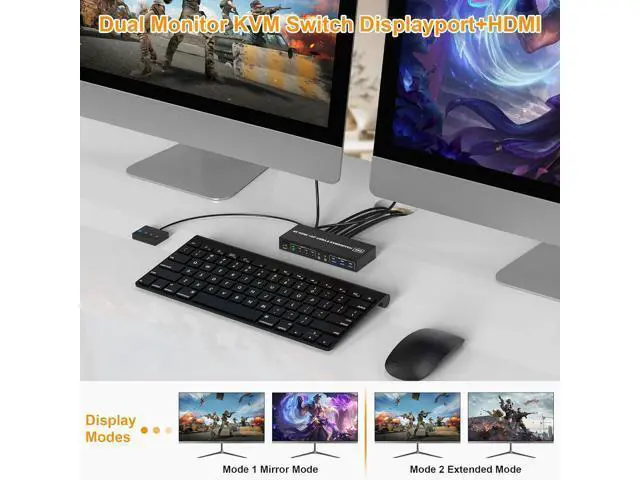

Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first. Support up to 4K@60Hz for extended and mirrored display Supports high resolution up to 4K@60Hz and downwards.
Note: Only when both your computer Graphics card and monitor support 4K@60Hz then you can get 4K@60Hz effect, so if you want the max resolution you have to check your devices first.
Warm Tips: Please
Kindly Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(1 DP/HDMI cables+1 USB cable) connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal. 3. Before purchasing this DP/HDMI dual monitor KVM switch, please make sure that connecting your computer directly to the monitor can work normally, Otherwis
