2 Ports Dual Monitor HDMI KVM Switch 2 in 2 Out, 4K @60Hz KVM Switch HDMI Extended Display 2 Computers 2 Monitors and 4 USB 3.0 Ports with Simulation EDID, Wired Controller, HD-MI 2.0+USB 3.0 Cables

Advantages: 2 computers share a wired/wireless keyboard, mouse and two monitors. Dual monitor output supports extended and mirrored display.

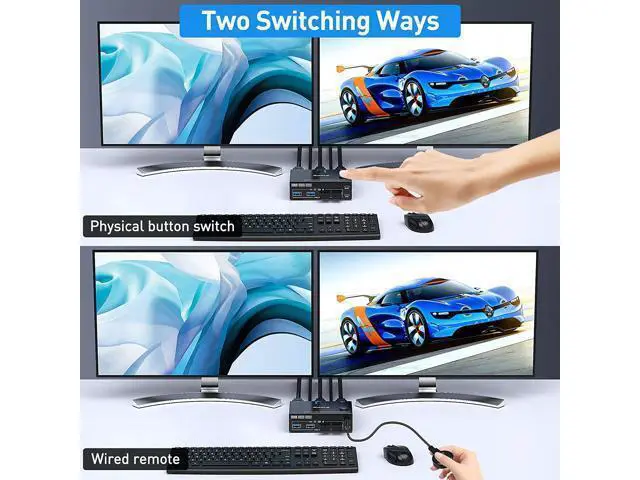

Switching mode: push-button switch and wired remote control. Supports wired or wireless keyboard and mouse. Supports USB 3.0 devices. Cross support for most major operating systems, including Windows, Linux, and Mac Four USB 3.0 ports. Support the highest resolution 4K@60Hz, 1440P@60Hz, downward compatible. Supports HDMI 2.0 and is compatible with HDMI 1.4. If multiple connections are required, the USB hub can be expanded to a USB 3.0 port. Support 4K@60Hz, 2K@120Hz, 3440x1440@60Hz and backward compatible with lower resolutions. KVM Switch 2 Monitors 2 Computers Dual Monitor KVM Installation Guide Precautions (Incorrect connection may cause faults): Each computer must be connected with 2 HD-MI cables and 1 USB A/A cable to keep the keyboard, mouse, and monitor working properly.

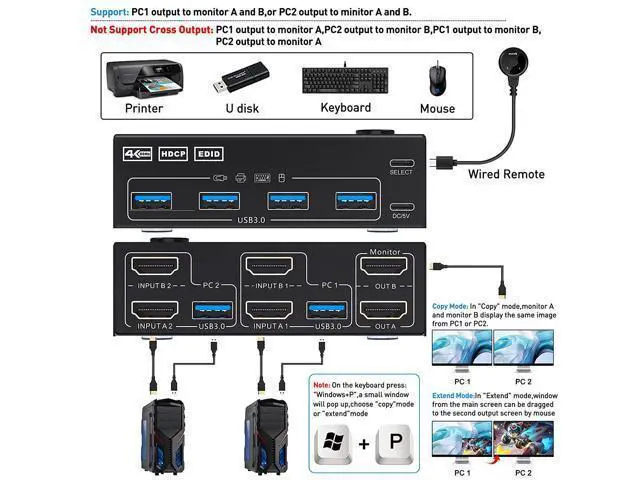

Connection steps: Step
1. Connect 2 x HD-MI cable +1 x USB-A cable to PC 1 and KVM (USB 3.0, INPUT A1, INPUT B1). Step
2. Connect 2 x HD-MI cable +1 x USB-B cable to PC 2 and KVM (USB 3.0, INPUT A2, INPUT B2). Step
3. Connect A 2 x HD-MI cable between the KVM (OUT A, OUT B) and the monitor. Step
4. Connect the keyboard and mouse to the K/M USB port on the KVM. Step
5. Insert the USB 3.0 device into the USB port on the KVM. Step
6. Plug the desktop controller into the SELECT port and remotely switch between PC1 and PC2. * * *Kindly Note * * *

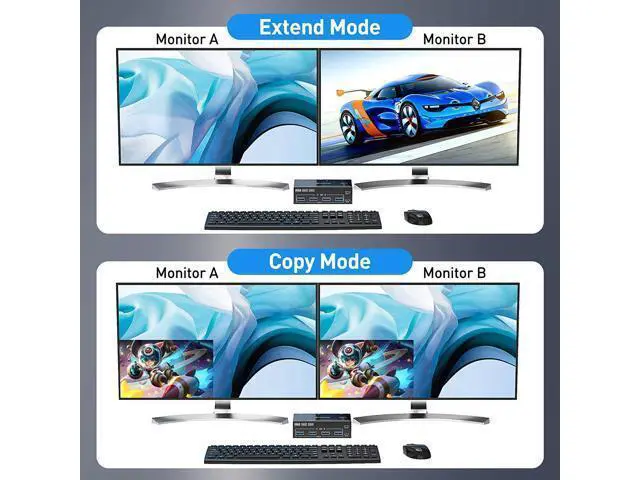

1. After connecting the computer to the monitor using the KVM, set the screen output mode (press Windows+P) on the keyboard and select the output mode in the dialog box that is displayed. Otherwise, only 1 of the two connected monitors has an image.
2. Before purchasing this product, ensure that the computer is directly connected to the monitor to properly display images. Otherwise, the KVM cannot be used. Dual Monitor KVM Switch Two Computers Two Monitors Switch ***Notice*** The premise for this KVM to achieve dual-screen display is that each PC connected must support dual or multi-screen display.
Detection method: Can connect the computer to 2 monitors directly (not via KVM). If both monitors have an on-screen display, the computer supports multi-monitor display.

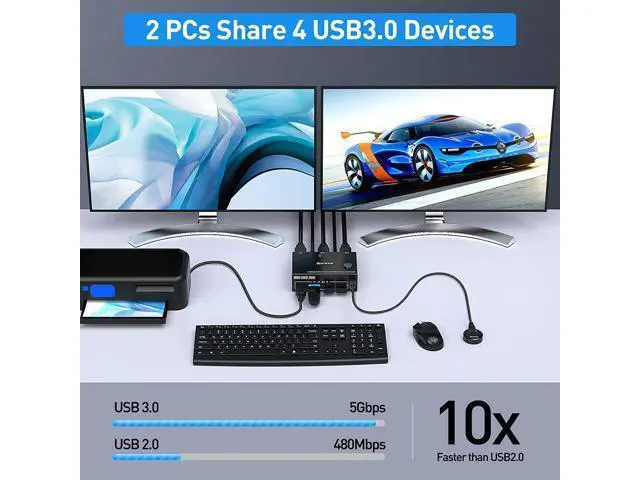

Adapters Might Be Needed: This Dual Monitor KVM Switch requires 2* HDMI input for each computer and 2* HDMI output for monitors. However, most computers especially laptops do not have 2 HDMI output, thus reliable adapters will be needed for non-2 HDMI outputs like VGA, DVI, USB C. Please be aware of this before order! For laptops, this dual monitor KVM switch supports USB C docking stations, but the resolution refresh rate may be limited by the docking station, and may need to connect DC 5V to power the KVM (depending on the docking station). The two monitors can only output the video source from 1 computer (mirror mode or expansion mode). Sharing 4 USB 3.0 ports 4 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc. 4-Port USB 3.0 with 5Gbps Supports 5Gbps data transfer speed, can transfer files in Seconds, Much faster than USB 2.0. Support EDID lock screen USB 3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not change.

DC5V power port (optional) When using a high-power USB device, please plug it in to provide sufficient power. (Power adapter not included) 1 Click Switching 1 of the ways to switch: directly press the button on the machine to switch, simple and convenient.
Desktop controller (Length: 1.52M ) Supports remote switching of desktop controllers for easy cable management. With indicator light (green light).

Specifications

Video Signal HDMI: HDMI
with 4K @60Hz 4:4: 4, HDCP 2.2
USB Data: USB 3.0, up to 5Gbps data transfer rate
Power: High- power of 5V/2A port and 1 SELECT port included.
60Hz: 720×480, 720×576, 1176×664, 1280x720P, 1280
