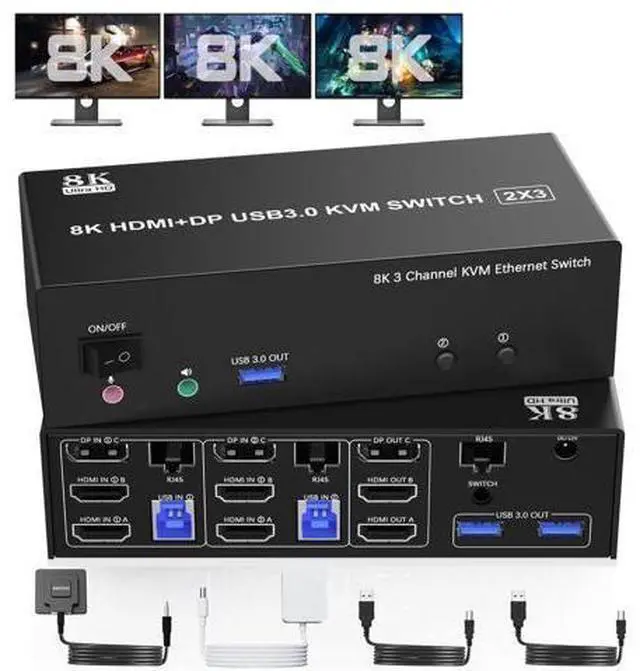

DIXSG KVM Switch 3 Monitors 2 Computers 8K@60Hz 4K@144Hz, 2 HDMI + DisplayPort USB3.0 KVM Switch Triple Monitor for 2 Computer Share 1000Mbps Ethernet, 3 USB 3.0 Ports, Audio&Microphone, Wired Remote

8K@60Hz 4K@144Hz KVM Switch 3 Monitors 2 Computers Sharing 3 Monitor, 3 USB 3.0 Ports, Audio & Microphone, 1000Mbps
LAN Ethernet Features: 1. 8K Triple Monitor KVM Switch allows 2 computers/laptops to share one set of keyboard, mouse, and 3 monitors (2 HDMI+1 DisplayPort)
2. Support HDMI 2.1 &DP 1.4 standards and downward compatibility. 3 monitors output support up to 8K@60Hz 4K@144Hz for extended, mirrored or spliced display(Depends on your computer's graphics card. ) 3.
2 Switching modes: Button switch and wired remote.
4. This triple monitor KVM Switch share 1000Mbps gigabit ethernet between 2 computers, providing Internet access for your laptop. 5. 3 monitor KVM switch equipped with 3 USB 3.0 ports for USB devices, and with extra Audio Microphone output
6. Equipped with a 12V power supply, ensuring stable operation even when high-power devices are connected.

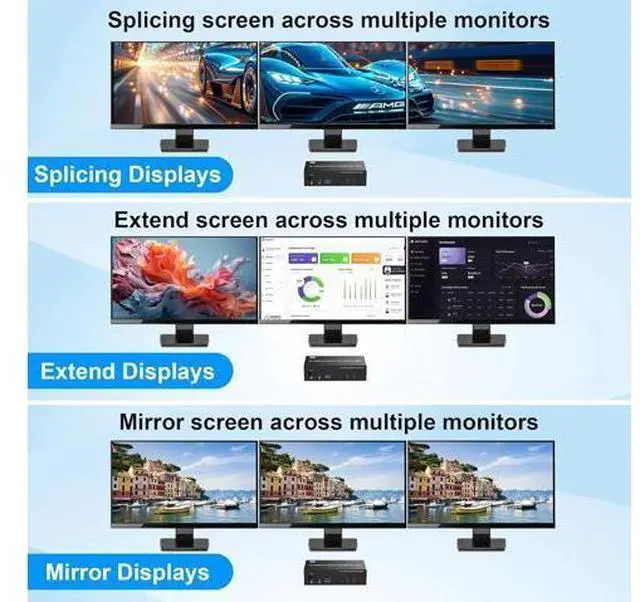

7. Plug and play, compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major OS. Ultra HD 8K@60Hz Triple Monitor KVM Switch Confirms to HDMI 2.1 & DP 1.4 protocol, supports a maximum resolution of 8K@60Hz 4K@144Hz, and is compatible downwards. Only when both your computer Graphics card, monitor and cable support 8K@60Hz then you can get 8K@60Hz effect, so if you want the max resolution you have to check your devices first. 3 Display Modes Extended Display Mirrored Display Spliced Display 1)Extended mode can output three different screens and mirror mode can output three identical screens.

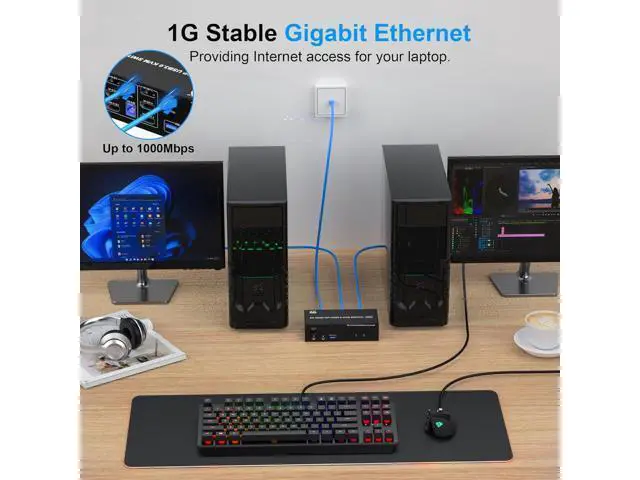

Note: If your graphics card has a splicing screen function, you can use the splicing screen mode. 2) The requirement for this KVM to achieve a triple-screen display is that each PC you connect to has the capability to support a triple-screen display. This has nothing to do with KVM. 3 Monitor KVM Switchfor 2 computers Share 1000Mbps Gigabit Ethernet The KVM Switch 3 Monitors 2 Computers share 1000Mbps stable gigabit Ethernet for 2 computers. The LAN port can provide Internet access for your computers.
Please note: 2 computers share a gigabit network, maximum support for 1000Mbps input, rate dependent on network service provider.

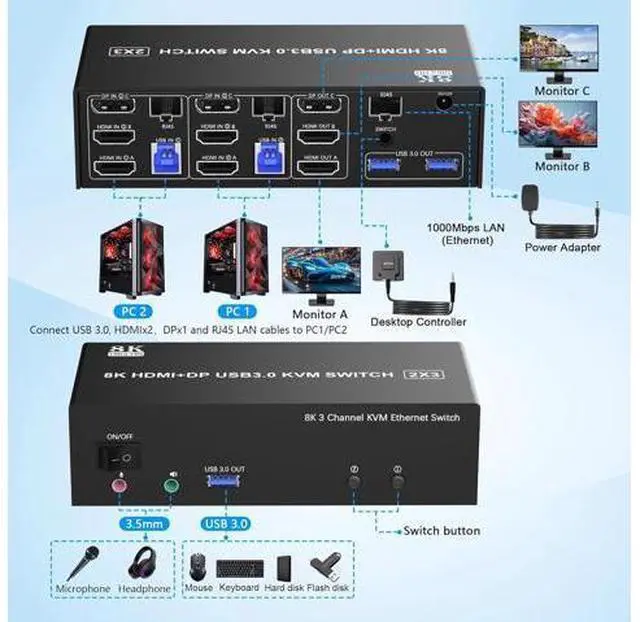

installation steps:
1. Insert the DC/12V adapter into the KVM;
2. Plug the Ethernet RJ45 cable into the KVM switch;
3. Plug the 2*HDMI cable and 1*DisplayPort cable into the KVM switch and monitor; (HDMI OUT A, HDMI OUT B, DP OUT C)
4. Plug the DisplayPort cable, HD-MI cable, RJ45 cable, and USB cable into the KVM switch and your computer/laptop (HDMI and DP cables are not included) (Input) HDMI IN 1A +HDMI IN 1B + DP IN 1C + RJ45 + USB IN 1=PC1 HDMI IN 2A + HDMI IN 2B + DP IN 2C + RJ45 + USB IN 2=PC2 Please check whether HDMI IN 1A, HDMI IN 1B, DP IN 1C, RJ45, and USB IN 1 corresponding, and whether HDMI IN 2A, HDMI IN 2B, DP IN 2C, RJ45 and USB IN 2 are corresponding. Mixed insertion is not supported.
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(2 HDMI +1 DP+USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3.

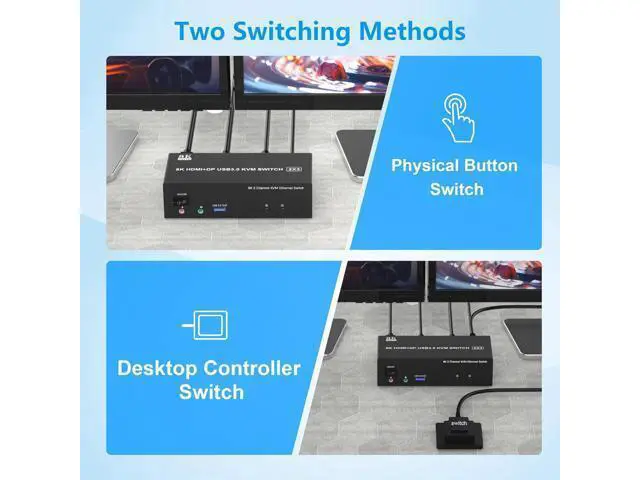

Note: HDMI, DP and Ethernet cables are not included Switch by Panel button Push-button design allows for one-touch switching using a button on the KVM Switch box, eliminating the need to plug and unplug cables frequently, saving space and time. Wired Remote Control Supports wired remote switching for easy cable management, you can switch directly on the desktop, convenient for your life and work LED Indicator When switching to which PC, the LED will tell you whether PC1 or PC2 is active. Audio and microphone output 3 monitors 2 computers KVM comes with a 3.5 mm Audio Jack port with a DAC chip inside, which can be inserted into a 3-segment 3.5 mm earpiece device, and a 3.5 mm microphone interface, which can be inserted into a 3-segment microphone Wha
