DIXSG 8K@60Hz Displayport USB 3.0 KVM Switch 4K@144Hz, DP1.4 Displayport KVM Switch Triple Monitor for 2 Computer Share 3 Monitors, RJ45 Ethernet Splitter 1 to 2, Audio Mic Port and 3 USB 3.0 Devices

8K@60Hz USB 3.0 KVM Switch 3 Monitors 2 Computers 4K@144Hz DP 1.4 Displayport KVM Switch Triple Monitor for 2 PCs Share 3 Monitors, RJ45 Ethernet Splitter 1 to 2, Audio Mic Port and 3 USB 3.0
Devices Advantages: 1, Share one set of keyboard, mouse and 3 monitors (DP+ DP+HDMI) between 2 computers or laptops; 2, Supoort DP 1.4 and downward compatible. 3 monitors output support up to 8K@60Hz for extended, mirrored or spliced display (Depends on your computer's graphics card. ); 3, This KVM Switch share 1000Mbps gigabit Ethernet between 2 computers, providing Internet access for your pc. 4, Cross support major operation systems including Windows, Linux, Mac and more; 5, Switching

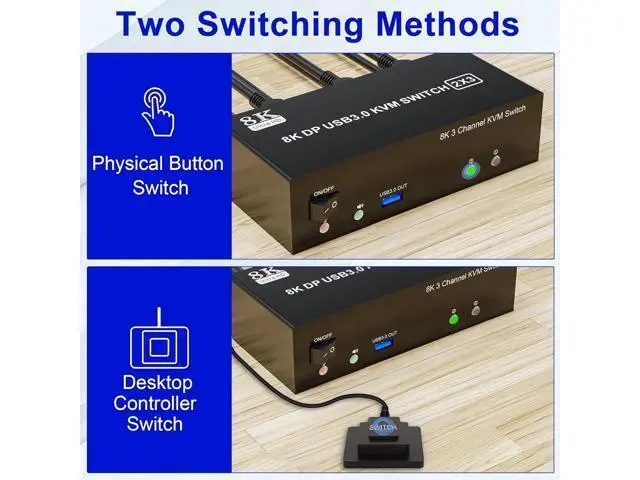

modes: Buttons on the front panel and wired remote; 6 The ports that need to plug in DP/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered; 7, A USB hub can expand the USB 3.0 ports if multiple connections are required, Please use a hub that can provide power. Also an audio microphone output; 8, The upgraded 12V power adapter makes the KVM switch work smoother and provides more stable recognition when connecting high-power USB devices.

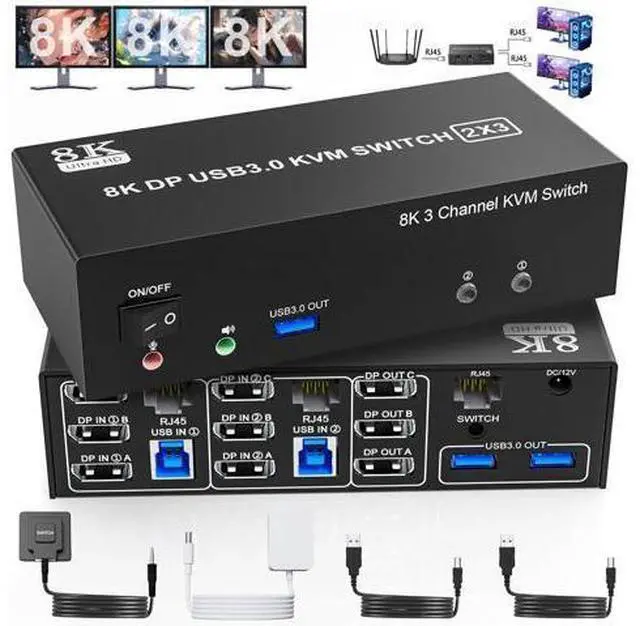

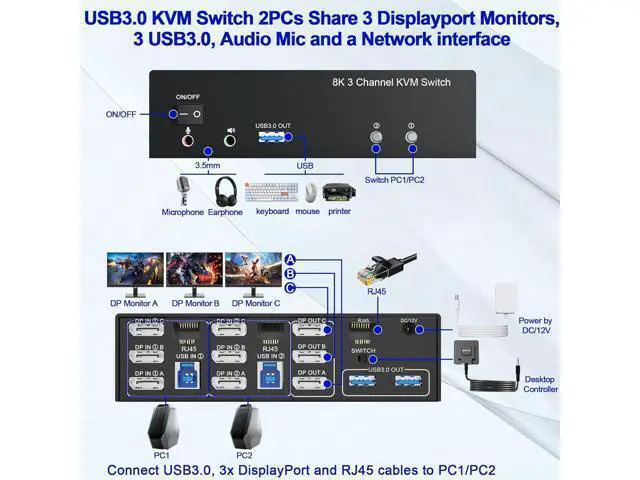

installation steps:
1. Insert the DC/5V adapter into the KVM;
2. Plug the Ethernet RJ45 cable into the KVM switch;
3. Plug the 3*DisplayPort cable into the KVM switch and monitor; (Output)
4. Plug the DisplayPort cable, Splitter Adapter Cable and USB cable into the KVM switch and your computer/laptop (DP cables are not included) (Input) DP IN 1A +DP IN 1B + DP IN 1C + USB IN 1 + RJ45=PC1 DP IN 2A + DP IN 2B + DP IN 2C + USB IN 2 + RJ45=PC2 Please check whether DP IN 1A, DP IN 1B, DP IN 1C, and USB IN 1 corresponding, and whether DP IN 2A, DP IN 2B, DP IN 2C and USB IN 2 are corresponding. Mixed insertion is not supported.
5. Insert the mouse and keyboard into the KVM switch
6. If needed, you can connect a microphone and audio port
Note:
1. Most of the reasons why only one video output works is because of incorrect connection. Please make sure each PC has(3 DP+USB cable) connect to the KVM.
2. If the input USB 3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.
3.
Note: DP cables and Ethernet RJ45 cables are not included Displayport KVM Switch Triple Monitor RJ45 Ethernet Splitter 1 to 2: This RJ45 Ethernet Splitter KVM Switch can split one network cable into two outputs. Two computers can be connected to the Internet at the same time. Supports 1000Mbps Gigabit Ethernet performance. RJ45 Ethernet Splitter connector extender is compatible with Cat67 Cat6 Cat5 Cat5e network ethernet cable. DP KVM Switch Triple Monitor Ultra HD 8K@60Hz: 3
Monitors KVM Switch DisplayPort: support resolution up to 8K@60Hz/4K@144Hz, and backward compatible with lower resolution.
Note: that you can only get 8K if both your computer's graphics card and monitor support 8K. 3 USB 3.0 Ports Audio &

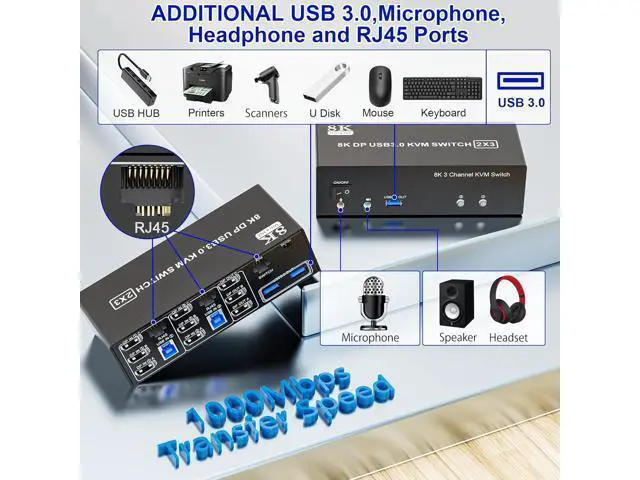

Microphone Output: Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0 / 1.1 devices. 3 Monitor KVM also supports separate audio and microphone output. Plug and play without any software needed. 3 USB 3.0 Ports Triple monitor KVM switches with 3 integrated USB 3.0 ports that can recognize keyboard, mouse, printer, scanner and other USB devices. Supports ultra-fast USB 3.0 data transfer up to 5Gbps, backward compatible with USB 2.0 / 1.1 devices.
Audio & Microphone Output: 3 Monitor KVM also supports separate audio and microphone output. Plug and play without any software needed. You only need one set of keyboard and mouse to control all the monitors, and it supports splicing, extend and mirror displays mode.
Splicing Mode: Computer host outputs splice screens on 3 monitors.
Extended Mode: PC host in output 3 different images on 3 monitors.
Copy Mode: Computer host outputs 3 identical images on 3 monitors.
(Note: Please make
