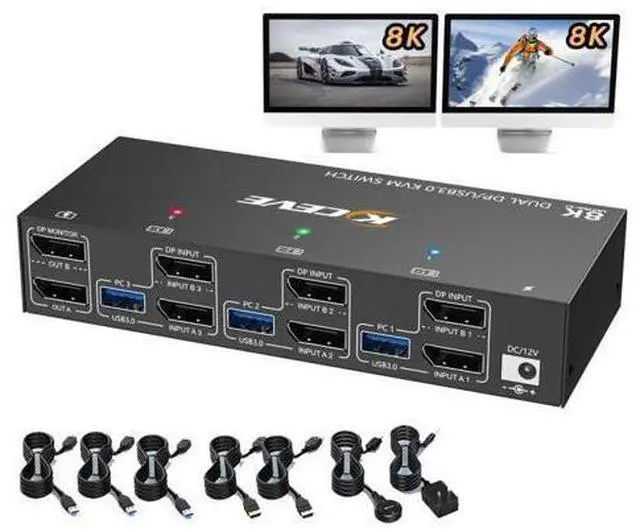

Dual Monitor Displayport KVM Switch 8K@30Hz 4K@144Hz, USB 3.0 KVM Switches 3 Computers 2 Monitors Displayport 1.4 with 4 USB 3.0 Ports for USB Devices, DP Monitor Switch for 3 PCs, with Wired Remote

Important: For desktops or laptops without a 2*DP port, you must use it with a reliable adapter or USB-C docking station Supports USB-C to DP converter and USB-C docking station Please check your computer's configuration before placing an order. How to set the output mode?

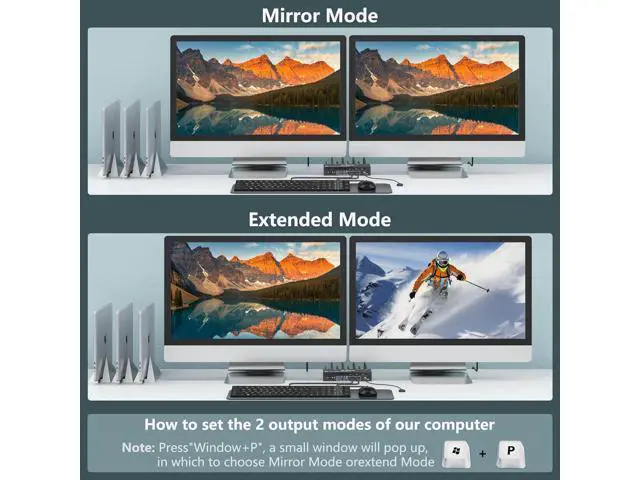

Windows operating system: Press the keyboard shortcut "Windows+P" and then select "Extension" or "Mirror" at the bottom
Mac OS: Set [Mirror
Mode]: Select [Apple icon] [System Preferences], click [Display] [Arrange], and then turn on [Mirror Display]; Set [Advanced

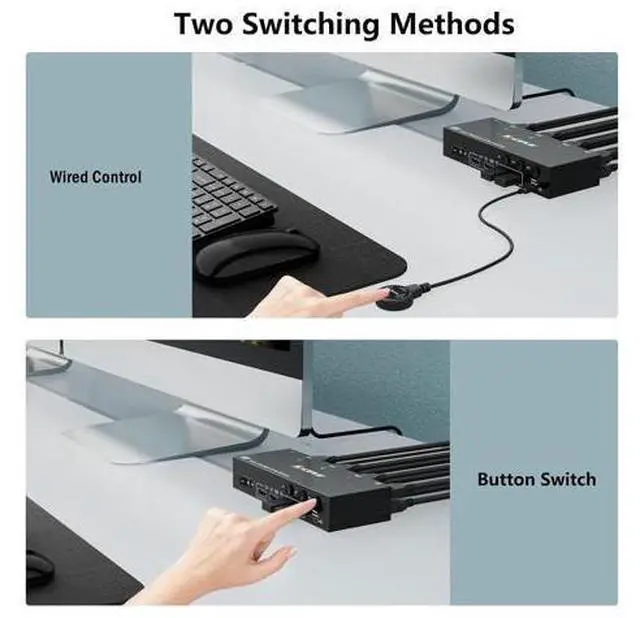

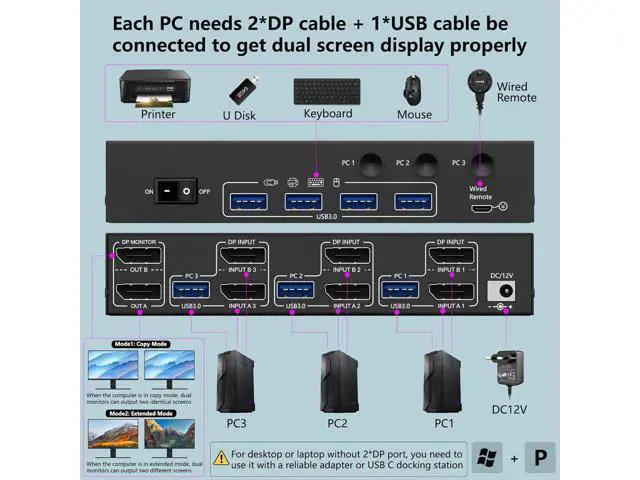

Mode]: When [Mirror Display] is disabled, the "Advanced Mode" can be reached. 8K@30Hz Dual Monitor Displayport USB 3.0 KVM Switch Each computer needs 2*DisplayPort +1* USB cable to connect the 2-monitor KVM switch, OUT A, OUT B, to 2 monitors. If the USB 3.0 input ports are not connected or are incorrectly connected, the USB output device will not be recognized. About the Resolution Using conversion cables or converters may cause the monitor resolution to decrease, flicker, or not work (depending on quality and compatibility). It is recommended to use 8K DP 1.4 cables with a maximum length of 1.5 meters. Clean workplace The desk is not cluttered, you can enjoy the tidy workspace. Physical button and wired remote control. You can press the button on the control panel or use the wired remote control (included) to switch computers. Dual Monitor Displayport KVM Switch with Broad Compatibility The DisplayPort KVM Switch supports many types of input devices, such as compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry, and more It is widely used for offices, multimedia teaching, meeting rooms, etc.

Specifications

Name Dual Monitor Displayport 3 Computer 2 Monitors KVM Switch DP

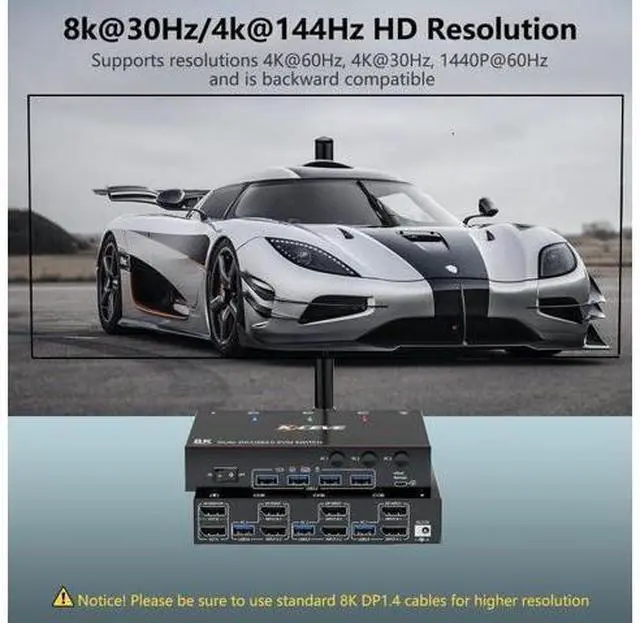

Resolution Range: Up to 8K@30Hz, 4K@144Hz /120Hz/60Hz; 1440P@144Hz/120Hz/60Hz; 1080P@240Hz /165Hz/144Hz/120Hz/60Hz

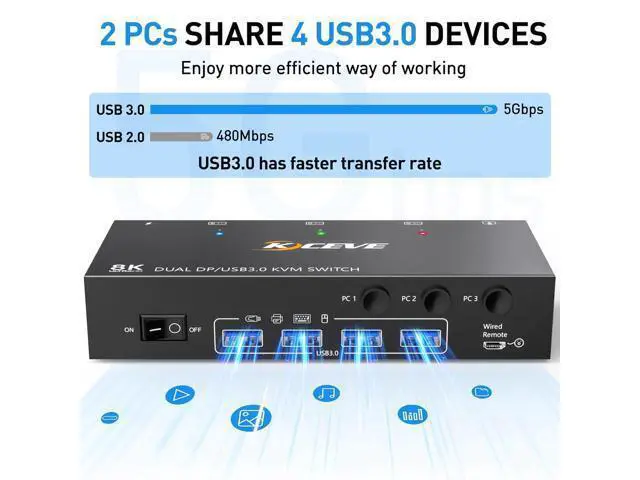

Three display modes: Advanced mode, mirror mode and splice mode. DP cable Displayport 1.4 cable < 1.5 m 4 USB 3.0 ports USB 3.0 data transfer, which is ten times higher than USB 2.0, and the data transfer speed can reach 5Gbps

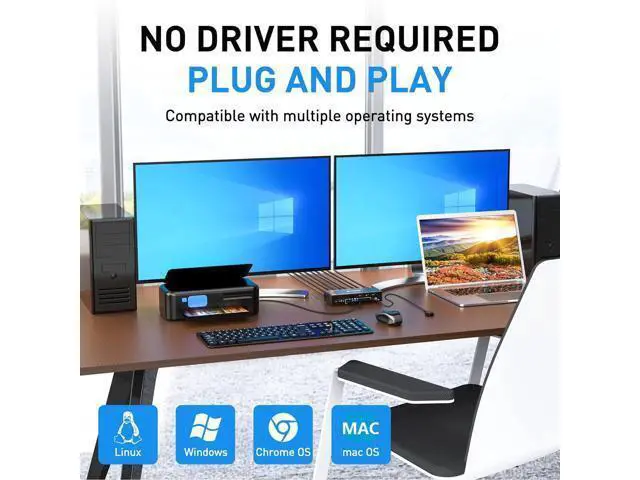

Switching modes: Physical button and wired remote control System Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major operating systems Power supply DC12V adapter (included) Item dimensions L x W x H 16.5 x 3 x 6.5 centimeters
Item weight: 1002 g

Specifications

Name Dual Monitor Displayport 3 Computer 2 Monitors KVM Switch DP
Resolution Range: Up to 8K@30Hz4K@144Hz /120Hz/60Hz; 1440P@144Hz/120Hz/60Hz; 1080P@240Hz /165Hz/144Hz/120Hz/60Hz
Three display modes: Advanced mode, mirror mode and splice mode. DP cable Displayport 1.4 cable < 1.5 m 4 USB 3.0 ports USB 3.0 data transfer, which is ten times higher than USB 2.0, and the data transfer speed can reach 5Gbps
Switching modes: Physical button and wired remote control System Compatible with Windows, Linux, Mac, Unix, Ubuntu, Raspberry and most other major operating systems Power supply DC12V adapter (included) Item dimensions L x W x H 16.5 x 3 x 6.5 centimeters
Item weight: 1002 g
