WISDUM Wireless HDMI Video Transmitter and Receiver 5G 4k 200M HDMI KVM Extender 1080P Display for Meeting Camera Laptop PC To TV HDTV

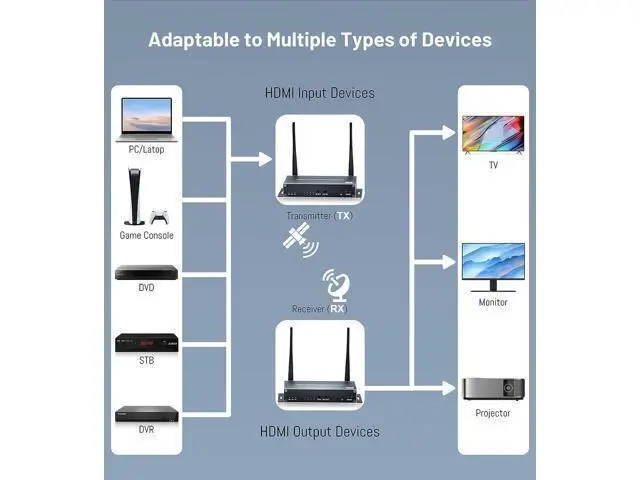

- 656Ft(200m) Line Of Sight Transmission: This wireless HDMI extender wirelessly sends HDMI A/V signals up to 656 feet(200m) through line-of-sight environments; works with most HDMI-equipped devices, including blu-ray players, set-top boxes, AV receivers, cable/satellite boxes,and computer systems.
- 2.4GHz/5.8Ghz Dual Band Atennas,Stronger and More Stable Signal: 5.8GHz dual antenna for strong signal broadcast and long distance transmission.Thanks to the 5.8GHz dual antennas,the delay of this device is very low,only 0.12s,which is very suitable for conference presentations,home theather and live broadcast transmission needs.

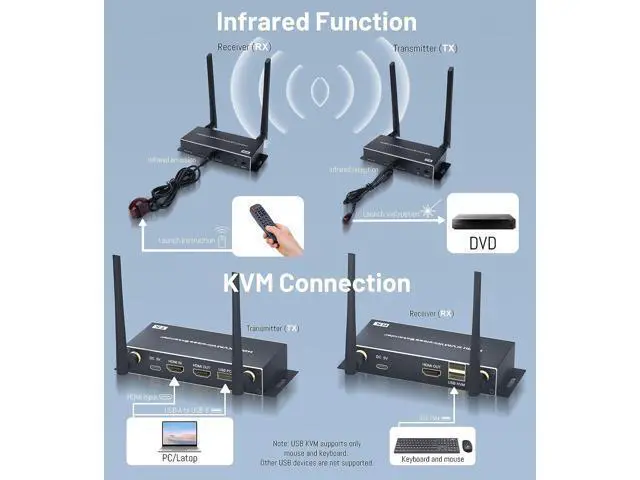

- Built in IR Remote Control: This wireless hdmi transmitter and receiver built-in IR signal extension feature allows you to control the playback device remotely. Imagine you have a DVD player in your media room and a TV in your living room, while you are in the living room, you can still use your DVD remote to control the DVD player with IR CONTROL EXTENSION function
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
200m 4K Wireless HDMI Video Transmission Wireless TV HDMI Transmitter Receiver ( TX + RX ) With IR WIFI Antenna Extender Kit Description: Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source such as PC/HDTV to display devices includes HDTV/HD Monitor over the 5.8GH z band, with very low latency. It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments. This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
Features: Effective
Range: 656ft (200 meters no obstruction);
Audio sampling rate: 32kHz, 44.1 kHz and 48kHz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD;
Video resolution: up to 720P, 1920*1080P@60Hz, 4K@30Hz, 4K@60Hz
(YUV 4:2: 0);
Anti-interference frequency: 5.8 GHz;
Radio Frequency power: 13dbm;
Male to male: Unicast, one TX to one RX applicataion;
Male to female: Splitter mode, one TX to N RX application;
Female to male: Switch mode, N TX to N RX application; Wide band
Infrared control: unidirectional 20~60 KHz IR romote control; Support transmitter with one HDMI loop out; Support keyboard and mouse (KVM) remote control; Support 3. mm Jack audio transmission function;
Low latency: Less than 60 ms;
Compressed mode: H. 264 technology;
No cable: between sender (TX) and receiver (RX);
Video standard: compliance with HDMI 1.4 b and HDCP 1.4 standard;
High compatibility: match many kinds of display devices;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play Simple to install, plug and play How to work? 1. Please follow the

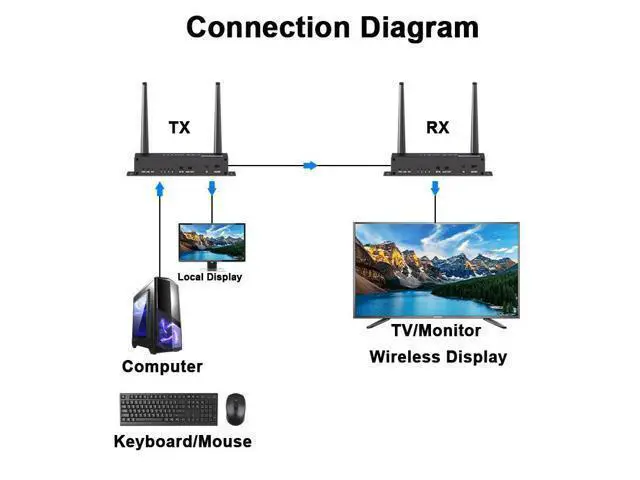

installation steps: (One
TX To One RX):
Note: Please pair RX to TX before first using. Only the first pairing is required. Automatically connect after the second time.
1. Switch TX & RX to SW mode, power them 2. Connect a HDMI cable's one end to RX's HDMI OUT, the other end to TX's HDMI IN to pair them. 3. When both STA light, then pair is done. 4. Then remove the HDMI Cable between them, restore the previous connection. 2. Please follow the
installation steps: (One
TX To Multiple RXs) Note: Please pair every new RX to TX before first using. Only the first pairing is required. Automatically connect after the second time.
1. Switch TX & RX to SW mode, power them 2. Connect a HDMI cable's one end to RX's HDMI OUT, the other end to TX's HDMI IN to pair them. 3. When both STA light, then pair is done. 4. Then remove the HDMI Cable between them, restore the previous connection. Then connect TX/RX with HDMI devices, you will get multiple same screens. 3. If you have any question, please do contact us.
Thanks Trouble shooting: Contact our customer service for installation guide. Make sure power adapter is working fine by checking the power led in the front of the unit.
Audio Sync Issue: The sound should be from receiver. Do not directly connected to the source.
Power Issue: Please make sure the DC plug is secure in the units
Signal Issue: Our extenders use 5.8GHZ Channel. Please make sure your home WiFi is not on the same channels.
IR issue: 1, Check if the IR emitter head is secured over the center of the IR window of source device. This position maybe discrepant if you use different sources, try to adjust the position if the signal is weak. 2, The control signal will be better when your controller is pointed at the IR receiver head directly. 656Ft (200m)
Line Of Sight Transmission: This wireless HDMI extender wirelessly sends HDMI A/V signals up to 656 feet (200m) through line-of-sight environments; works wi
Features: Effective
Range: 656ft (200 meters no obstruction);
Audio sampling rate: 32kHz, 44.1 kHz and 48kHz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD;
Video resolution: up to 720P, 1920*1080P@60Hz, 4K@30Hz, 4K@60Hz
(YUV 4:2: 0);
Anti-interference frequency: 5.8 GHz;
Radio Frequency power: 13dbm;
Male to male: Unicast, one TX to one RX applicataion;
Male to female: Splitter mode, one TX to N RX application;
Female to male: Switch mode, N TX to N RX application; Wide band
Infrared control: unidirectional 20~60 KHz IR romote control; Support transmitter with one HDMI loop out; Support keyboard and mouse (KVM) remote control; Support 3. mm Jack audio transmission function;
Low latency: Less than 60 ms;
Compressed mode: H. 264 technology;
No cable: between sender (TX) and receiver (RX);
Video standard: compliance with HDMI 1.4 b and HDCP 1.4 standard;
High compatibility: match many kinds of display devices;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; plug and play Simple to install, plug and play How to work? 1. Please follow the
installation steps: (One
TX To One RX):
Note: Please pair RX to TX before first using. Only the first pairing is required. Automatically connect after the second time.
1. Switch TX & RX to SW mode, power them 2. Connect a HDMI cable's one end to RX's HDMI OUT, the other end to TX's HDMI IN to pair them. 3. When both STA light, then pair is done. 4. Then remove the HDMI Cable between them, restore the previous connection. 2. Please follow the
installation steps: (One
TX To Multiple RXs) Note: Please pair every new RX to TX before first using. Only the first pairing is required. Automatically connect after the second time.
1. Switch TX & RX to SW mode, power them 2. Connect a HDMI cable's one end to RX's HDMI OUT, the other end to TX's HDMI IN to pair them. 3. When both STA light, then pair is done. 4. Then remove the HDMI Cable between them, restore the previous connection. Then connect TX/RX with HDMI devices, you will get multiple same screens. 3. If you have any question, please do contact us.
Thanks Trouble shooting: Contact our customer service for installation guide. Make sure power adapter is working fine by checking the power led in the front of the unit.
Audio Sync Issue: The sound should be from receiver. Do not directly connected to the source.
Power Issue: Please make sure the DC plug is secure in the units
Signal Issue: Our extenders use 5.8GHZ Channel. Please make sure your home WiFi is not on the same channels.
IR issue: 1, Check if the IR emitter head is secured over the center of the IR window of source device. This position maybe discrepant if you use different sources, try to adjust the position if the signal is weak. 2, The control signal will be better when your controller is pointed at the IR receiver head directly. 656Ft (200m)
Line Of Sight Transmission: This wireless HDMI extender wirelessly sends HDMI A/V signals up to 656 feet (200m) through line-of-sight environments; works wi
