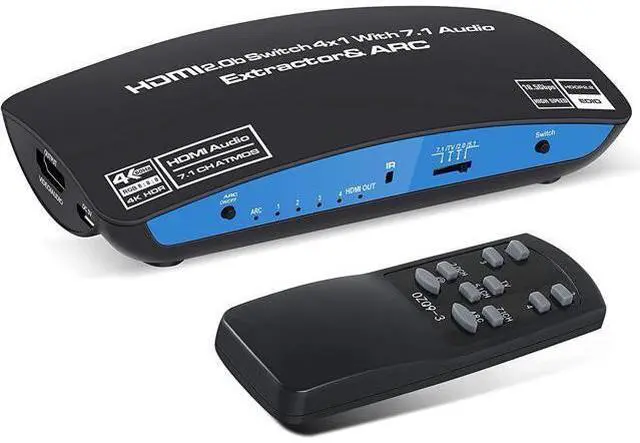

4K@60Hz HDMI Switch 4x1 with 7.1 Audio Extractor, WISDUM 4 Port HDMI2.0b Switch Box with HDMI Atmos 7.1CH/ Optical 5.1CH/3.5mm Audio Out, HDMI Selector Switch with Remote

4 In 1 Out
HDMI Audio Switch: HDMI switch 4-port can distribute up to four HDMI input sources to one HD display, solving your multiple HDMI device issue. At the same time, you can easily add external speakers, amplifiers, sound bars, and receivers to your movie/game system through HDMI ( 7.1 CH audio)/optical/ 3.5 mm ports.
NOTE: Not 1 in 4 out HDMI splitter!!! HDMI 7.1CH Atmos/Optical 5.1CH / 3.5 mm 2.0CH
Audio Extractor: Extracts audio from the HDMI signal to HDMI 7.1 Atmos audio, 3.5 mm stereo audio and Optical Toslink SPDIF audio.
Support audio format: D-o-l-b-y Digital/ Atmos 7.1CH, Dobly TrueHD, DTS: X, DTS Digital, DTS-HD Master, Dobly/ DTS 7.1 / 5.1, PCM 7.1 / 5.1 / 2.0. This HDMI optical audio extractor also support HDMI ARC (Audio Return Channel), so our 4x1 HDMI audio extractor can bring you high-quality sound quality, as if you are on the scene. 4K 60Hz HDMI
Audio Extractor Switch: This HDMI 2.0 b switch 4 in 1 out adopts the latest chips, the max resolution can up to 4K@60Hz, also support HDR 10, HDCP 2.2, RGB
8:8: 8, 36bit deep color and Dobly 7.1 Atoms/ Plus D audio. 18.5G bps/600MHz max bandwidth of this HDMI switch with audio out can compatible for PS3/ PS4/ PS5, Xbox 360/ One, HDTV, Blu-Ray Player. Clearer and more delicate display effects, giving you a visual feast and an excellent gaming experience.
Four Audio Mode Switch Settings: This 4 port HDMI 2.0 b audio switch box have TV, 2.0 CH, 5.1CH, 7.1CH four kinds of audio mode options. 3.5 mm AUDIO OUTPUT supports 2CH, PCM, LPCM stereo audio; OPTICAL SPDIF OUTPUT supports 2CH, PCM, 5.1CH Dobly Digital, 5.1 Digital Surround, Dobly TrueHD, DTS-HD; HDMI 7.1 AUDIO OUTPUT supports 2CH, PCM, LPCM 5.1CH, Dobly 7.1CH ATMOS.
(NOTE: This HDMI audio switch can't decode only pass through the audio formats. ) Switch Easily by
Remote Control: You can easily switch HDMI source what you want by this IR remote control or by the switch button of our HDMI sound extractor selector switch. (This HDMI switch with audio extractor NOT support AUTO-SWITCH. )

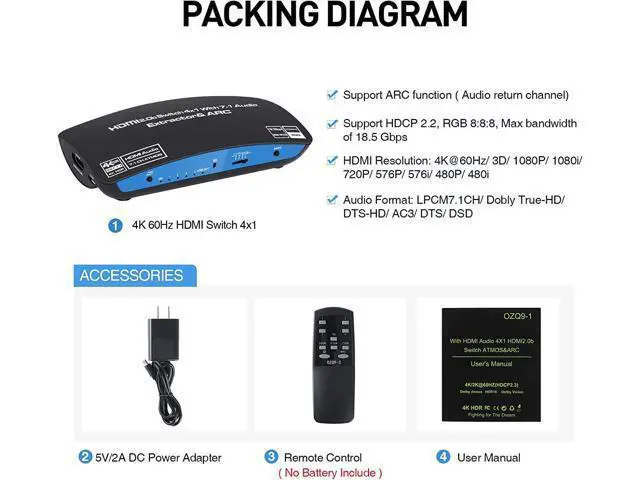

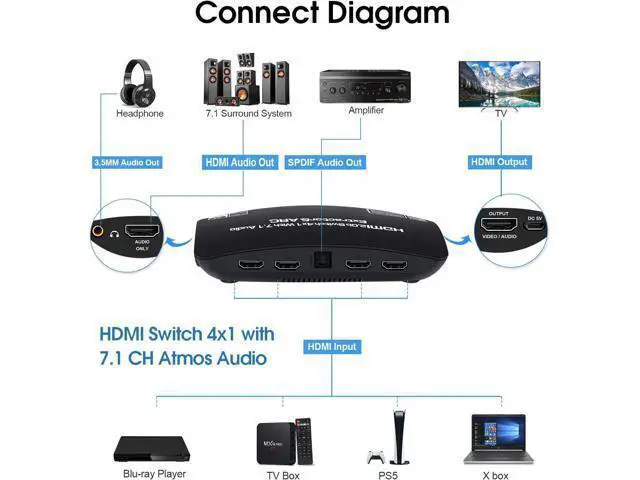

PACKAGE: 1*4K 60Hz HDMI Switch 4x1; 1*5V/2A DC Power Adapter; 1* Remote Control; 1*User Manual. 4K@60Hz HDMI Switch 4 in 1 output with HDMI Audio( 7.1CH ATMOS)/SPDIF Optical/ 3.5 Audio Extractor This HDMI Switch 4x1 with audio extractor can connect up to 4 HD Source to 1 HDMI Display, and extracts audio from the 4K HDMI signal to HDMI 7.1 atmos audio, optical fiber or stereo audio and send it to an external speaker or soundbar.
Support Four audio modes: 7.1CH / 5.1CH / 2.0CH /pass-through (PASS) HDMI
Input and Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS: X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1 / 5.1, PCM 7.1 / 5.1 / 2.0
HDMI Audio Out: Dobly Digital/Atmos 7.1CH, Dobly TrueHD, DTS: X, DTS Digital, DTS-HD Master, Dobly /DTS 7.1 / 5.1, PCM 7.1 / 5.1 / 2.0 Optical
Audio Out: Dobly Digital / DTS Digitial 5.1CH, PCM 2.0 3.5 mm

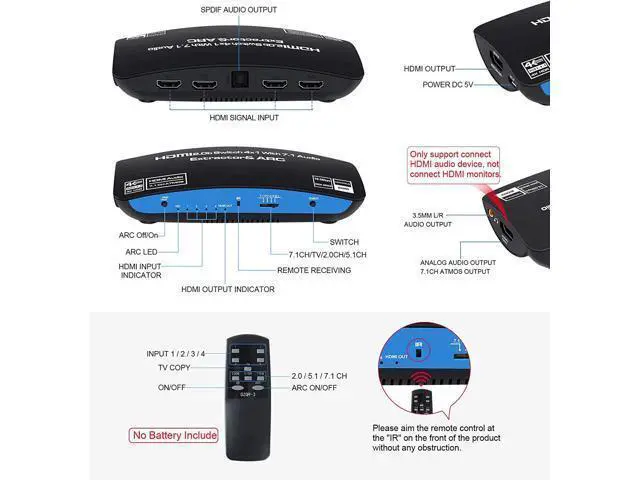

Audio Out: PCM 2.0 Easy Switch to What You Want by Remote Maximum Remote Control is 8 Meters Switch between HDMI input 1-4
Select Four audio modes:
Power: Turn ON/ OFF the power

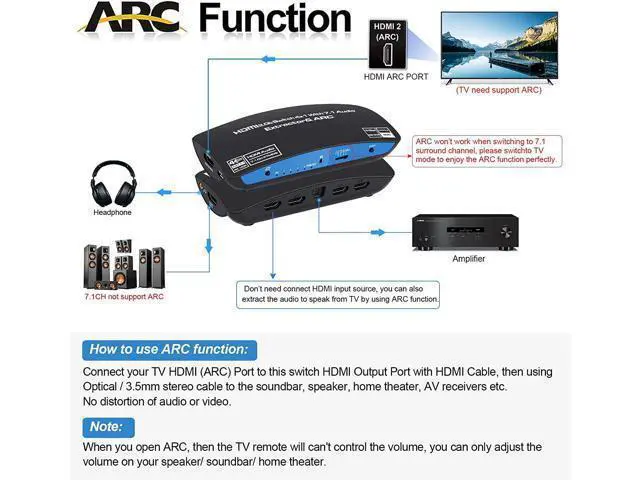

ARC: Turn ON/OFF ARC function FEATURES Support Max resolution 4K@60Hz Support 7.1 ATMOS audio out Support HDCP 2.2, HDMI 2.0 b, RGB
8:8: 8, HDR10 2

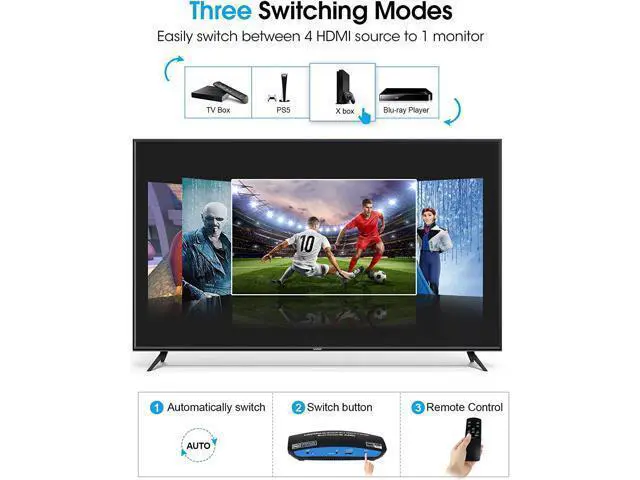

Way Easy Switch: Manual
Switch: Press the "select" button on the box, choose the input you want.
IR Remote Switch: Aim your remote switch at the IR receiver box and easily select the HDMI input. PACKAGE INCLUDED 1 x 4K 60Hz HDMI Switch 4x1 1 x 5V/2A DC Power Adapter 1 x Remote Control 1 x User Manual 4K@60Hz & Ultra HD Resolution Built-in high performance latest chip, supports 4K@60 3D, 1080P@24/50/60Hz/120Hz and also back compatible with lower resolution. supports HDMI 2.0, HDCP 2.2 / 1.4, HDR10, Dolby vision, 3D, provide you with transfer rates up to 18Gbps and backward compatible with all previous HDMI standards. bringing you an ultra-high-definition visual feast, no loss of picture and sound quality.
Please Note: If you want to output 4K signal, it is recommended to use 4K hdmi 2.0 standard cable. The length of HDMI compatible
