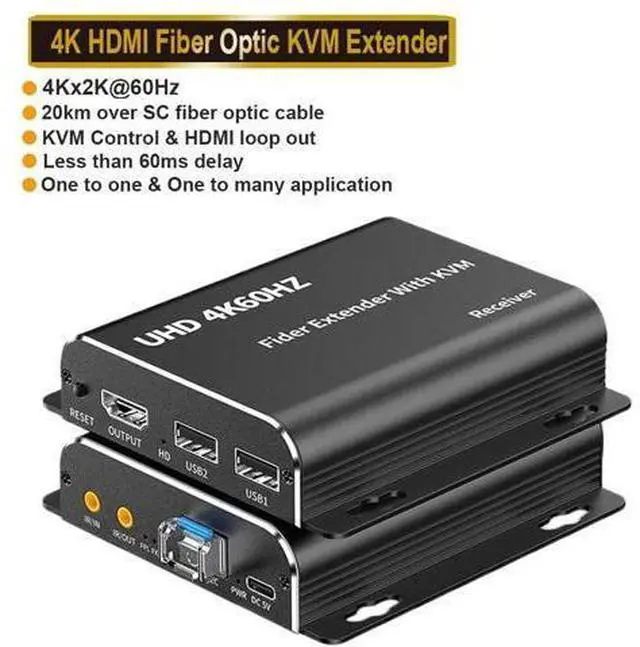

WISDUM 4K 60Hz HDMI KVM Fiber Optic Extender Converter 1080P 120Hz 20Km HDMI Optical USB KVM Extender Video Audio Transmitter

4K 60Hz HDMI to

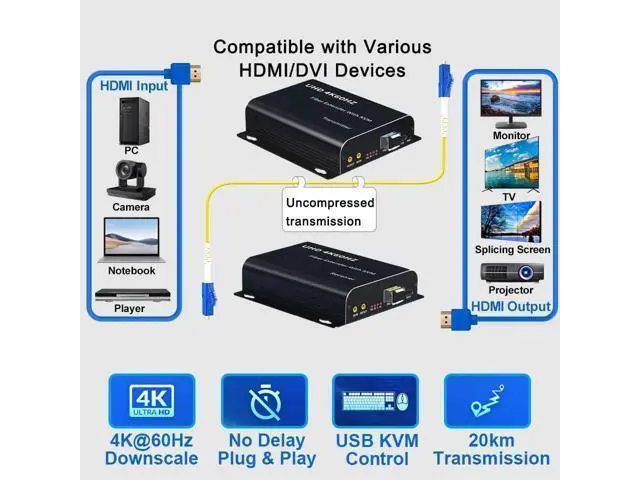

Fiber Optic Converter Description: HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC fiber optic cable, it support high resolution up to 3840x2160@60Hz, 1080P@120Hz. It also supports Remote KVM Control, Bi-directional IR control and HDMI loop out function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. 20Km 4K@60Hz HDMI Fiber Optic USB KVM Extender Video Transmitter Receiver HDMI Loop Over LC Fiber Cable for PS4 PS5 DVD PC To TV
Monitor Features: Long
range transmission: up to 20 km over a single-mode/Multi-mode LC fiber optic cable;
Video resolution: 480P, 720P, 720i, 1080i, 1920*1080P@60/120Hz, 4K@30/60Hz;
Audio Format: DTS-HD/Dolby-true HD/LPCM 7.1 /DTS/DSD; Uncompressed, No loss, No delay;
Infrared control: Bi-directional 20~60 KHz IR romote control;
KVM Control: supports remote USB KVM control by keyboard & mouse;
HDMI Loop Out: The transmitter with one HDMI loop output;
Video standard: compliance with HDMI 2.0 b and HDCP 2.2 standard;
Built-in automatic adjustment system: make the image smooth, clear and stable;
Built-in ESD protection system: make transmission much safer. Perfect hdmi extension adapter for large homes, factories, construction sites, data control centers etc; Plug and
Play: Simple to install. 1080P 120Hz HDMI Extender HDMI Over Fiber Converter 4K@60HZ Video Optical Transceiver LC Single Mode 20km Multimode10G SFP

Specifications

: Video Standards----------HDMI 2.0 b; HDCP 2.2 Maximum pixel clock------600MHz Maximum data rate-------18Gbps Resolution ------3840X2160P@60Hz Connector-----HDMI-A Fiber type Fiber interface--------------- LC Connector Transmission distance--------0~20 km over single/multi-mode fiber Fiber Type---------- ------------------ Single Mode Wavelength--------------------1310nm 1510nm Interface Bandwidth--------------18Gbps Other Power supply-----The power adapter: DC 5V/2A Power dissipation------MAX 3W
Temperature-------Operating: -5 centigrade ~ +70 centigrade
Humidity-------Operating: 5% ~ 90%
Dimension-------104*98*23mm Package: HDMI extender
Fiber transmitter: 1 pcs HDMI extender
Fiber receiver: 1 pcs
LC SFP Module: 2 pcs
USB data cable: 1 pcs
Power adapter: 2 pcs
User manual: 1 pcs 4K@60Hz HDMI KVM Fiber Optic Extender 20km long distance transmission
Resolution: 4K@30/60Hz, 1080P@60/120Hz HDMI Loop out USB KVM Remote Control IR Bi-Directional Remote Control Newest Uncompressed Technology For 0 km to 20km, There are no loss and Zero delay between HDMI fiber transmitter and HDMI fiber receiver through Newest Uncompressed Technology. USB KVM Remote Control HDMI fiber optical extender with 2 x USB 2.0 port, it could supports wireless or wired Keyboard and mouse to remote control HDMI input source, Note: the USB port not support USB camera, USB flash driver, printer etc. HDMI Loop out The transmitter have a HDMI local output, it is easy to know what is situation in far end when it is used to Security Monitoring System. High resolution and High refresh rate The resolution is up to 480P, 576P, 720P, 1080i, 1920x1080@60Hz, 1920x1080@120Hz, 3840x2160@30Hz, 3840x2160@60Hz etc. 20km long distance transmission HDMI fiber kvm extender could transmit HDMI video audio signal up to 20km/ 12.5 miles over single-mode or Multi-mode fiber cable.
Note: The standard package is with single-mode LC SFP module. IR Bi-Directional Remote Control Two ways Infrared control, it is easy to control HDMI signal by yourself. HDMI Fiber optic extender provides extension of HDMI video audio signal long distances over one LC fiber optic cable, it support high resolution up to 3840x2160@60Hz, 1080P@120Hz. It also supports Remote KVM Control, Bi-directional IR control and HDMI loop out function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security. Lo
